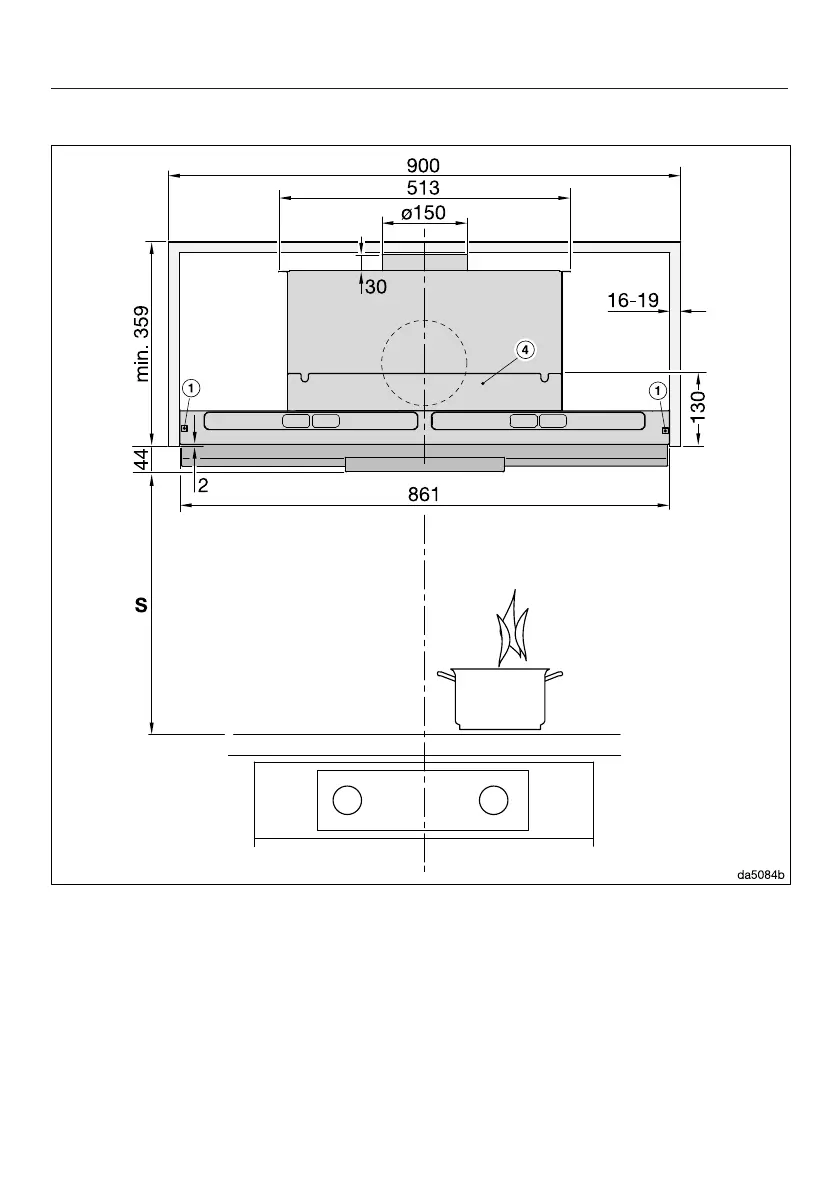

Diagram 2: DAS8930 in a 900mm wide cabinet.
The drawing is not to scale
See diagram 1 for side view
Footnotes for diagrams 1 to 2:
a
The mounting brackets are suitable for cabinets with wall thicknesses from 16
to 19mm.
b
The ducting can also be connected at the back.
c
Cut-out for extraction mode or for recirculation mode with conversion kit
DUU150
