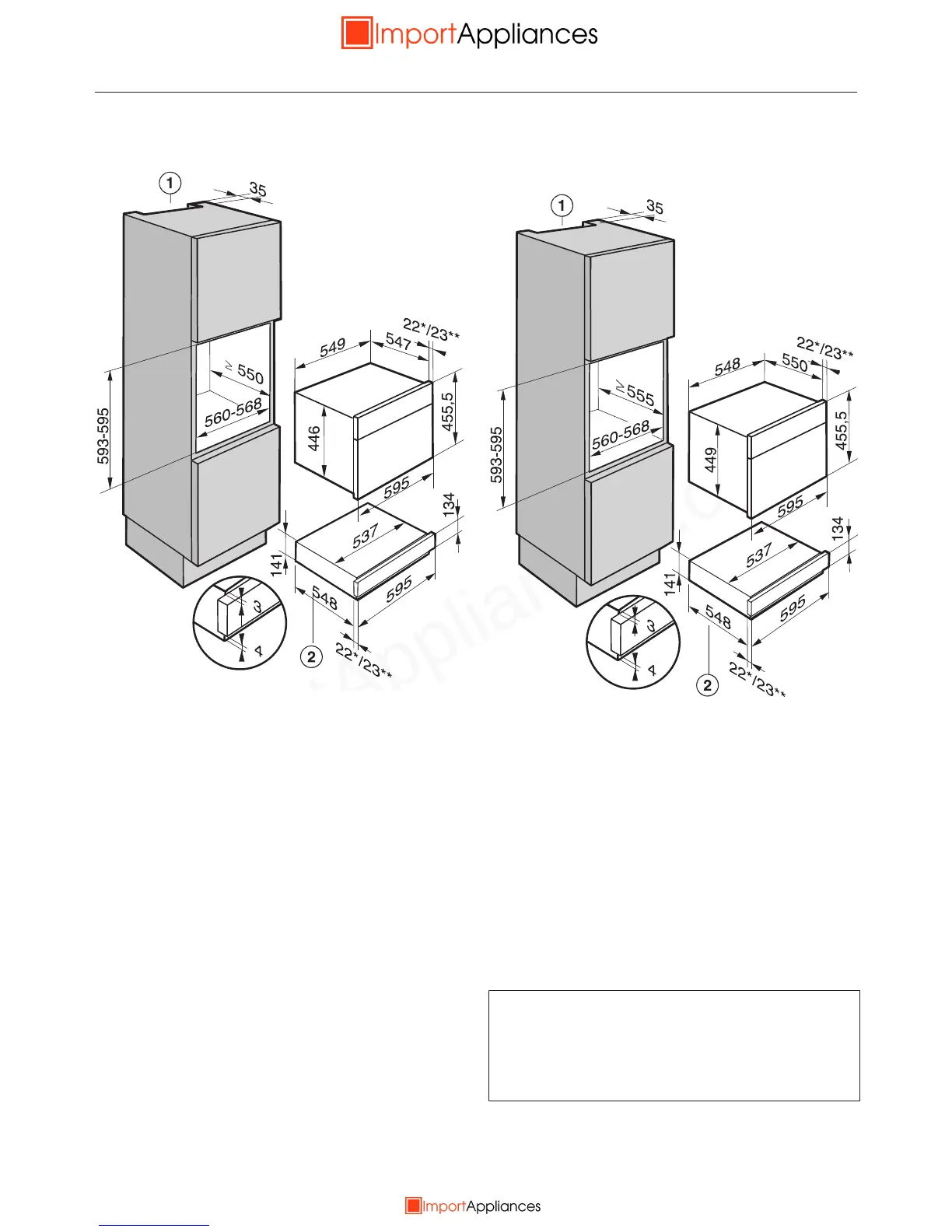

Building-in dimensions
42
EVS with DGC6300 / DGC6400
a
Ventilation cut-out required when in-
stalled with a steam combination
oven
b
Building-in dimension including
mains supply cable plug connector
Mains connection cable
L=2200mm
*Glass front / **metal front
EVS with DGC6500 /
DGC6600 / DGC680x
a
Ventilation cut-out required when in-
stalled with a steam combination
oven
b
Building-in dimension including
mains supply cable plug connector
Mains connection cable
L=2200mm
*Glass front / **metal front
For the DGC 6805 cut-outs are re-
quired for the water inlet and drain
hoses (see DGC 6805 installation in-
structions).
