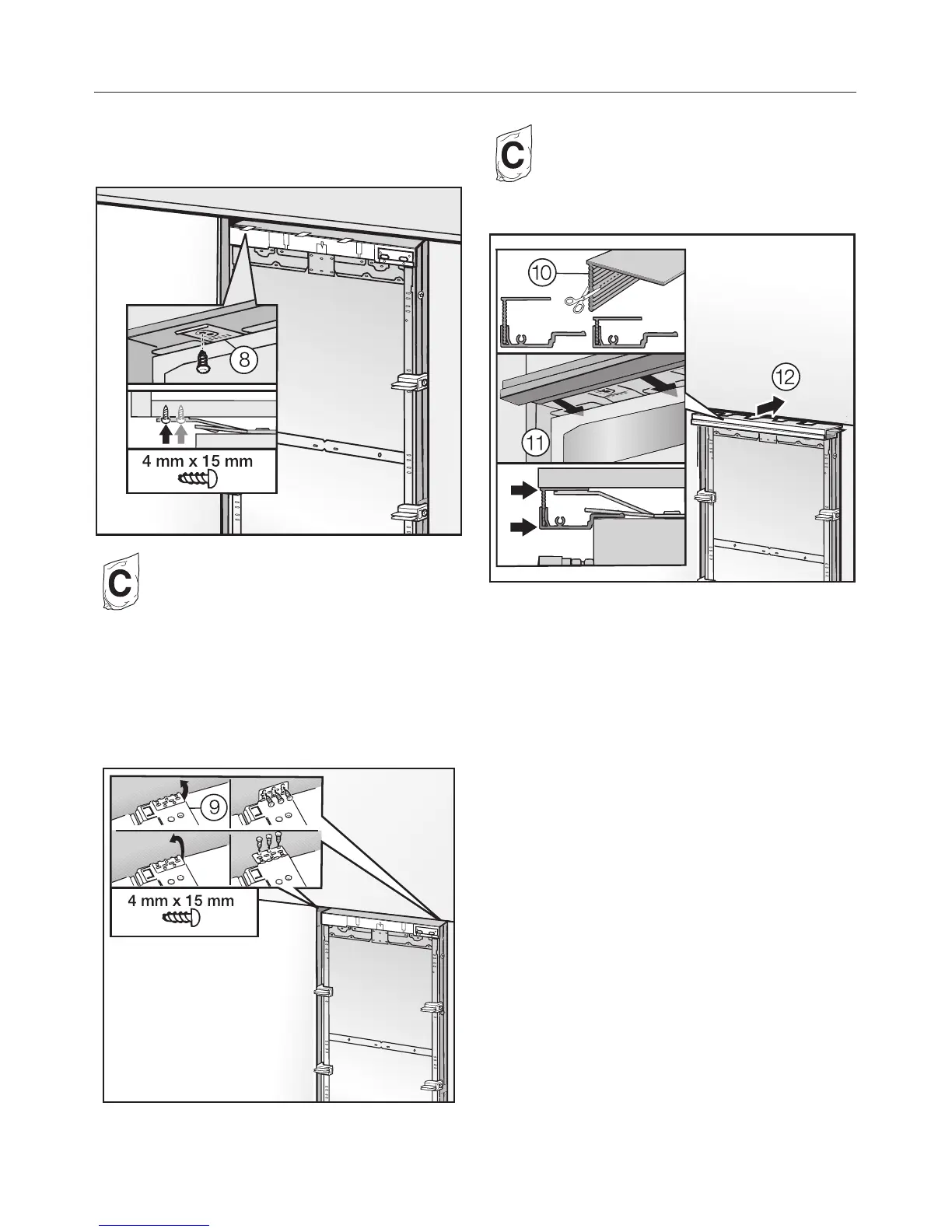

Attaching the appliance to the
installation niche
^ Screw the attachment plate lugs h to
the overhead furniture/fixtures.
If there is no way to attach the top of
the appliance, it can be attached to the
sides of the installation niche.
^
Pull out the plate side lugs i.
^
Secure the attachment plate side lugs.
If there is a fairly large gap above the
appliance, cut a wooden beam to fit
exactly and place it in the gap.
^ If necessary, shorten the filler strip j
to the required height.
^
Place the 2 strips on top of each
other k.
^
Insert the filler strip until you hear it
click into place l.
Installing the appliance
64
