G 1xxx/G 2xxx
D Layout of Electrical Components
1 Control Panels
Miele dishwashers are currently categorized into four (4) product series,
based on the type of controls.
1.1 Novotronic
Each Novotronic model dishwasher can be operated with a single knob.
Surface-mounted design (SMD) technology allows Miele Novotronic
components to be extremely durable and reliable. These controls are capable
of performing hundreds of tasks, which cannot be handled by mechanical
components.

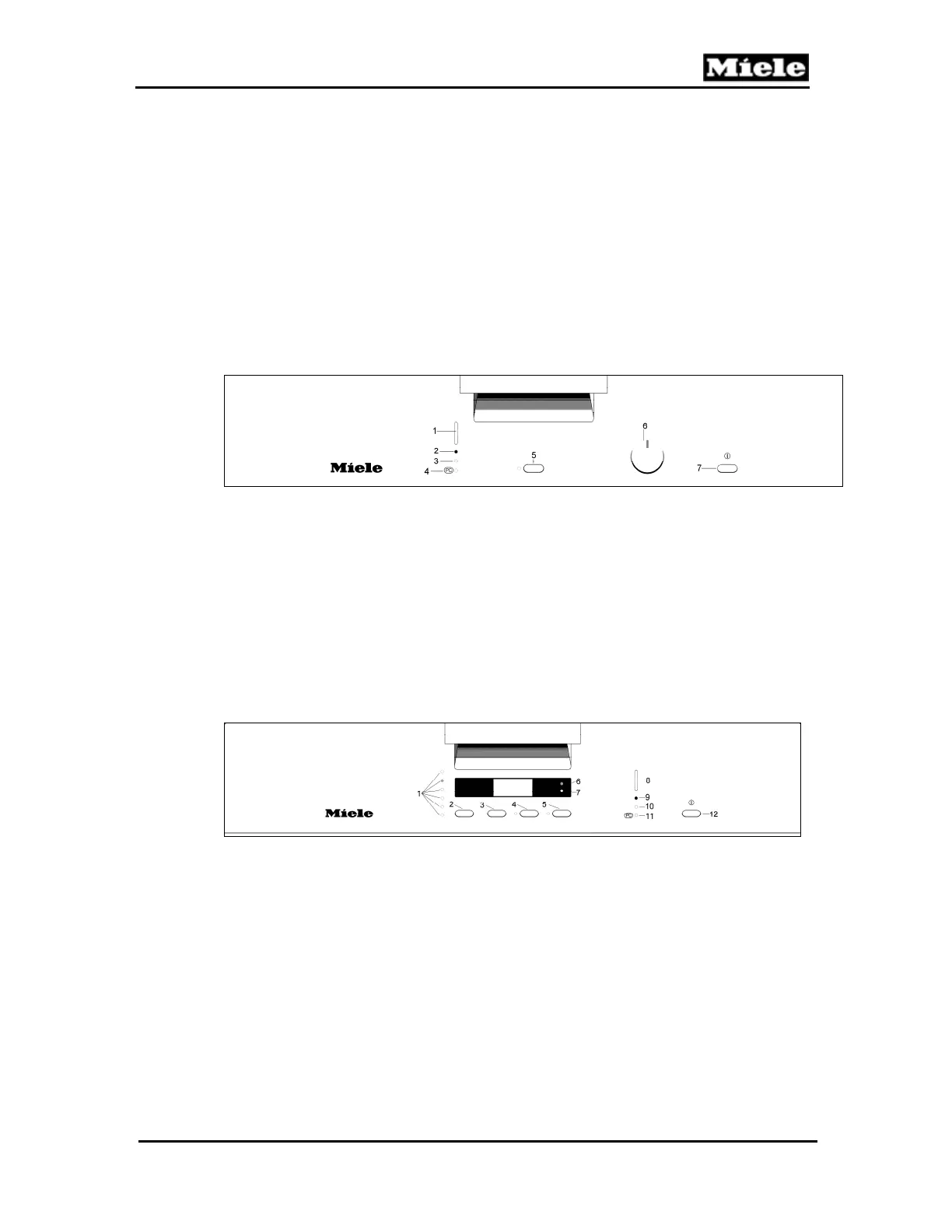

Figure D-1: G 2020 Fascia Panel
1 Program sequence LEDs 5 Start/Stop button
2 Intake/Drain LED 6 Control dial
3 Rinse aid LED 7 On/Off button
4 Salt LED and optical interface
1.2 Touchtronic
This series of Miele dishwashers is operated by pushing a single button – no
separate temperature or drying selections – just turn the machine on, select a
program and Miele does the rest. All models include a diverse group of wash
programs for multiple cleaning needs. Models are designed to maximize
cleaning results and optimize water and energy conservation.
Figure D-2: G 1202 Fascia Panel
1 Program selection LEDs 5 Start/Stop button 9 Intake/Drain LED
2 Program selection button 6 Turbo LED 10 Rinse aid LED
3 Extras button 7 Combi-Tab LED 11 Salt LED
4 Delay start button 8 Program sequence LEDs 12 On/Off button
