9 G 2000 Circulation Pumps Have a New Speed Sensor

Configuration

Two G 2000 MPEW circulation pumps, part numbers 6770655 and 6770605,

have a new speed sensor configuration. The speed sensor is no longer a

renewable part, and is sealed into the pump housing. The wiring is brought

out to a Molex connector on the side of the housing. This protects the speed

sensor assembly from moisture should the bottom pan fill with water. Be sure

to refer to the parts CD to determine which of these pumps you will

need. They are not interchangeable!

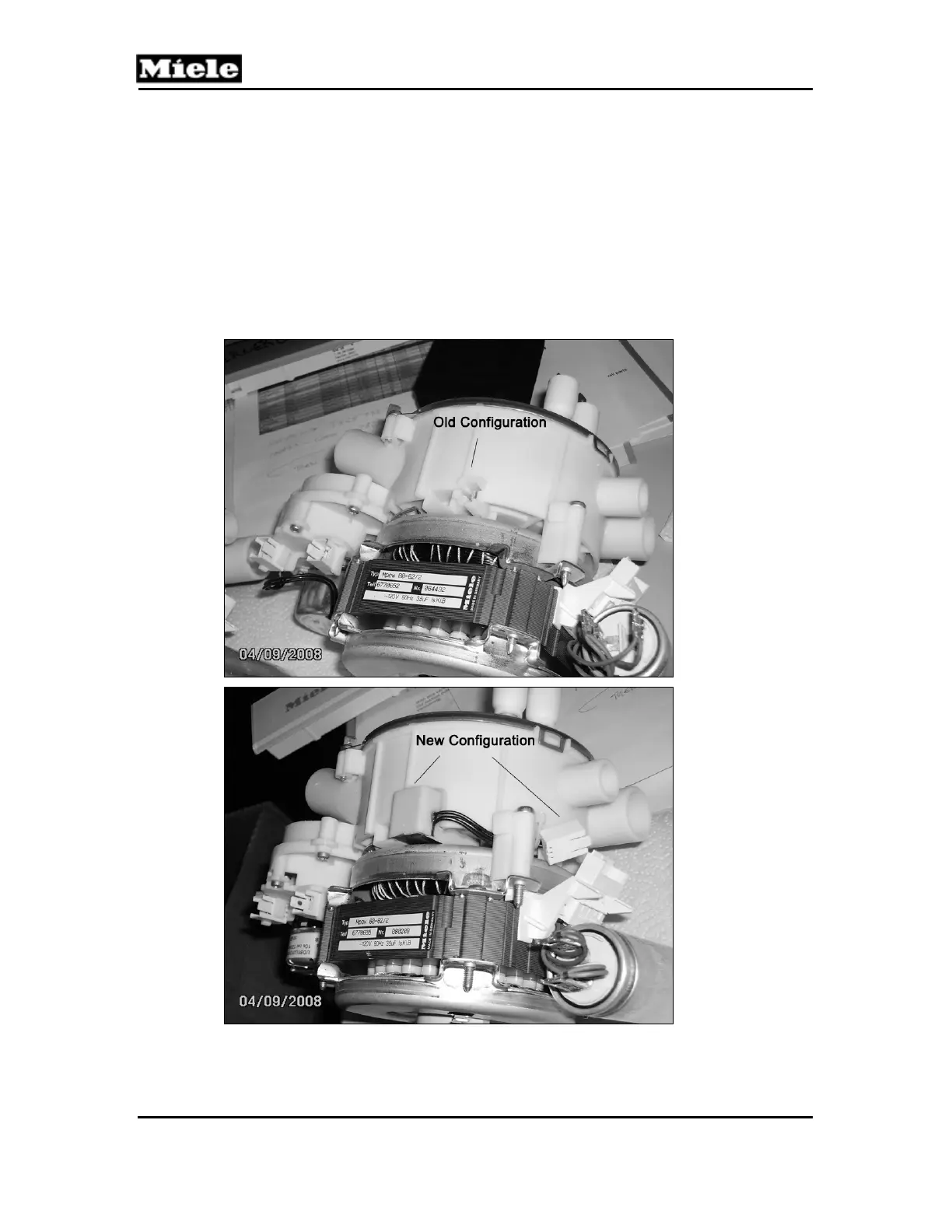

See the photos:
