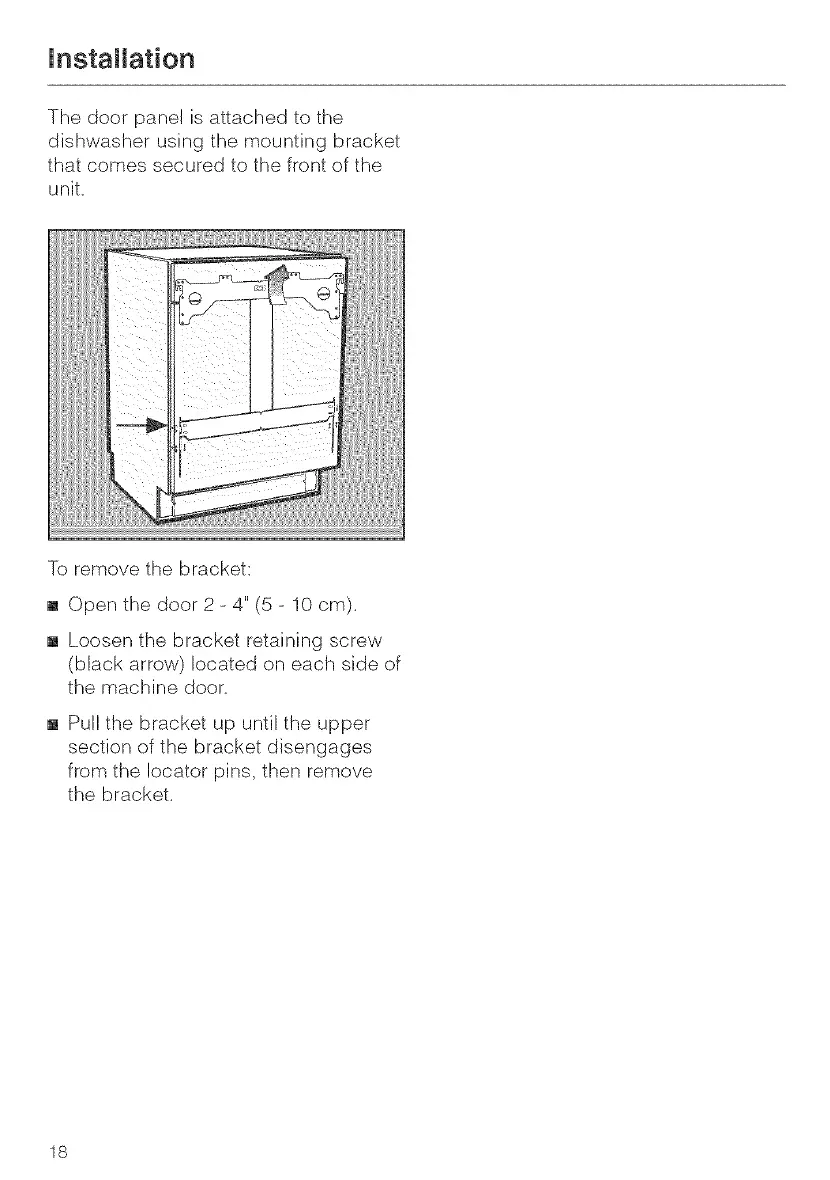

installation
The door panel is attached to the
dishwasher using the mounting bracket
that comes secured to the front of the
unit,
To remove the bracket:
[] Open the door 2- 4" (5 - 10 cm),
[] Loosen the bracket retaining screw
(black arrow) located on each side of
the machine door,
[] Pull the bracket up until the upper
section of the bracket disengages
from the Iocator pins, then remove
the bracket,
18
