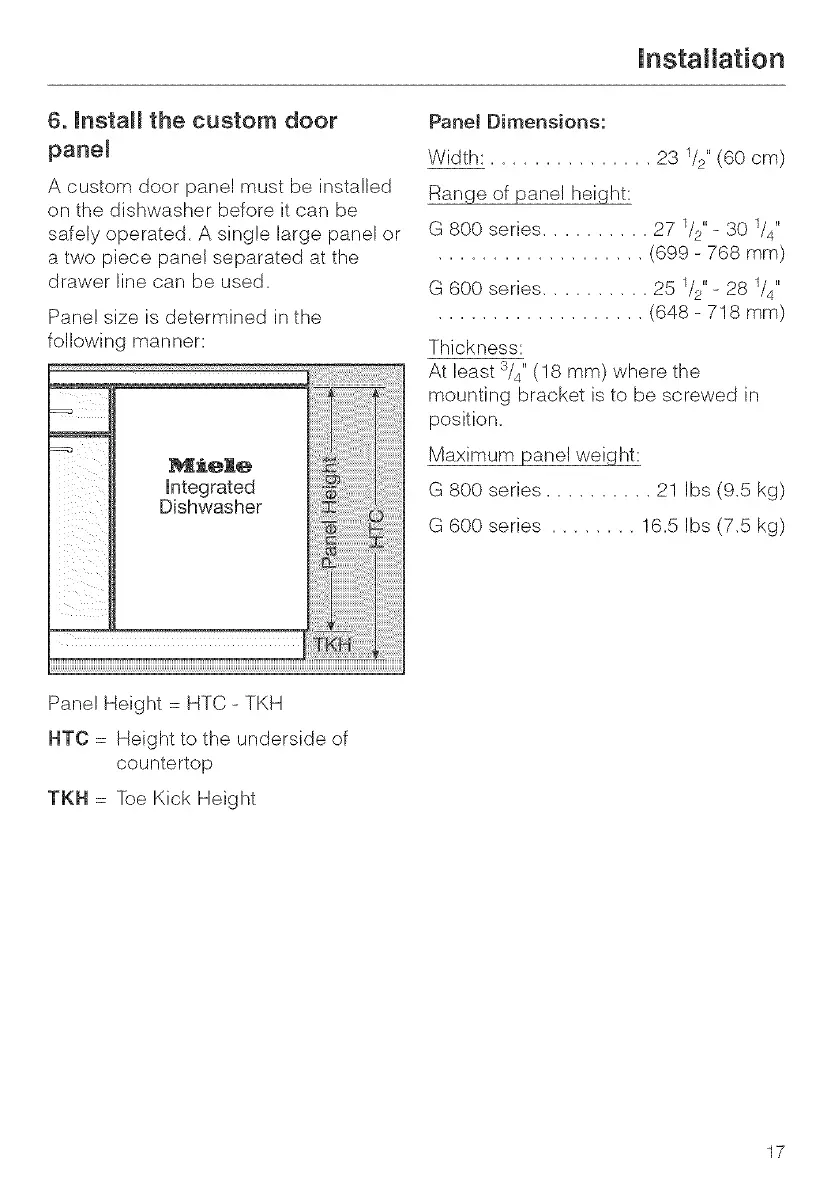

installation
6. mnstaH the custom door
pane_
A custom door panel must be installed
on the dishwasher before it can be
safely operated. A single large panel or
a two piece panel separated at the
drawer line can be used.
Panel size is determined in the
following manner:
_ele
Integrated
Dshwasher
Panel Height = HTC - TKH
HTC = Height to the underside of
countertop
TKH = Toe Kick Height
PaneJ Dimensions:
1/,, (60 ore)
Width: ............... 23 ,2
Range of panel heiqht:
G 800 series .......... 27 1/2"- 30 1/4"
................... (699 - 768 ram)
G 600 series .......... 25 1/2"- 28 1/4"
................... (648- 718 ram)
Thickness:
At least s/4" (!8 ram) where the
mounting bracket is to be screwed in
position.
Maximum panel weiqht:
G 800 series .......... 21 Ibs (9.5 kg)
G 600 series ........ 16.5 Ibs (7.5 kg)
17
