installation

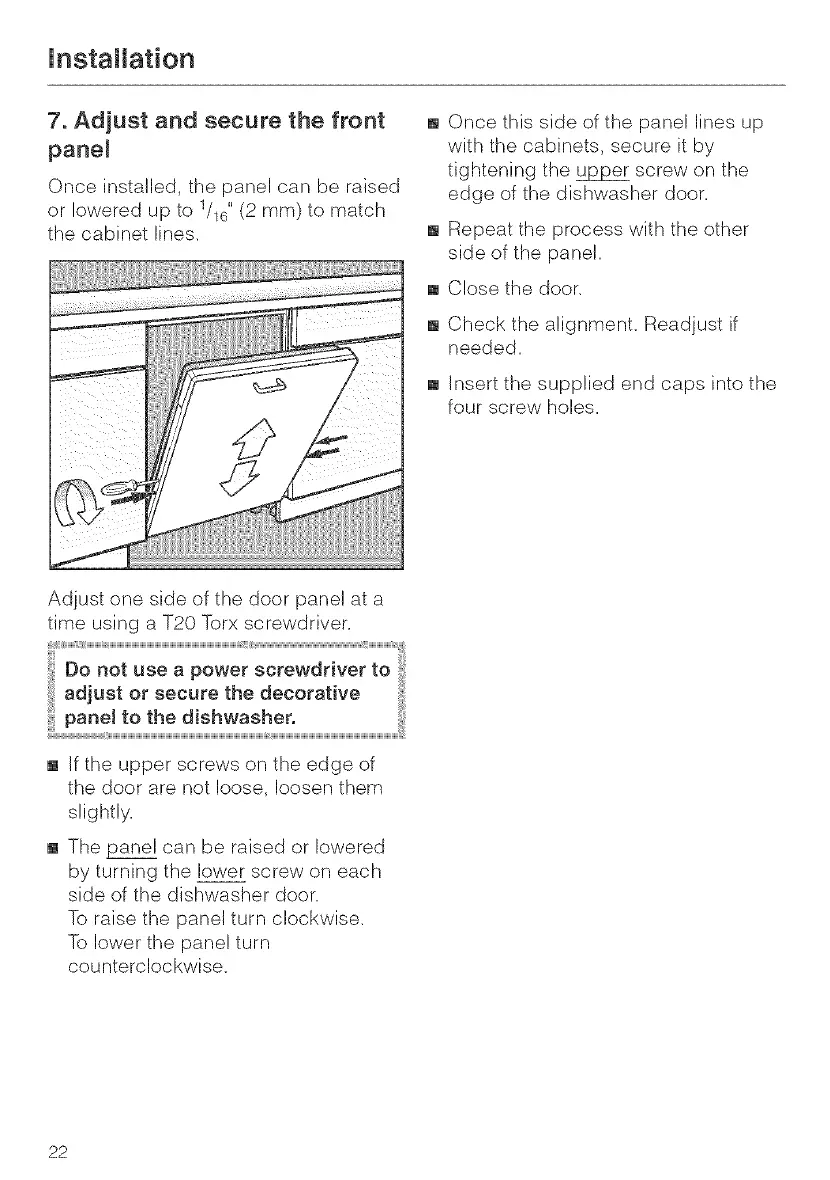

7. Adjust and secure the front
panel
Once installed, the panel can be raised
or lowered up to 1/lfi" (2 ram) to match
the cabinet lines.
[]
[]
[]
[]
Once this side of the panel lines up
with the cabinets, secure it by
tightening the _ screw on the
edge of the dishwasher door.
Repeat the process with the other
side of the panel.
Close the door.
Check the alignmenL Readjust if
needed.
Insert the supplied end caps into the
four screw holes.
Adiust one side of the door panel at a
time using a T20 Torx screwdriver.
[] If the upper screws on the edge of
the door are not loose, loosen them
slightly.
[] The panel can be raised or lowered
by turning the lower screw on each
side of the dishwasher door.
To raise the panel turn clockwise.
To lower the panel turn
counterclockwise.
22
