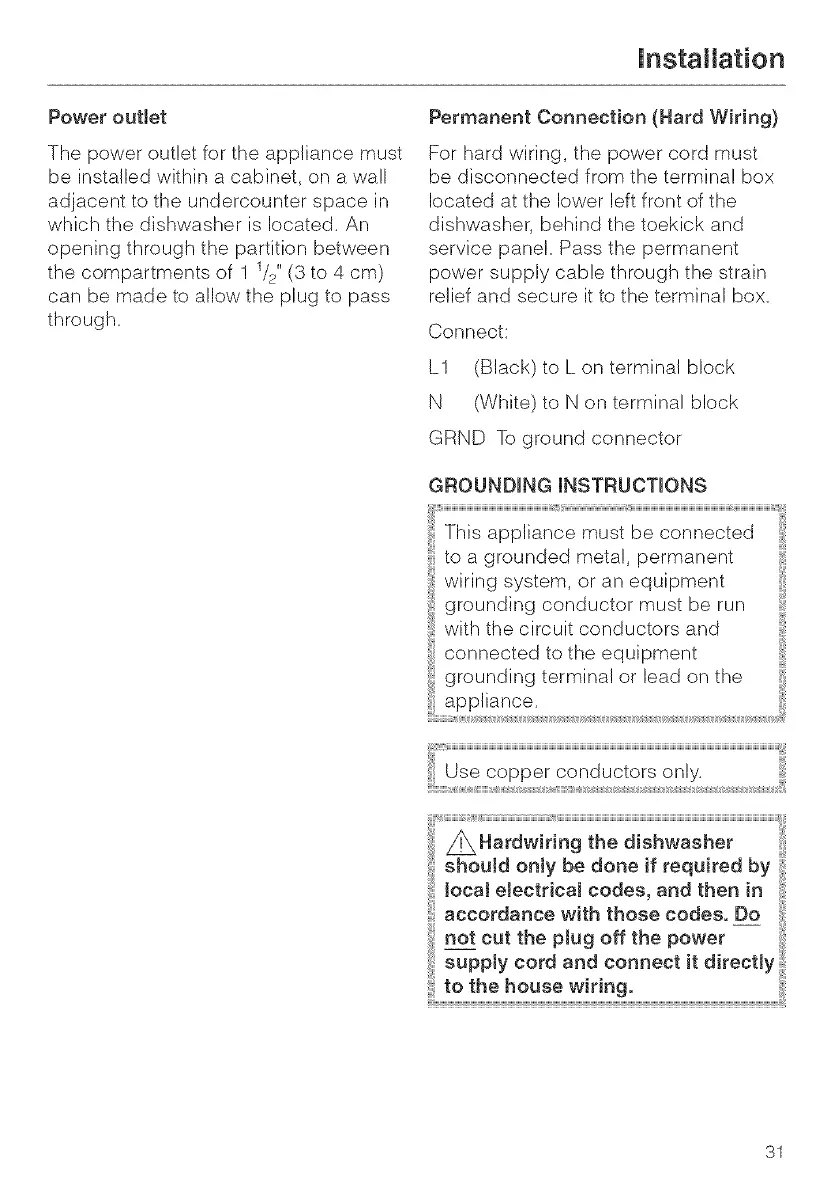

Installation
Power outlet
The power outlet for the appliance must
be installed within a cabinet, on a wall
adjacent to the undercounter space in
which the dishwasher is located, An
opening through the partition between
the compartments of 1 1/2"(3 to 4 cm)
can be made to allow the plug to pass
through,
Permanent Connection (Hard Wiring)
For hard wiring, the power cord must
be disconnected from the terminal box
located at the lower left front of the
dishwasher, behind the toekick and
service panel, Pass the permanent
power supply cable through the strain
relief and secure it to the terminal box,
Connect:
L1 (Black) to L on terminal block
N (White) to N on terminal block
GRND To ground connector
GROUNDING INSTRUCTIONS
with the circuit conductors and
connected to the equipment
i
not cut the plug off the power
supply cord and connect it directly
31
