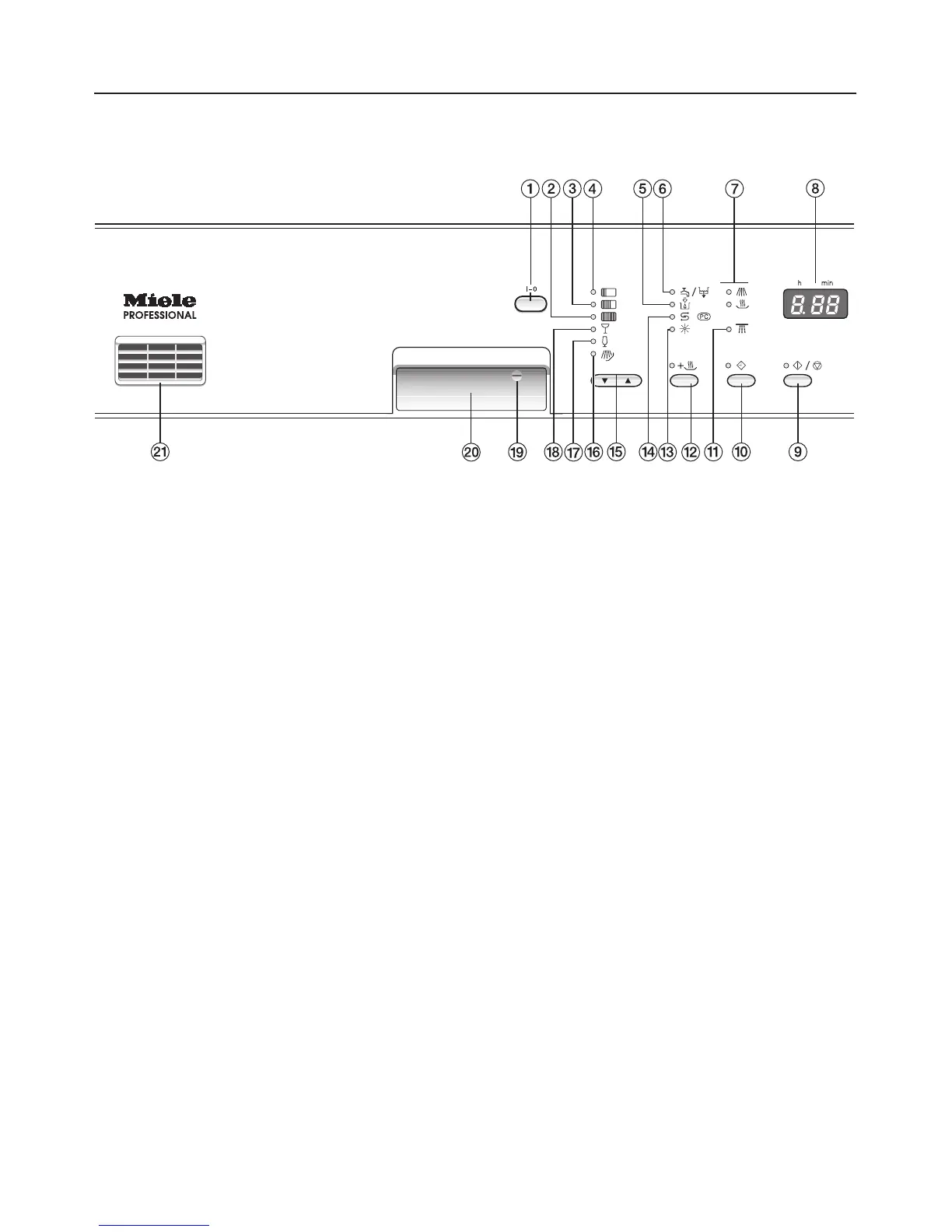

Control panel
a On/Off button
b MAXI programme
indicator light
c MIDI programme
indicator light
d MINI programme
indicator light
e Add liquid cleaning agent indicator
light (only applies to machine fitted
with an optional external DOS
module)
f Check water inlet/Drain indicator
light
g Programme sequence indicators
h Display
i Start/Stop button
j Delay start button
k Check spray arm indicator light
l Drying button
m Add rinse aid indicator light
n Add salt indicator light
o Programme selector buttons
p COLD programme
indicator light
q BEER GLASSES programme
indicator light
r GLASSWARE programme
indicator light
s Child safety lock
t Door release
u Ventilation outlet for drying fan
Guide to the machine
5
