Miele H4842BP - Page 63

a Vent cut-out (min. 24"
2
/ 150 cm
2
) possible at rear or platform of cabinet
b Cut-out for power cord (min. 1"
2
/3cm
2
)
c Power cord
For the most current specifications see the Miele web site.

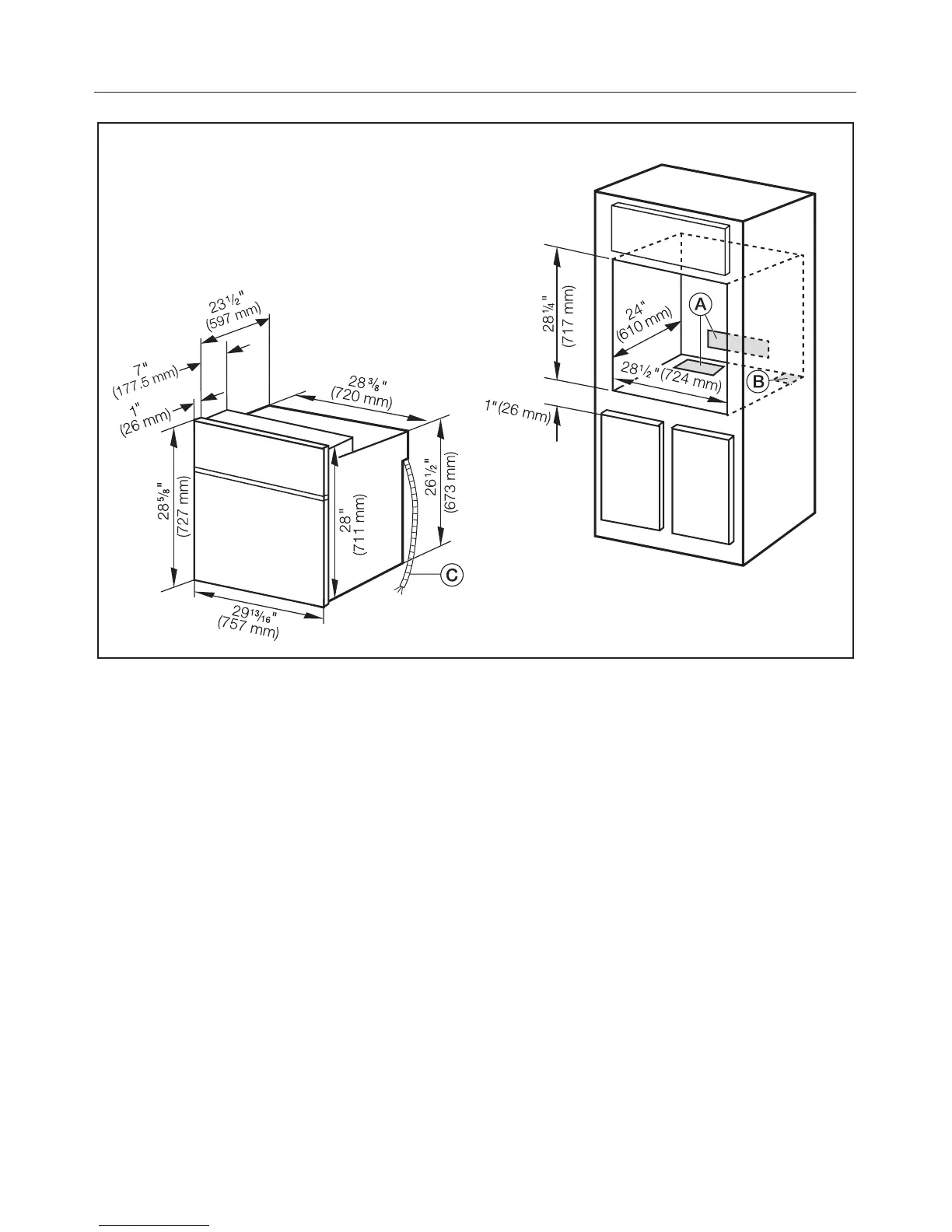

Appliance and Cut-out Dimensions
63
