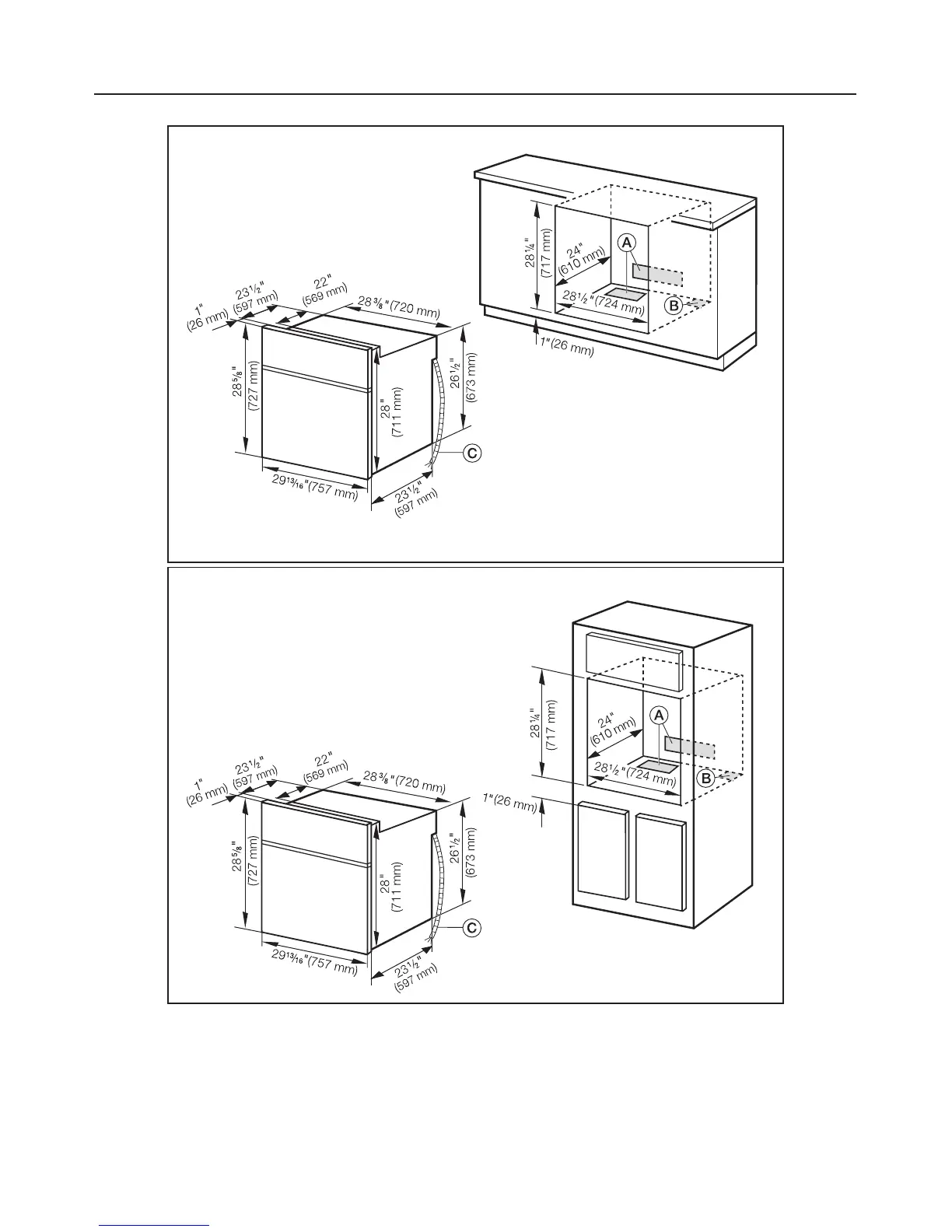

Miele H4882BP - Appliance and Cut-Out Dimensions

a Vent cut-out (min. 24"
2
/ 150 cm
2
) possible at rear or platform of cabinet
b Cut-out for power cord (min. 1"
2
/3cm
2
)
c Power cord
For the most current specifications see the Miele web site.
Appliance and Cut-out Dimensions
