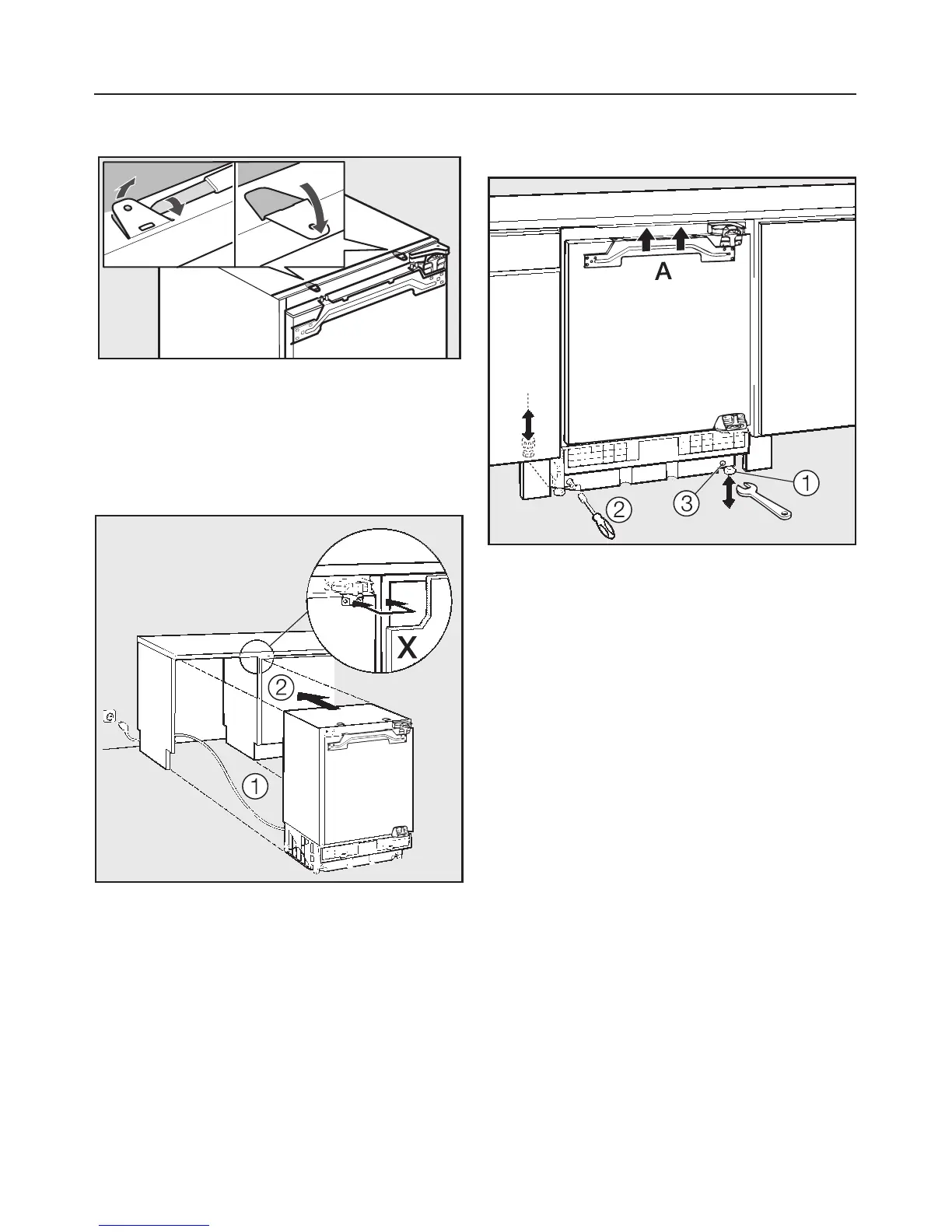

Preparing the appliance
^
Bend both fixing tabs at the top of the
appliance forwards as far as they will
go.
Installation
^
Position the power supply cable a
so that it can easily be connected to
the electricity supply after the
appliance has been built in.
^
Push the appliance into the niche b
until the front edge of the hinge
aligns with the front edge of the
furniture housing unit (marked X on
the drawing).
Make sure that the mains cable does
not get trapped when the appliance
is pushed into the niche.
^ Increase the height of the appliance
using the adjustable feet until the top
of the appliance lies directly under
the worktop (A).
To increase the height
–
of the front screw feet a turn them
anti-clockwise with a suitable
spanner.
–
of the rear left screw foot insert the
hex nut supplied into the opening at
the front of the appliance b and
using a hex spanner turn it
anti-clockwise.
–
of the rear right screw foot insert
the hex nut supplied into the opening
at the front of the appliance c and
using a hex spanner turn it
clockwise.
Installing the appliance
27
