Secure the appliance to the housing
unit at the top and bottom by
screwing four screws through the
hinge plates (Detail Y).
^
Tighten the screws through the fixing
piece (detail X), or through the
middle of the long slot in the plastic
bracket and flip the plastic bracket
downwards.
^
Fit the 3 screws through the fixing
profile strip b (detail Z).
^
Close the door.

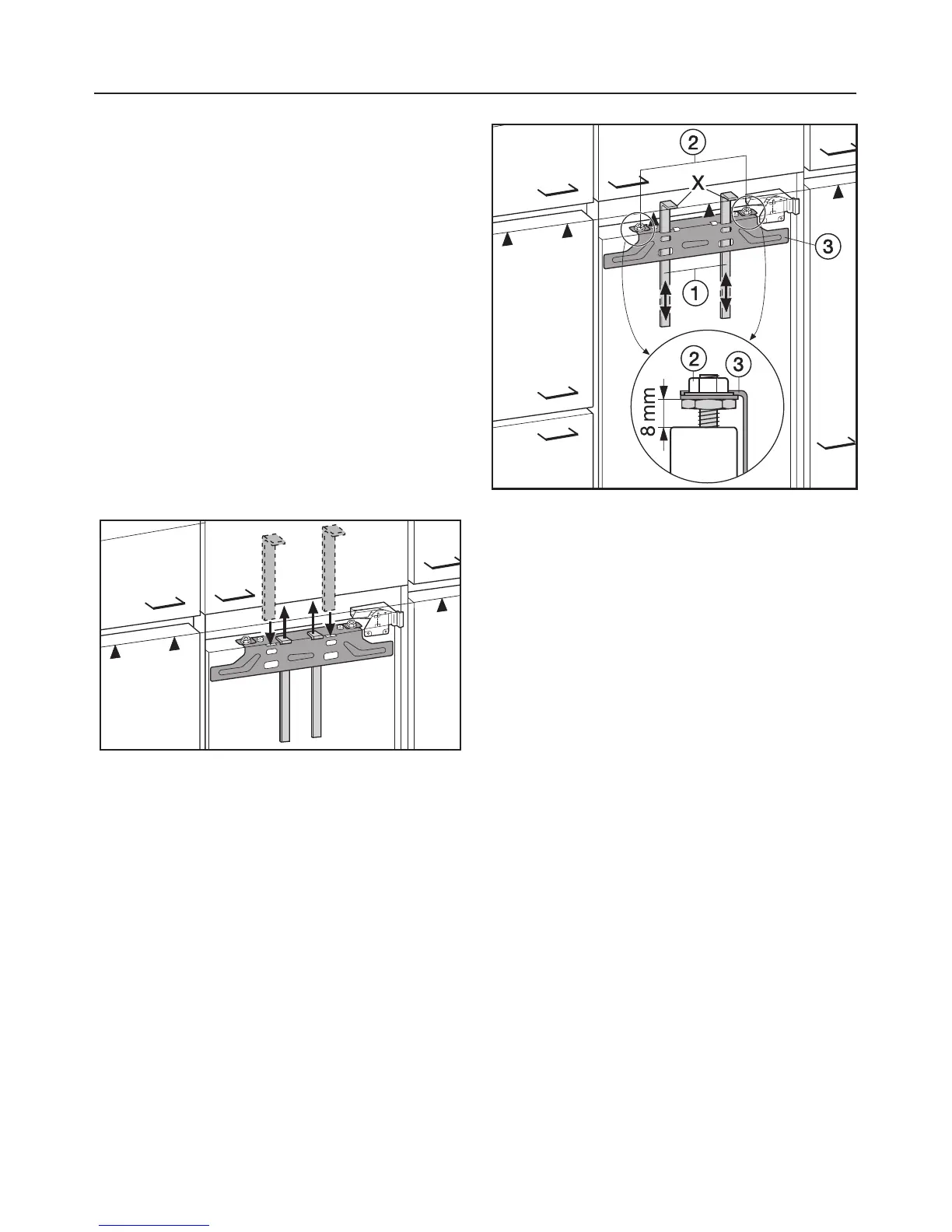

Fitting the furniture door
^
Pull the fitting aids out of their storage
position, turn them around and insert
them into the outer slots of the fixing
bracket, as shown.
^ A gap of 8 mm must be maintained
between the appliance door and the
fixing bracket.
^ Push fitting aids a up to the height of
the furniture door: the lower edge "X"
of the fitting aids must be at the same
height as the upper edge of the
furniture door being fitted, see - on
the diagram.
^
Undo nuts b and take fixing bracket
c off together with the fitting aids.
Installing the appliance
38
