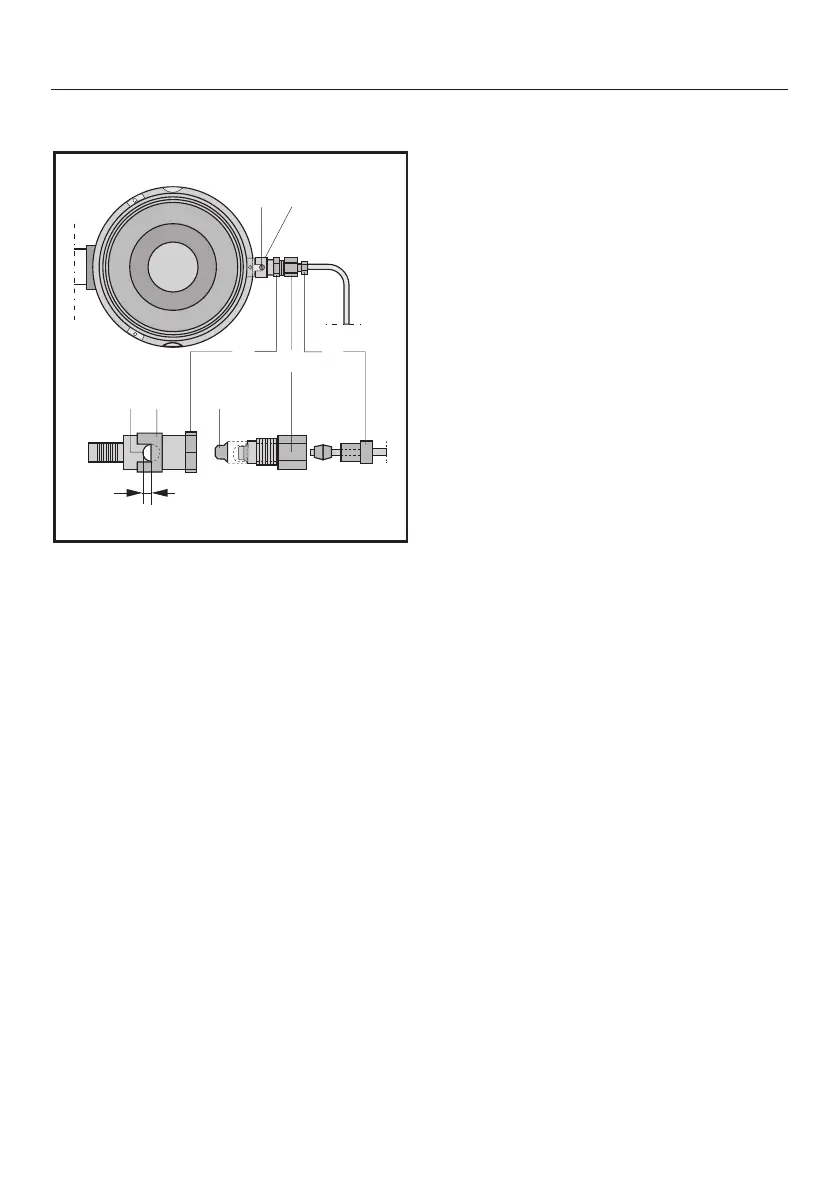

Changing the small burner jet
a, c Fittings
b Connector
d Small burner jet
e Air sleeve
f Air vent
^
First loosen the fitting, c, using an
8 mm wrench. While doing so hold
the connector, b, with a 12 mm
wrench to prevent the tubing from
twisting.
^
Then remove the connector, b, from
the fitting, a, using two 12 mm
wrenches.
^
Remove the jet, d, and replace it
with the new jet.
^
Slide the air sleeve, e, until there is a
1
/
16
" (2 mm) gap between the sleeve
and the air vent, f, as shown.
^ Reassemble the burners and test the
unit for leaks. The cooktop can be
operated without the cooktop surface
in place by igniting the flames with a
match.
