Changing the Jets

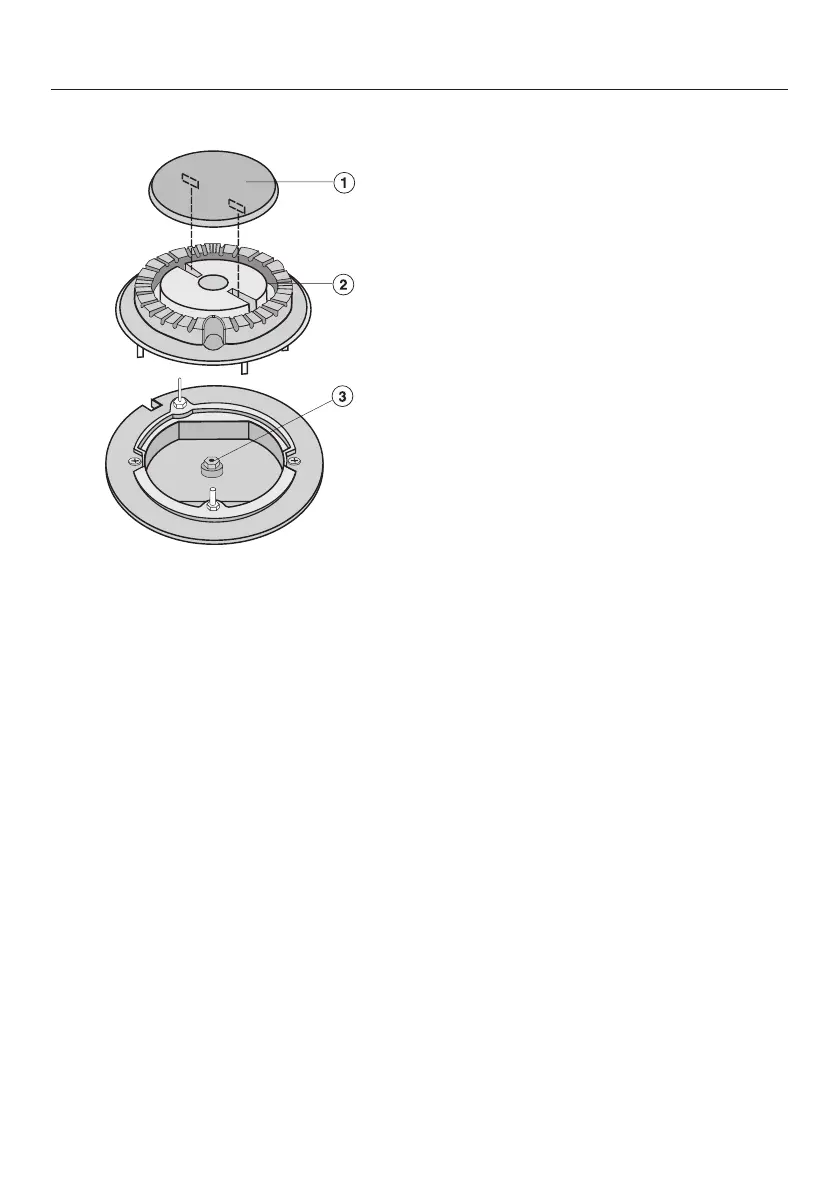

^ Remove the grates, the burner cap,
a, and the burner head, b.
^ Using a 7 mm nut driver or socket
wrench, unscrew and remove the jet,
c.
^
Install the new jet and reassemble
the above parts in the reverse order.
^
Save the jets and needle valves
removed from the appliance for future
use.
After conversion
^
After converting the cooktop affix the
label supplied with the conversion kit
next to the data plate underneath the
appliance.
^
Check that there are no leaks, e.g.
with soapy water.
^
Check that the burner is correctly
assembled.
^
Turn on the gas supply.
^
Light each of the burners in turn.
When set at "low" or when the control
knob is quickly turned from "high to
"low" the flame should not go out.
When set at "high" the gas flame must
burn with the center clearly visible.
Converting KM 320
5
