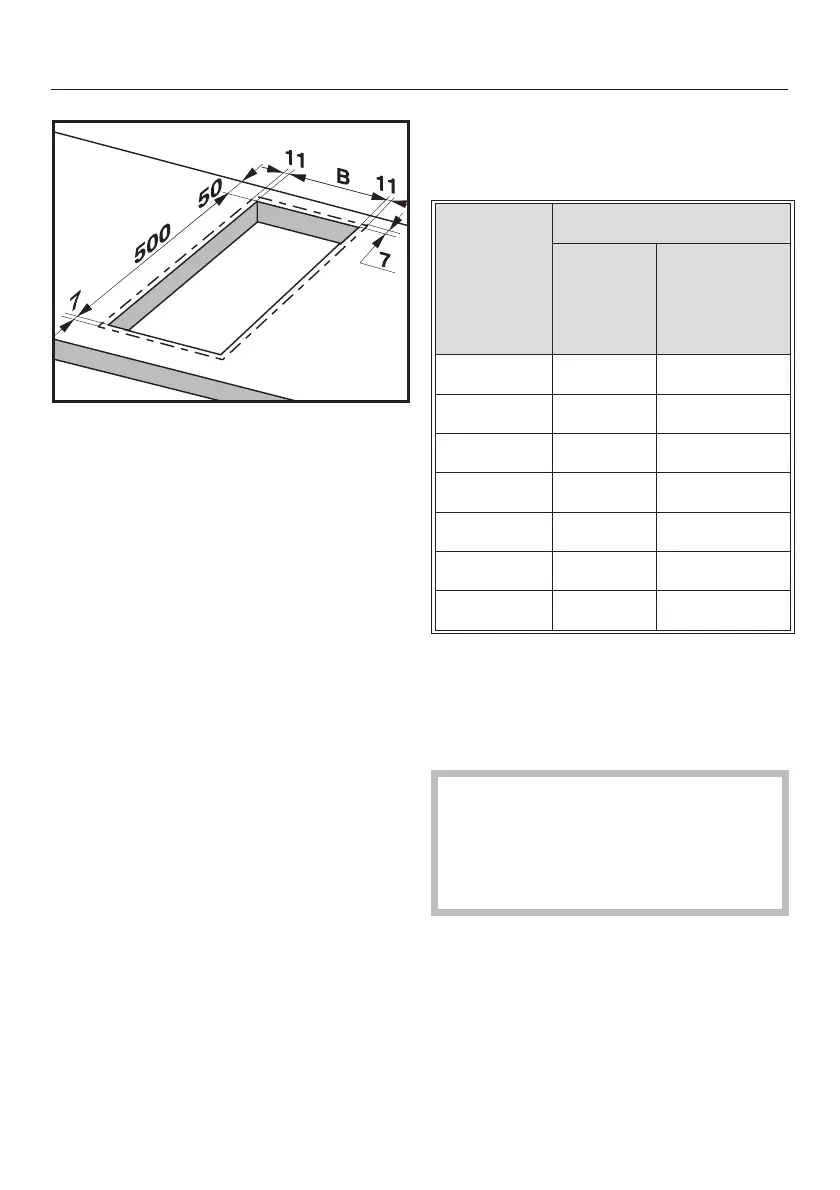

Dimensions 7 mm and 11 mm are the
space taken up by the frame of the
appliance on the worktop.
^ Make a cut-out for the hob in the
worktop, paying attention to the
appliance height. See section
"Appliance dimensions".
Dimension "B" applies to a combination
of appliances and is shown on the
chart.
There must be a minimum safety
distance of 50 mm between the hob
and the back wall and 100 mm
distance from a side wall to the right or
left of the hob (250 mm with KM 406).
See also chapter "Warning and Safety
instructions".
^
Seal the cut surfaces with a suitable
sealant to avoid swelling caused by
moisture.
The materials used must be heat
resistant.
Installing one or more appliances
Cut out the worktop according to the
dimensions listed in the following chart.
Number
of
appliances
Worktop cut-out
Depth in
mm
± 1 mm
Width
(= Dim. B)
in mm
± 1 mm
1 500 266 mm
2 500 554 mm
3 500 842 mm
4 500 1130 mm
5 500 1418 mm
6 500 1706 mm
7 500 1994 mm
Important:
The maximum tolerance for the worktop
cut-out must not exceed ± 1 mm.
When building in several combiset
appliances a spacer bar must be
fitted between each unit.
See chapter "Fitting the spacer bars
and support brackets".
Worktop cut-out for KM 404 / KM 405 / KM 406
13
