Solid wood, tiled and glass
worktops

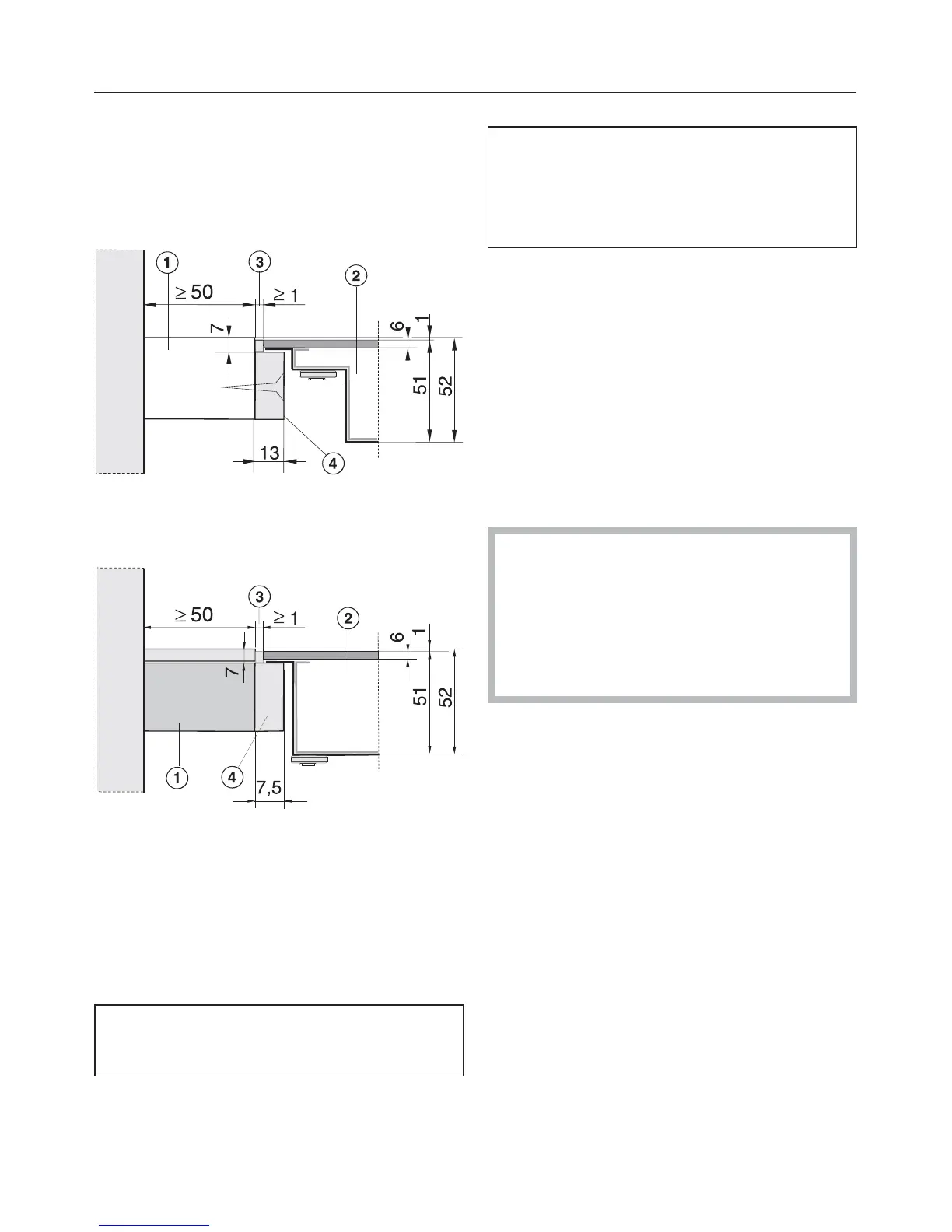

Preparing the worktop
KM 6383
a Worktop
b Hob
c Gap
d Wooden frame 13 mm
KM 6383 = 7.5 mm
Wooden frame to be provided on
site.
As the ceramic glass and the
worktop cut-out have a certain
dimensional tolerance, the size of
gap c can vary (min. 1 mm).
^
Make the worktop cut-out as shown
in "Building-in dimensions".
Observe the safety distances (see
"Safety instructions for installation").
^
Fix the wooden frame d 7 mm below
the top edge of the worktop (see
diagram).
Connecting the mains cable to the
appliance
The mains cable must only be
connected to the appliance by a
qualified and competent electrician
in strict accordance with current
local and national safety regulations
(BS 7671 in the UK).
^ Follow the instructions in the wiring
diagram (see "Electrical connection -
Wiring diagram").
Flush-fitted hobs
76
