Technical Information
14
MasterChef Ovens
1.4.3 H 39x B2 Double Oven (w/o Self-Clean)

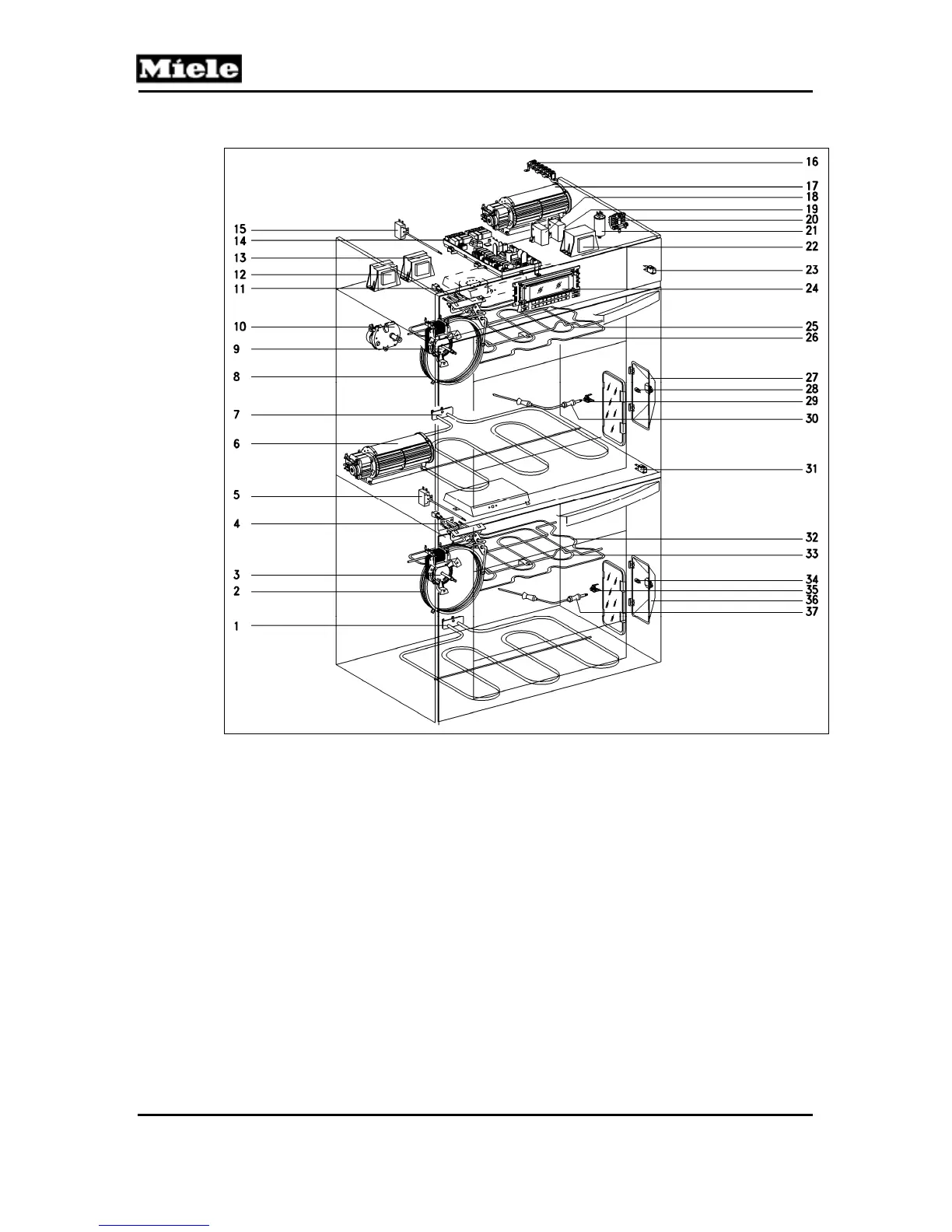

Figure 1-9: Double Oven w/o Self-Clean (H 398 B2 Shown)
1
(2R12) Lower oven lower heating element
2
(2R14) Lower oven convection heating element
3
(2M2/2) Lower oven convection fan
4
(4R30) Lower oven cavity temperature sensor
5
(3F1) Lower oven cavity thermostat
6
(2M2/1) Lower oven cooling fan
7
(1R12) Upper oven lower heating element
8
(1R14) Upper oven convection heating element
9
(1M2/2) Upper oven convection fan
10
(1M15, 2M15) Rotisserie motors
11
(1R30) Upper oven cavity temperature sensor
12
(2T1) Upper oven lighting transformer
13
(3T1) Lower oven lighting transformer
14
(1N1) Power electronic
15
(1F1) Upper oven cavity thermostat
16
(X3/1) Terminal block
17
(1M2/1) Upper oven cooling fan
18
(1K1) Upper oven relay
19
(2K1) Lower oven relay
20
(S1) Child safety lock
