Technical Information
19
MasterChef Ovens
1.4.7 H 488x B/BP Single Oven (with/without Self-Clean)

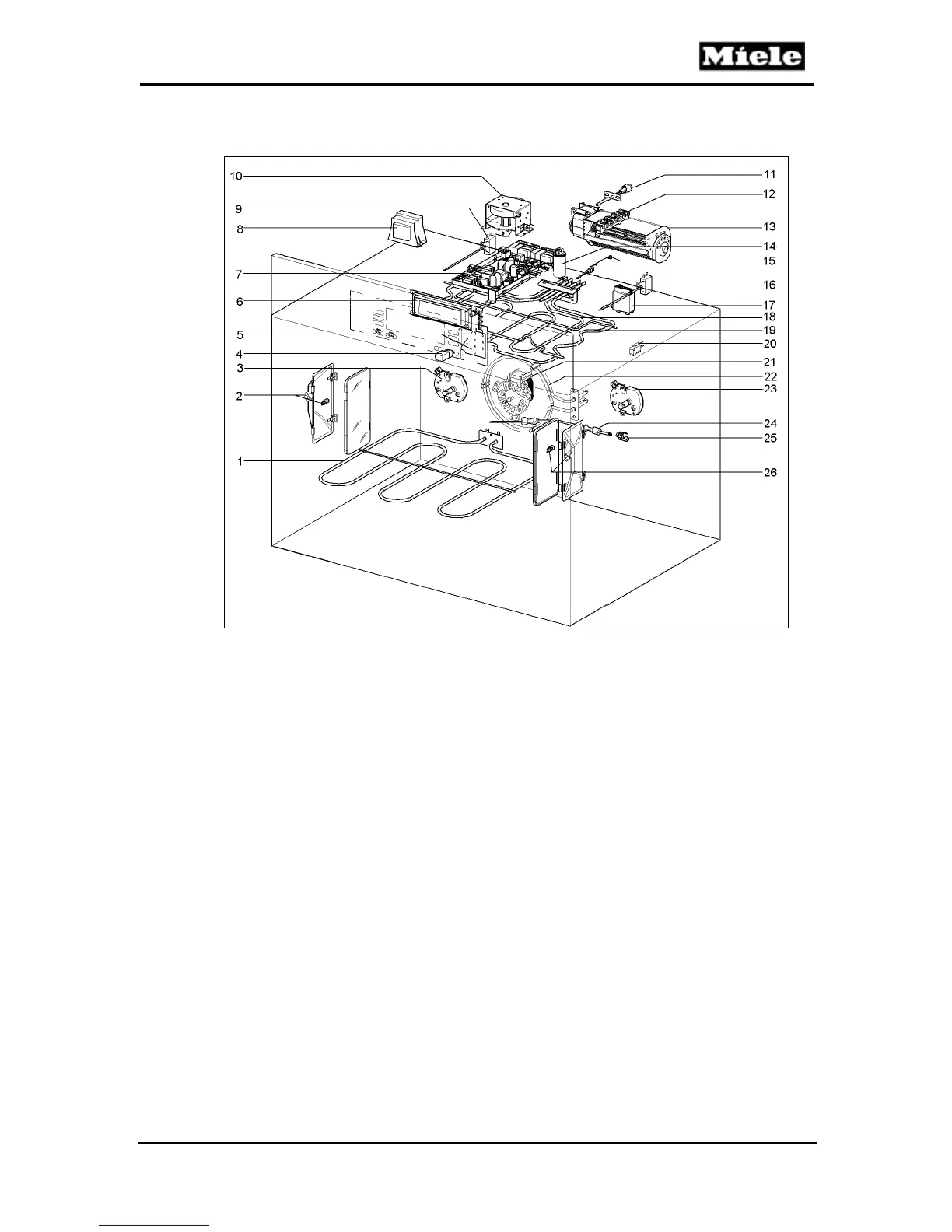

Figure 1-13: H 488x B/BP
1
(R12) Lower heating element
2
(1H3/1) Light assembly
3
(1M15) Rotisserie motor
4
(2S60) Door lock switch
5
(2A1) Selection electronic EW
6
(1A1) Control electronic EPX
7
(1N1) Power electronic EPL
8
(T1) Transformer
9
(F1/4) Self-clean thermostat (968°F/520°C) (“P” models only)
10
(M23) Door lock motor (“P” models only)
11
(2R30) Catalyst PT 1000 temperature sensor (“P” models only)
12
(X3/1) Terminal block
13
(M2/1) Cooling fan
14
(Z2) Interference suppression capacitor
15
(1R30) Oven cavity PT 1000 temperature sensor
16
(F1/3) Cavity thermostat (680°F/360°C)
17
(K1/1) Relay
18
(R15) Broiler element
19
(R13) Upper heating element
20
(S24) Door contact switch
21
(M2/2) Convection fan
22
(R14) Convection heater
23
(2M15) Rotisserie motor
24
(3R30) Roast probe
25
(X5/8) Roast probe socket
26
(2H3/1) Light assembly
