Technical Information
30
MasterChef Collection Cooktops
4.3.2 Burner Gas Regulators
Each burner is user controlled via a mechanical Gas Regulator.
Each Regulator contains a connection port for the Thermocouple
Solenoid, that works with the Ignition / Re-Ignition System (see
4.3.1).
Even if the user control is placed into the fully open position no gas
can flow from the Regulator unless the Thermocouple Solenoid is
energized (in the open position).
4.3.3 Connecting to LP Gas
The KM342 and KM344 is ordered specific for the type of gas
supply being used - field conversion is not possible.
4.3.4 Burner Assemblies
4.3.4.1 Normal and Fast Burner Assembly

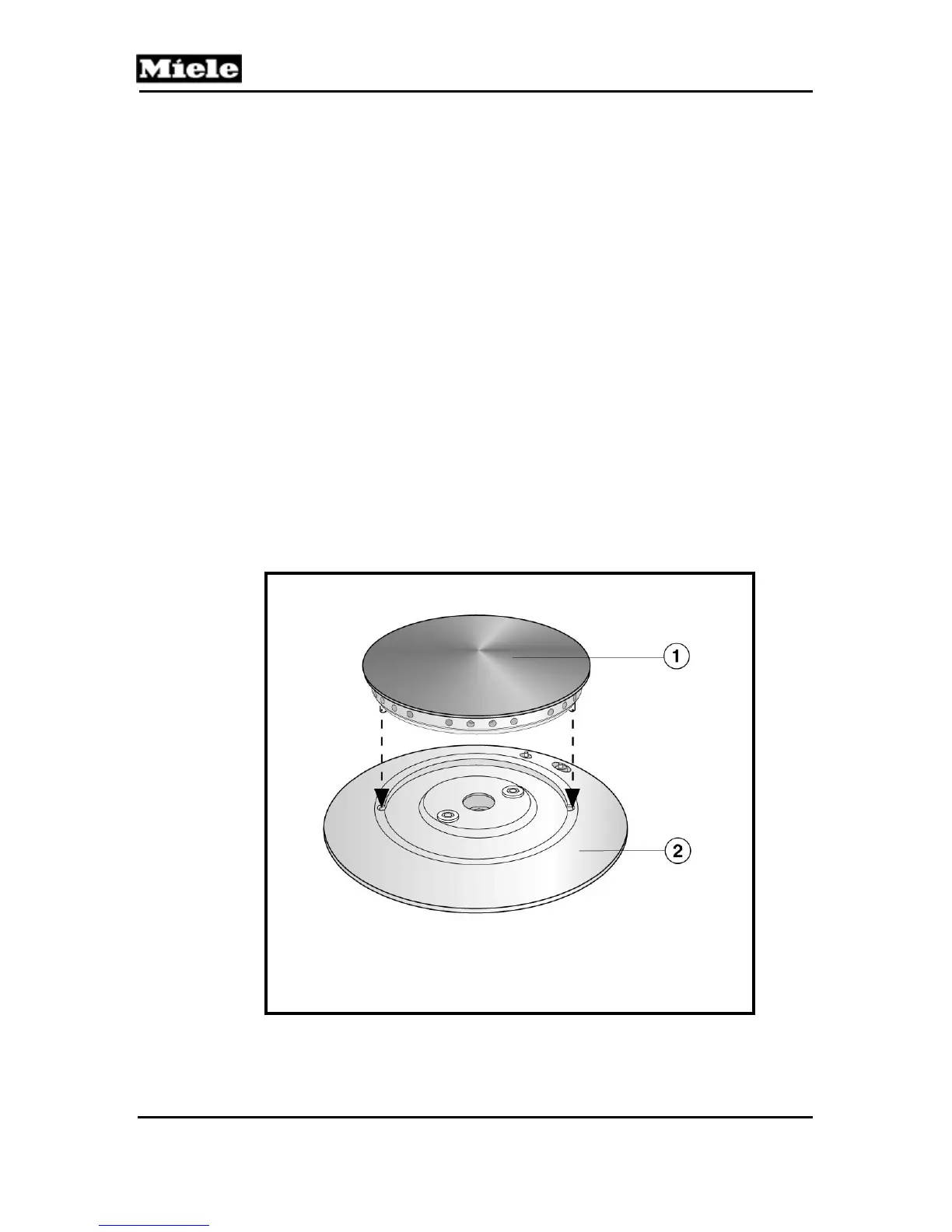

1. Burner Cap
2. Burner Base
Figure 4-3: KM342 & KM344 Normal / High Speed Burner Components
