Miele NOVOTRONIC T 7634 User Manual

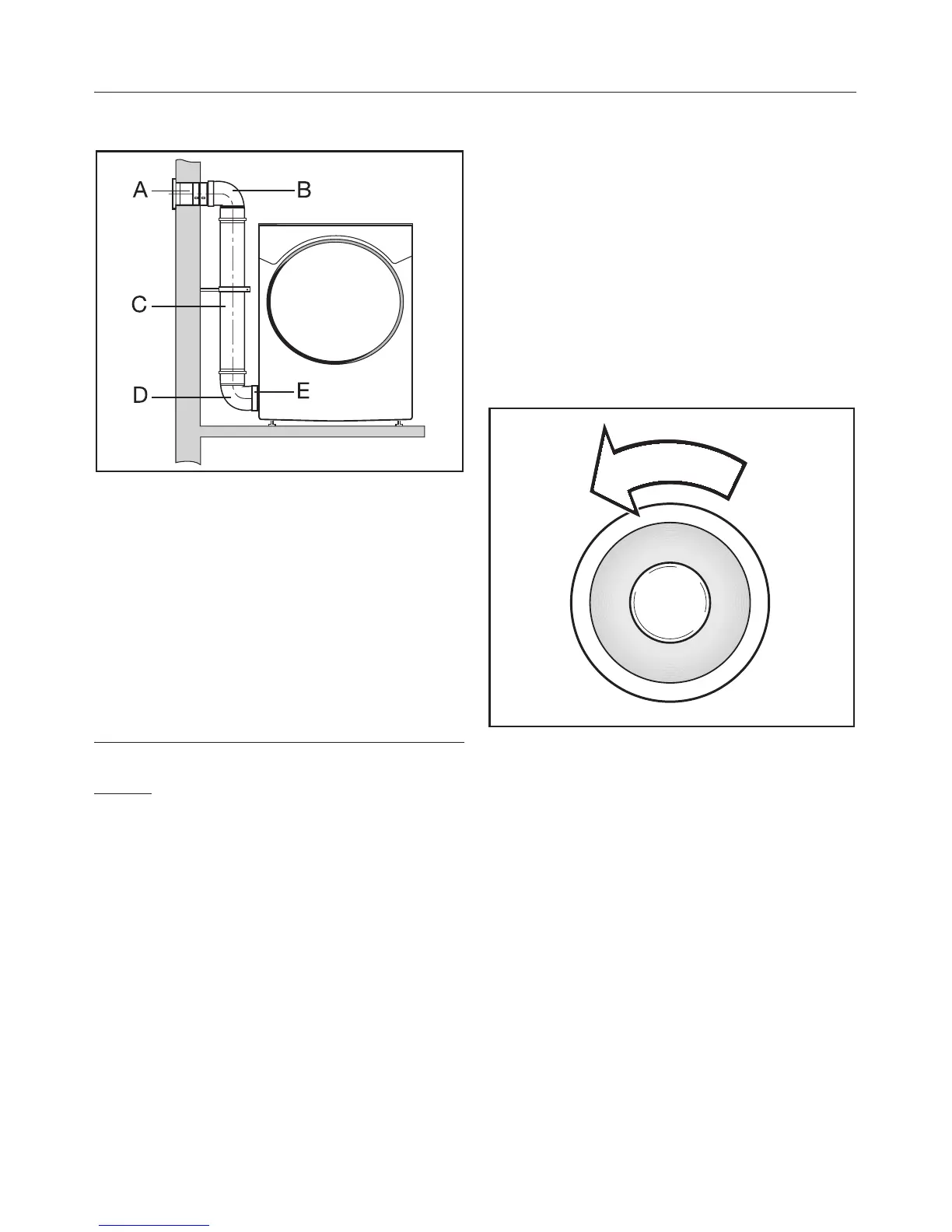

Calculation example
A Wall pipe, with grill insert
= 1 x 3.8 m Comparative duct
length
= 3.8 m
B/D 2 elbows, 90°
= 2 x 0.8 m Comparative duct
length
= 1.6 m
C 0.5 m plastic piping
=0.5x1mComparative duct
length
= 0.5 m
E Left side vent opening
= 1 m Comparative duct length = 1.0 m
Total duct length = 6.9 m
Result: Total duct length is less than 20
m (as per Table II). Therefore a pipe
diameter of 100 mm is adequate.
Rear or side exhaust
connection
At the rear
Dryer is delivered with this connection
open.
^
Install the vent duct as described on
the following pages.
Sideways to left or right
^
Unscrew the cover
(counterclockwise).
^
Refit the cover securely in the rear
vent outlet.
^
Install the vent duct as described on
the following pages.
Installing the dryer vent
36

Miele NOVOTRONIC T 7634 Specifications

General

Type	Condenser dryer
Load Capacity	7 kg
Energy Efficiency Class	B
Noise Level	65 dB
Dimensions (H x W x D)	85 x 59.6 x 64.5 cm
Weight	50 kg
Appliance type	Dryer
Capacity	7 kg
Color	White
Loading type	Front load
