Installation
25
a

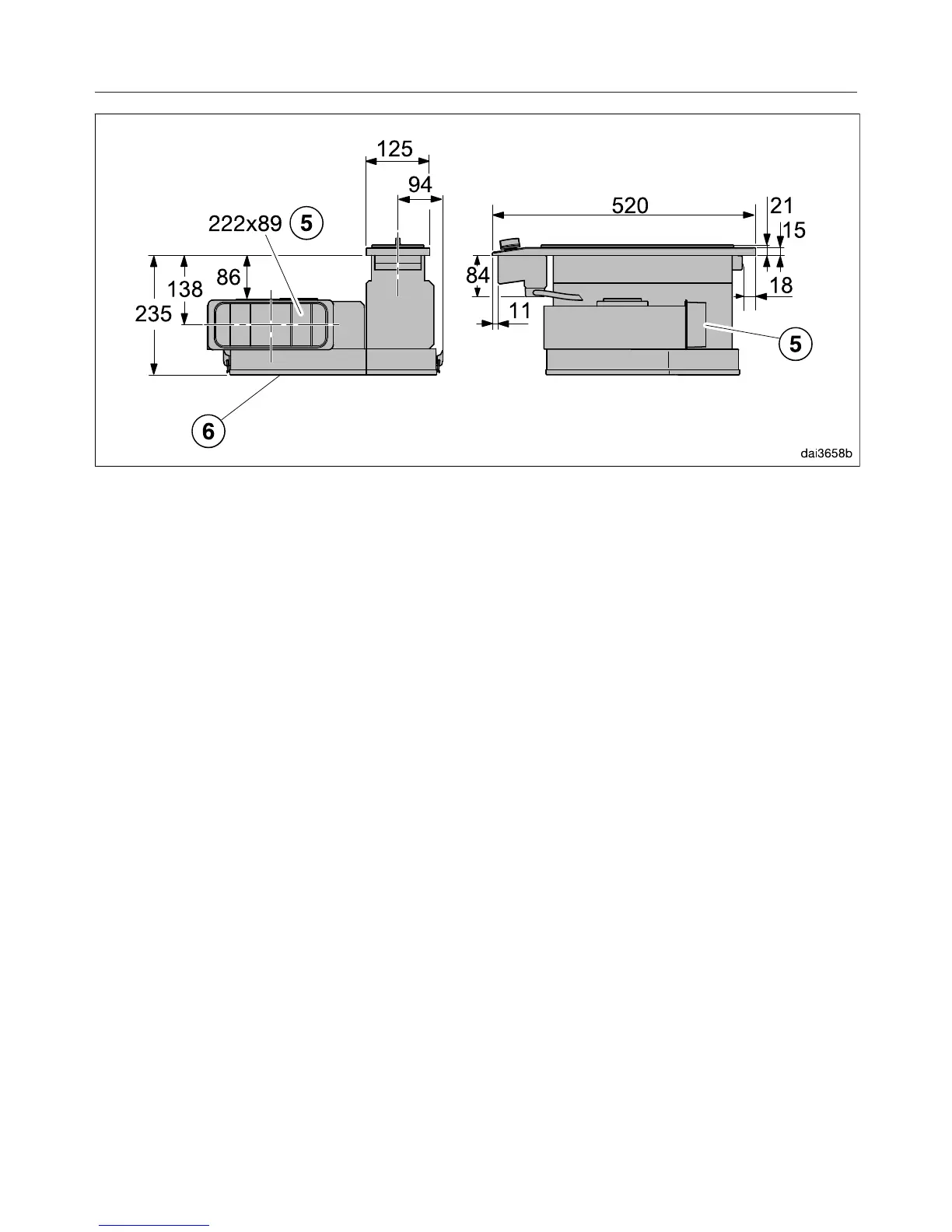

Fan on right-hand side, exhaust connection at rear (default position).
b
Fan on right-hand side, exhaust connection on the right (conversion necessary).
c
Fan on left-hand side, exhaust connection on the left (conversion necessary).
d
Centre of cut-out
e
Exhaust connection
f
Removable moisture collection tray. This collects any liquids that make their
way through the extraction grille.
The moisture collection tray must be accessible after installation.
* Cut-out dimensions
