Installation
26

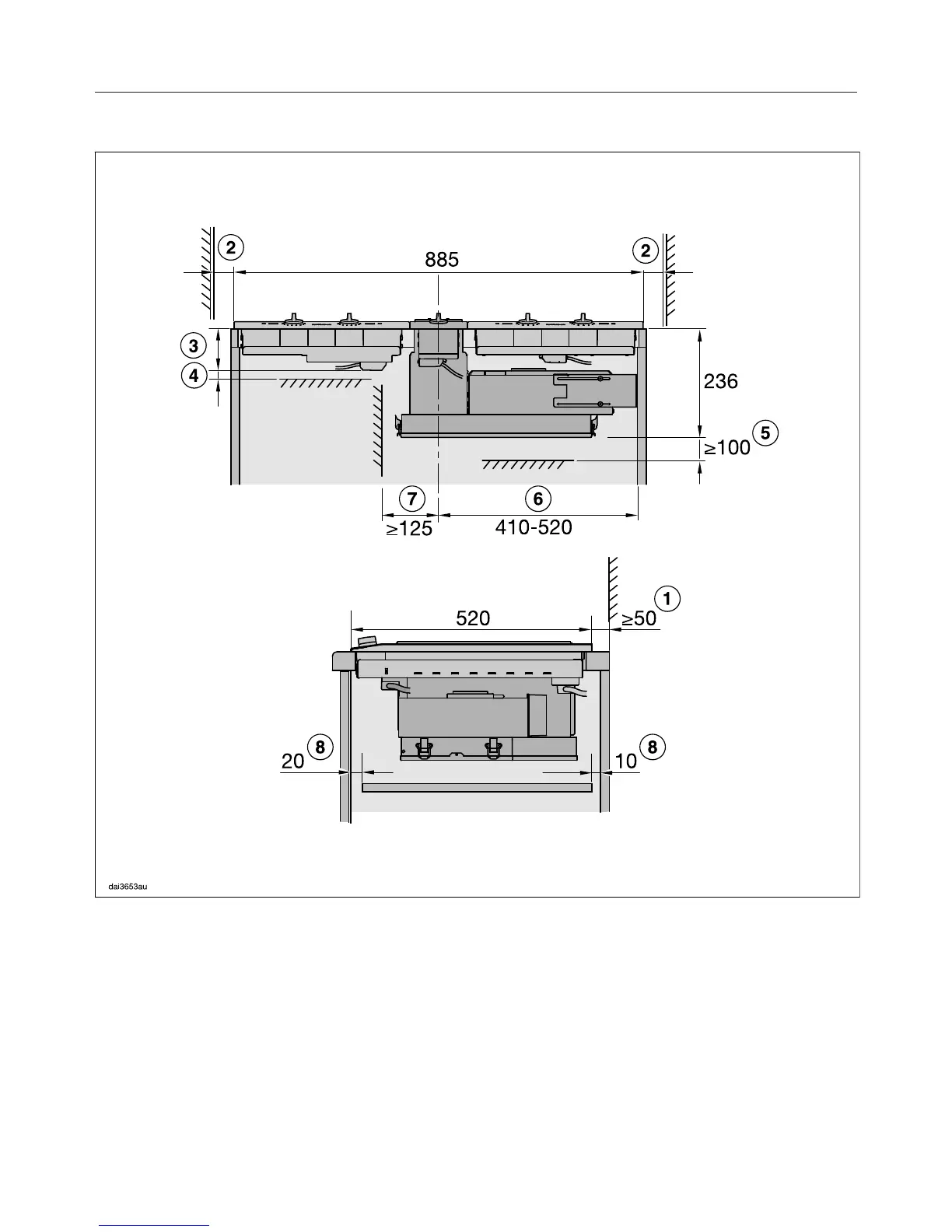

Building-in dimensions
The drawing is not to scale.
a
Safety distance from the back edge of the CombiSet to a vertical surface.
b
Safety distance right or left from the edge of the CombiSet to a wall, tall unit or
combustible niche cladding:
40mm for the induction cooktop (CS 1222)
50mm for the TepanYaki (CS1327)
A tall unit or wall located on both sides is not allowed.
A tall unit or wall located directly beside the CombiSet is not recommended.
