Miele ProLine CSDA 1010 - Changing the Exhaust Direction;Fan Position

Installation
28

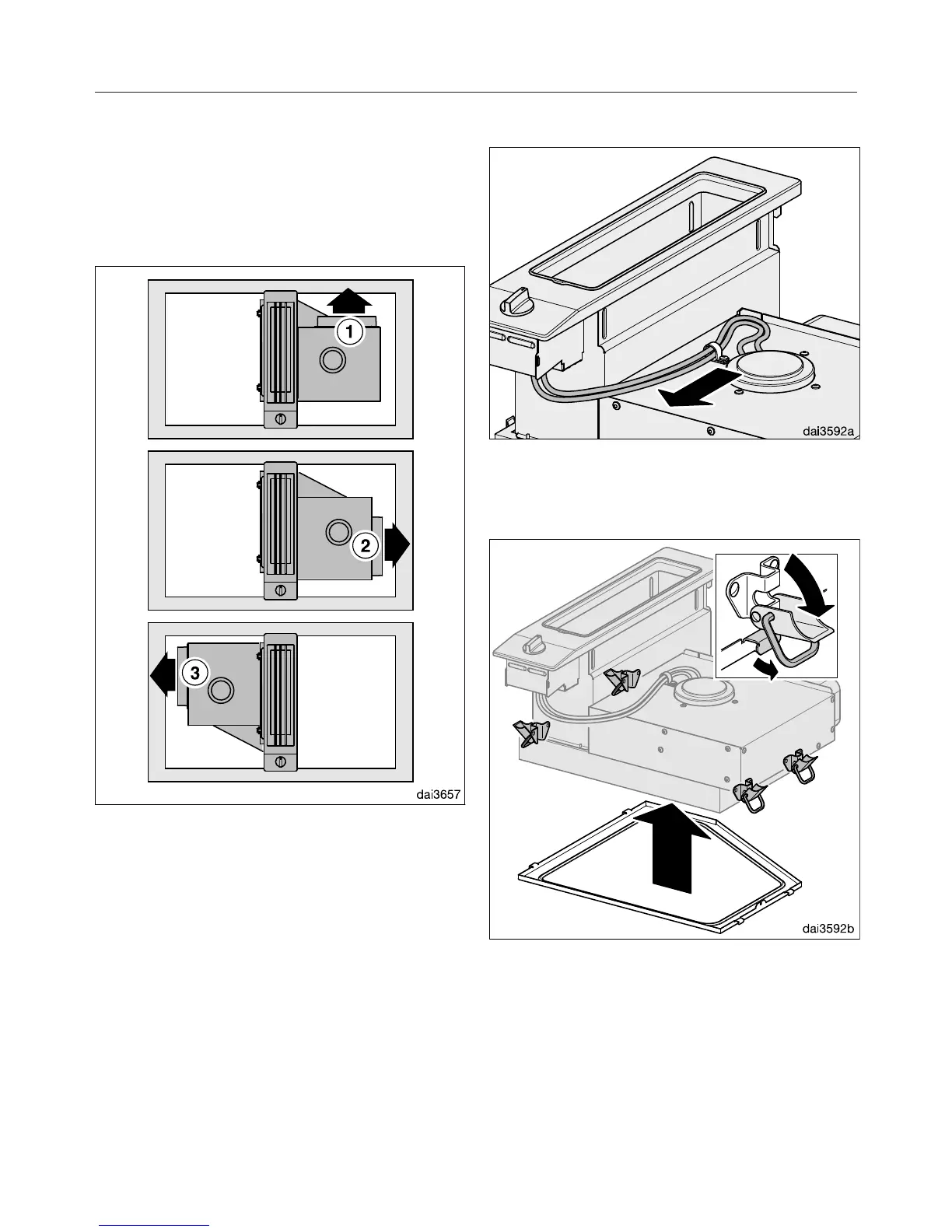

Changing the exhaust
direction/fan position
By modifying the downdraft extractor, it
is possible to change the position of the
fan and the exhaust connection.
a
Fan on right-hand side, exhaust
direction to the rear (factory default
position).
b
Fan on right-hand side, exhaust
direction to the right (fan rotated).
c
Fan on left-hand side, exhaust
direction to the left (fan and housing
rotated).
 Place the downdraft extractor on a
soft surface.
Rotating the fan
 Pull the connection cable through the
holder a little to allow the fan to be
rotated unhindered.
 Open the four latches and detach the
downdraft extractor from the moisture
collection tray.
