Installation
30

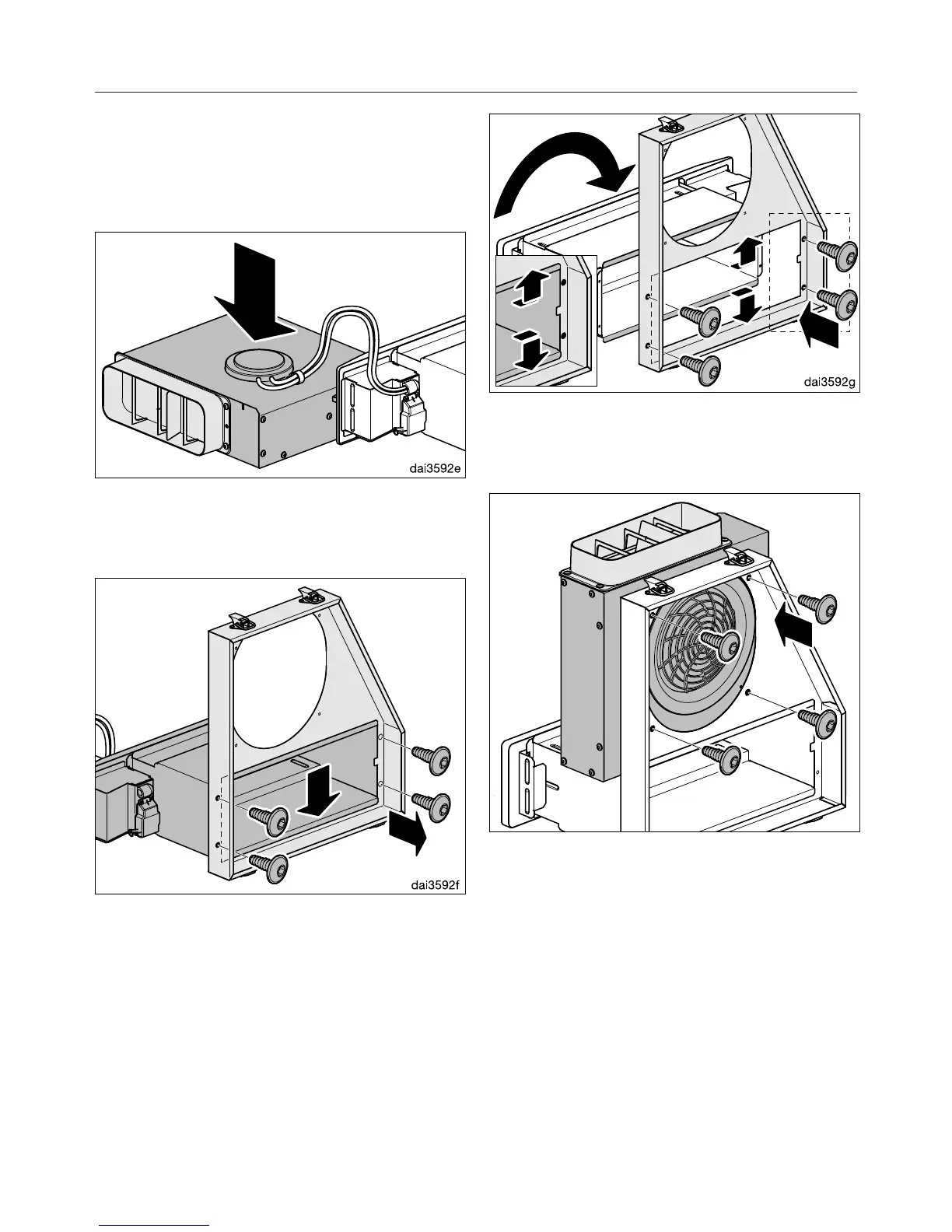

Rotating the housing
If the fan is to be positioned on the left-
hand side, the housing also needs to be
rotated.
Remove the fan as described
previously and place to one side.
Feed through the cable.
Unscrew the four screws from the
lower housing and remove it from the
upper housing.
Rotate the upper housing 180°, insert
it into the lower housing again, and
screw it into place.
Screw the fan into place in the
required position.
Position the connection cable as
described previously and secure the
downdraft extractor to the top of the
housing again.
