Installation
33

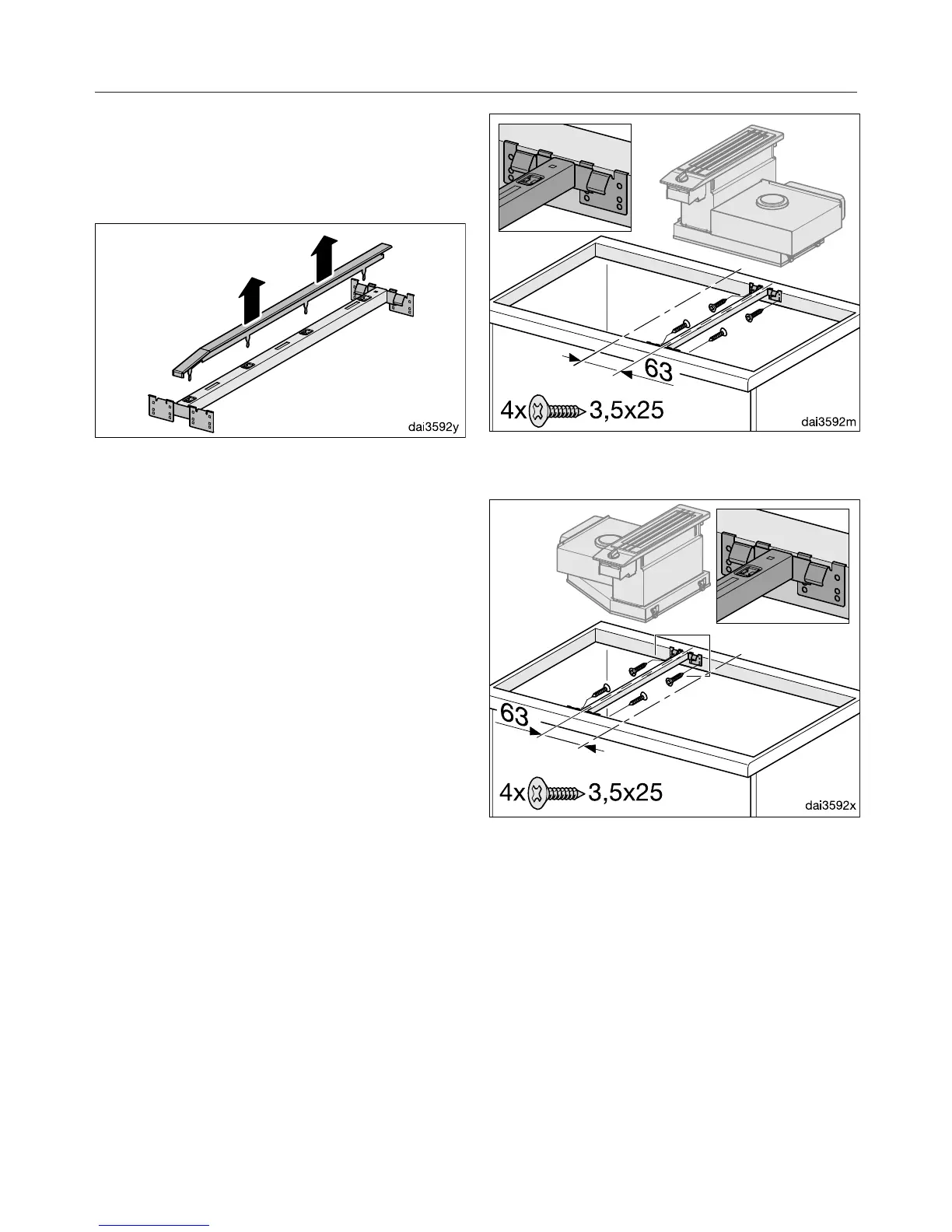

The downdraft extractor is secured in
the cut-out with two spacer bars.
Initially only the bar on the fan side is
installed in the cut-out.
Remove the covers from the spacer
bars.
Right mounted fan: Install the bar to the
right of the centre of the cut-out.
Left mounted fan: Install the bar to the left of
the centre of the cut-out.
Position the spacer bar so that its top
edge is flush with the top of the cut-
out, and secure it in the cut-out with
the screws supplied. Ensure the
spacer bar is installed with the
marking at the front of the cut-out.
