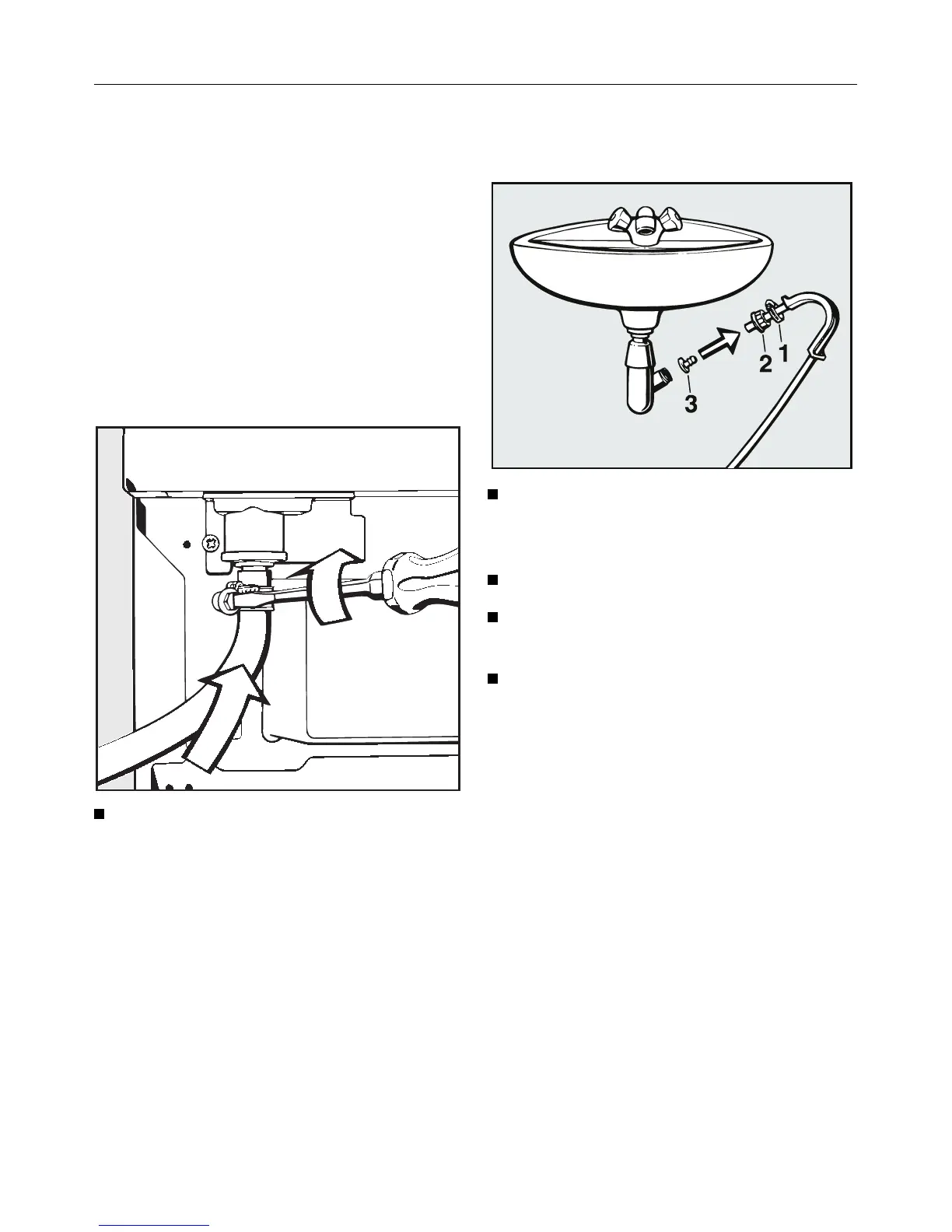

External drainage of the condensed water
The condensed water can be drained
off directly if the machine is installed
near a sink, drain outlet, gully etc.
Accessories supplied:
– Drain hose 2 m
– Hose clamp
– Rubber connection sleeve
– Hose clip
Installation
Push the drain hose onto the drain
outlet. Make sure that the hose is
firmly secured by the clip and not
kinked.
max. drain hose length: 3.00 meters
max. delivery head: 1.00 meters
The machine is fitted with a non-return
valve as standard to prevent water
from flowing back into the machine.
Connection to wash basin drain out-
let (where appropriate)
Push the hose clip (1) and the
knurled nut connector from the sink
drain outlet (2) over the drain hose.
Push the sleeve (3) into the hose.
Screw the drain hose to the drain out-
let with the knurled nut connector.
Tighten the hose clip up close to the
nut.
External drainage of the condensed water
31
