Installation examples
The moist air can be directed to the out-
side using a Wall vent kit* or a Window
vent kit*.
The kits/parts (marked *) are available
from your Miele Dealer or the Miele
Spare Parts Dept.

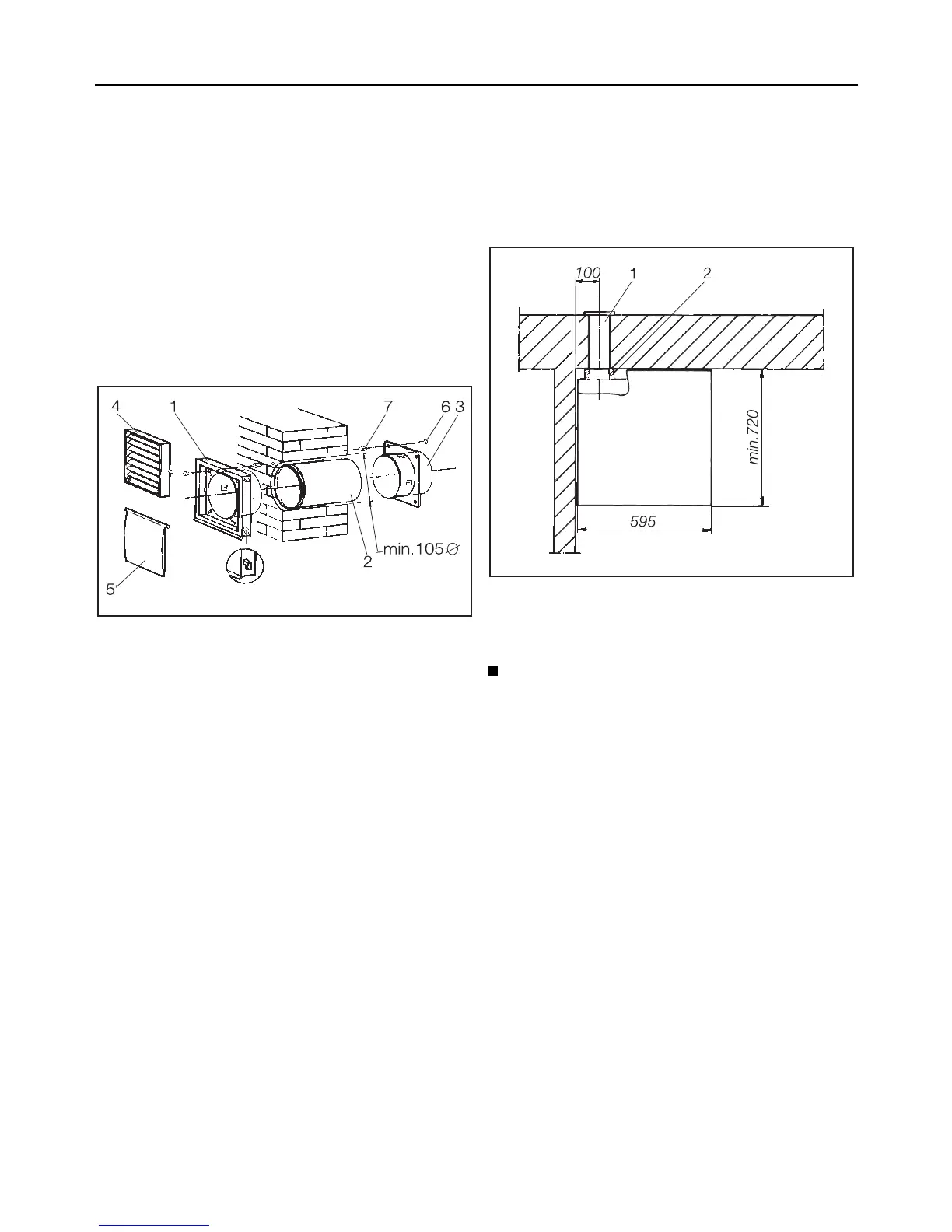

Wall vent kit* (with necessary parts)
1. Louvre frame
2. Wall pipe
3. Connecting piece
4. Louvre grill
5. Flap
6. Wood screw
7. Wall plug
Connection directly to a wall vent
If the dryer is connected direclty to a
wall vent a flexible foam gasket* is re-
quired.
1. Wall pipe*
2. Flexible foam gasket*
Fit the gasket to the connecting
piece on the wall pipe
and push the dryer up against the
wall.
Installation - venting
