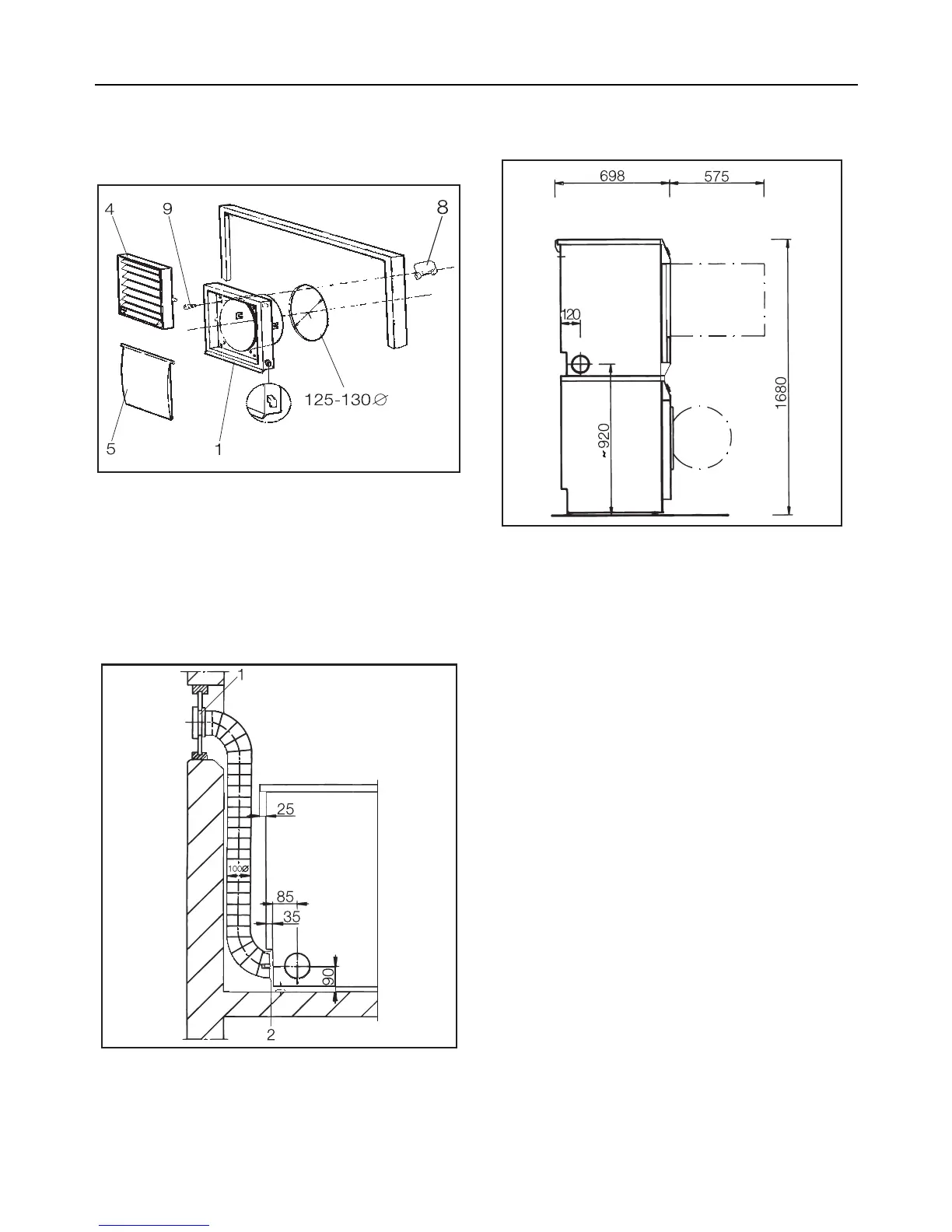

Window vent kit* (with necessary
parts)
1. Louvre frame 4. Grille
5. Flap 8. Clip (4x)
9. Raised head screws (4x)
Window vent kit* with flexible
ducting*
1. Window vent*
2. Adapter for flexible ducting
Ø 100 mm
(Window vent fitted in plexiglass pane)
Washer/Dryer stack
Height of venting outlet for
washer/dryer stack.
Installation - venting
32
