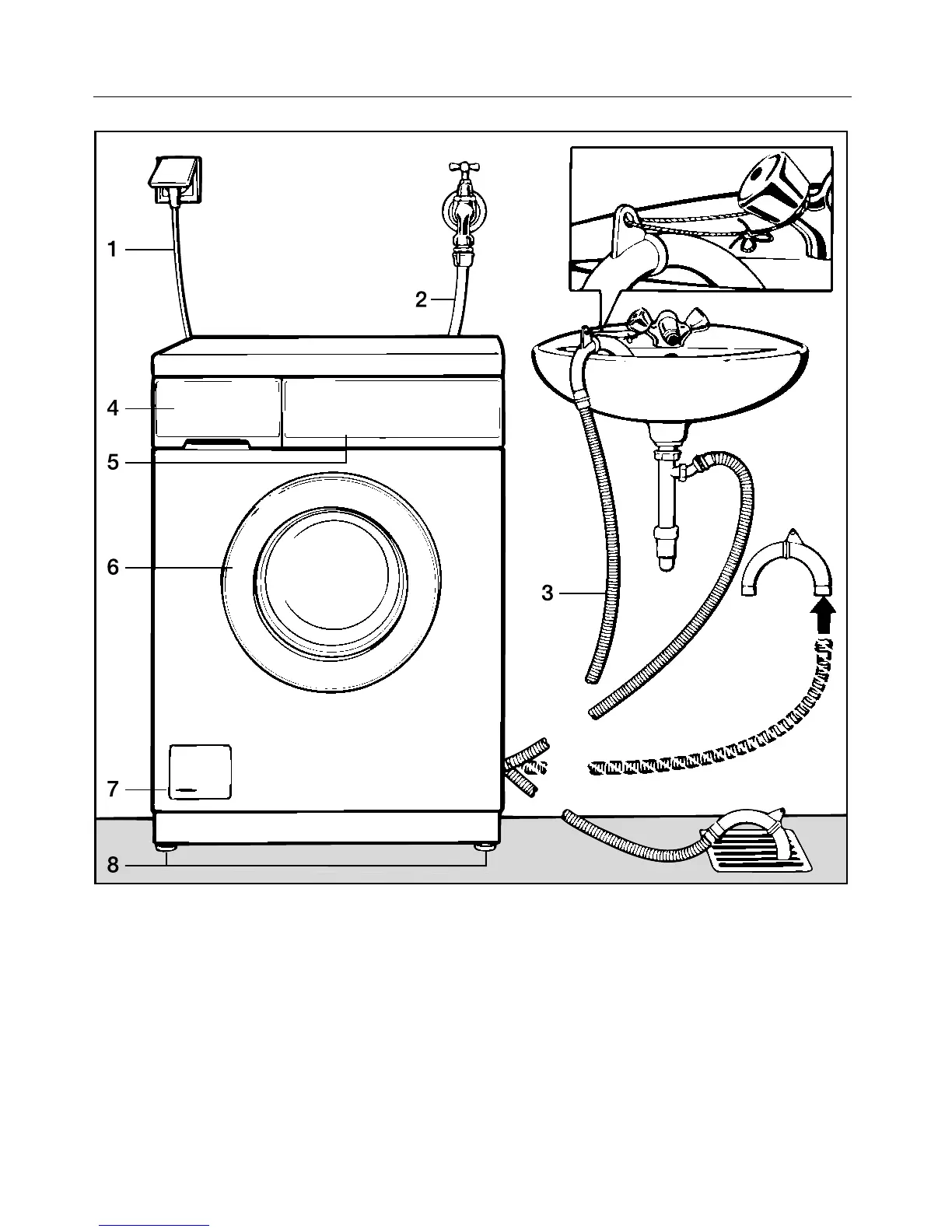

Guide to the machine
1 Supply cable
2 Inlet hose (able to withstand press
ures up to 70 bar)
3 Flexible drain hose, with detachable
swivel elbow
4 Detergent dispenser drawer
5 Facia panel with controls
6 Drum door
7 Access panel - drain pump and fil-
ter, emergency door opener
8 Four height adjustable feet
