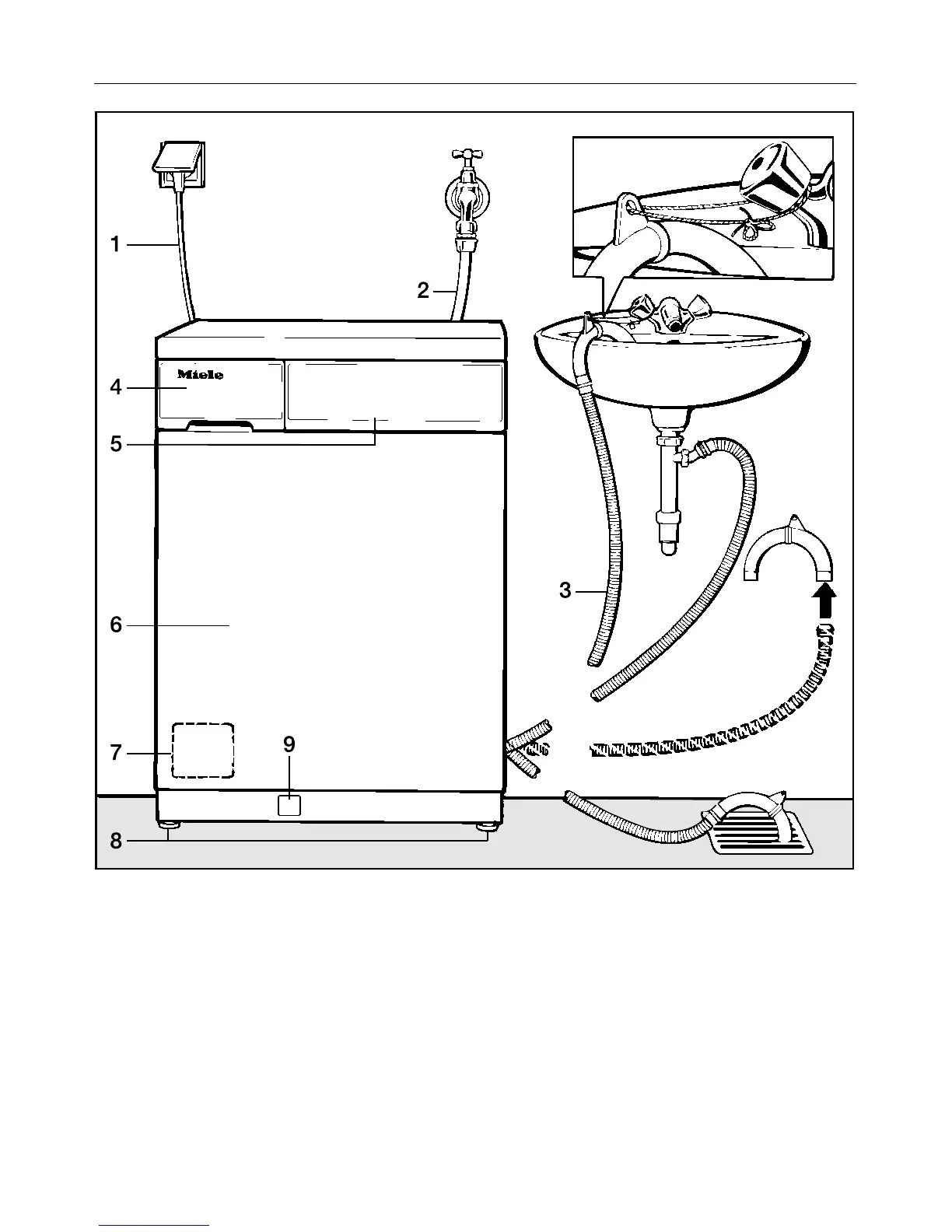

Guide to the machine
1 Electric supply cable
2 Inlet hose (able to withstand
pressures up to 70 bar)
3 Flexible drain hose (with detachable
swivel elbow)
4 Detergent dispenser drawer
5 Facia panel with controls
6 Drum door
7 Panel for access to fluff filter and drain
pump
8 Four height adjustable feet
9 Panel for emergency drainage and
emergency door release
Guide to the machine
3
