Installation beneath a counter
If a countertop is placed over the
washer, at least a
1
/
4
" gap must be
left between the top of the machine
and bottom of the countertop;
nothing should be within
1
/
2
" of any
other side of the washing machine.
–
When the machine lid needs to be
removed to reduce the height of the
machine, a countertop kit* is
necessary. The cover plate in the
countertop kit replaces the machine
lid and ensures electrical safety.
– A filler frame* is recommenced at a
countertop height of 35
7
/
16
" to
35
13
/
16
" (90-91 cm)
– Water intake, drain and electrical
connections should be installed near
the machine and be easily
accessible.
An installation manual is supplied with
the countertop kit.
(* available from your Miele dealer or
Miele’s Technical Service Department).
Washer stand with drawer
A washer stand is available to raise the
machine for convenience. It has a
drawer to store cleaning essentials.
The stand can be purchased as an
optional accessory.

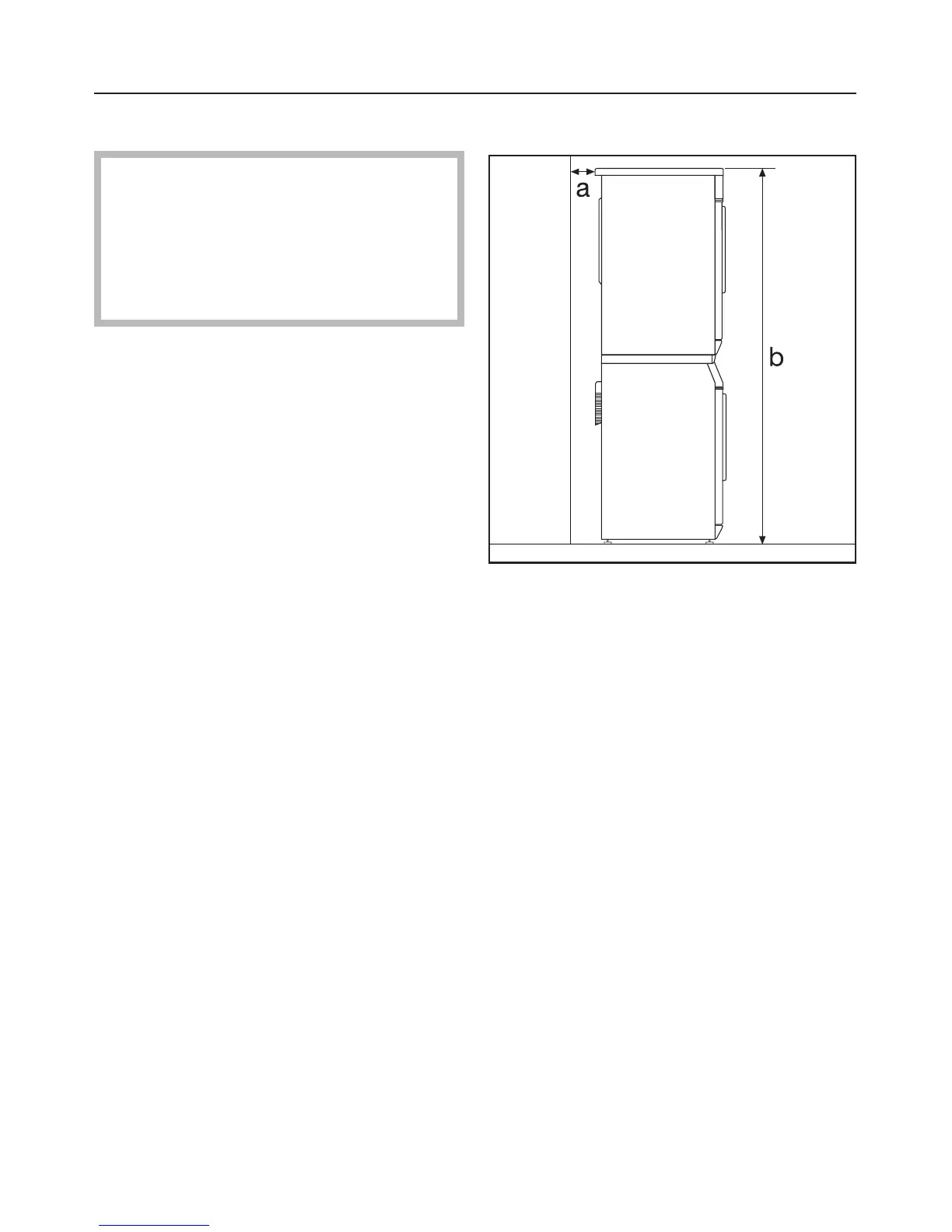

Washer/ Dryer Stack
The Miele washing machine can be
installed as part of a washer-dryer
stack in combination with a Miele
tumble dryer. An appropriate "stacking
kit" is required (part # 12 996 026).
(* available from your Miele dealer or
Miele’s Technical Service Department.)
Note:
a Safety distance to the wall:
minimum
13
/
16
" (2 cm)
b Height:
Stacking kit with pull out shelf
66
15
/
16
" (170 cm)
Reinstallation of the machine lid
When reinstalling the machine lid,
check the fit of the cover at the rear
bracket to ensure safe transport.
Installation
44
