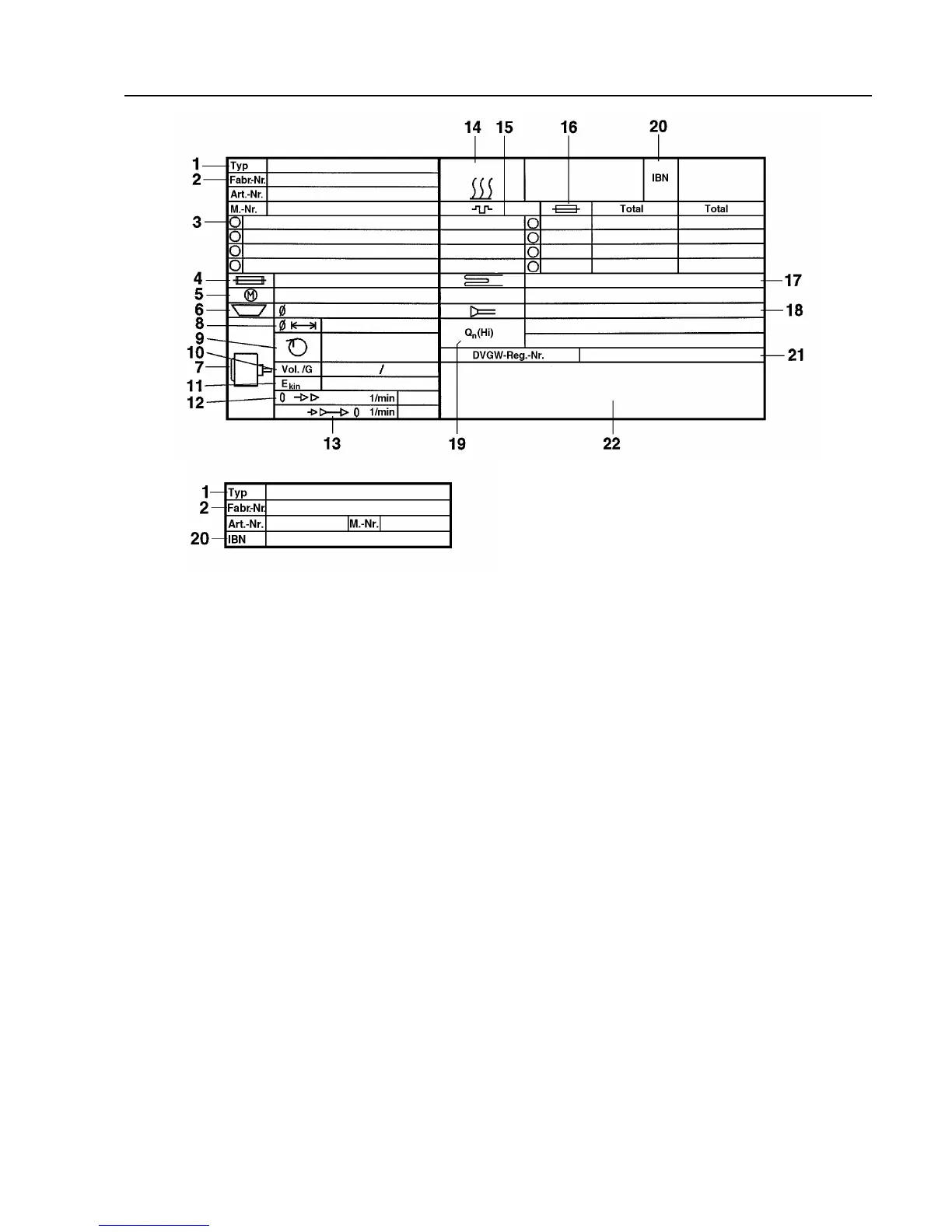

Explanation of symbols on the data plate
1 Machine type
2 Machine number/year of manufacture*
3 Voltage/Frequency
4 Control fusing
5 Drive motor
6 Plate diameter*/Plate quantity*
7 Drum data
8 Drum diameter/drum depth
9 Spin speed
10 Drum volume/Laundry dry weight
11 Kinetic energy
12 Ex. time to top speed
13 Braking time
14 Heating
15 Electric heating
16 Fusing (on site)
17 Steam heating indirect*
18 Steam heating direct*
19 Gas heating*
20 Commissioning date
21 Water registration DVGW-test cert (Water)*
22 Field for CE test symbol....(Product-ID-No./
Gas)*
*)not applicable to WS 5071
Noise emission
During wash During spin
58.5 dB 74.3 dB
(measured in Germany in accordance with
DIN (IEC) 45 635, machine noise regulations
3. GSGV p1. 1.a)
31 M.-Nr. 05616270
