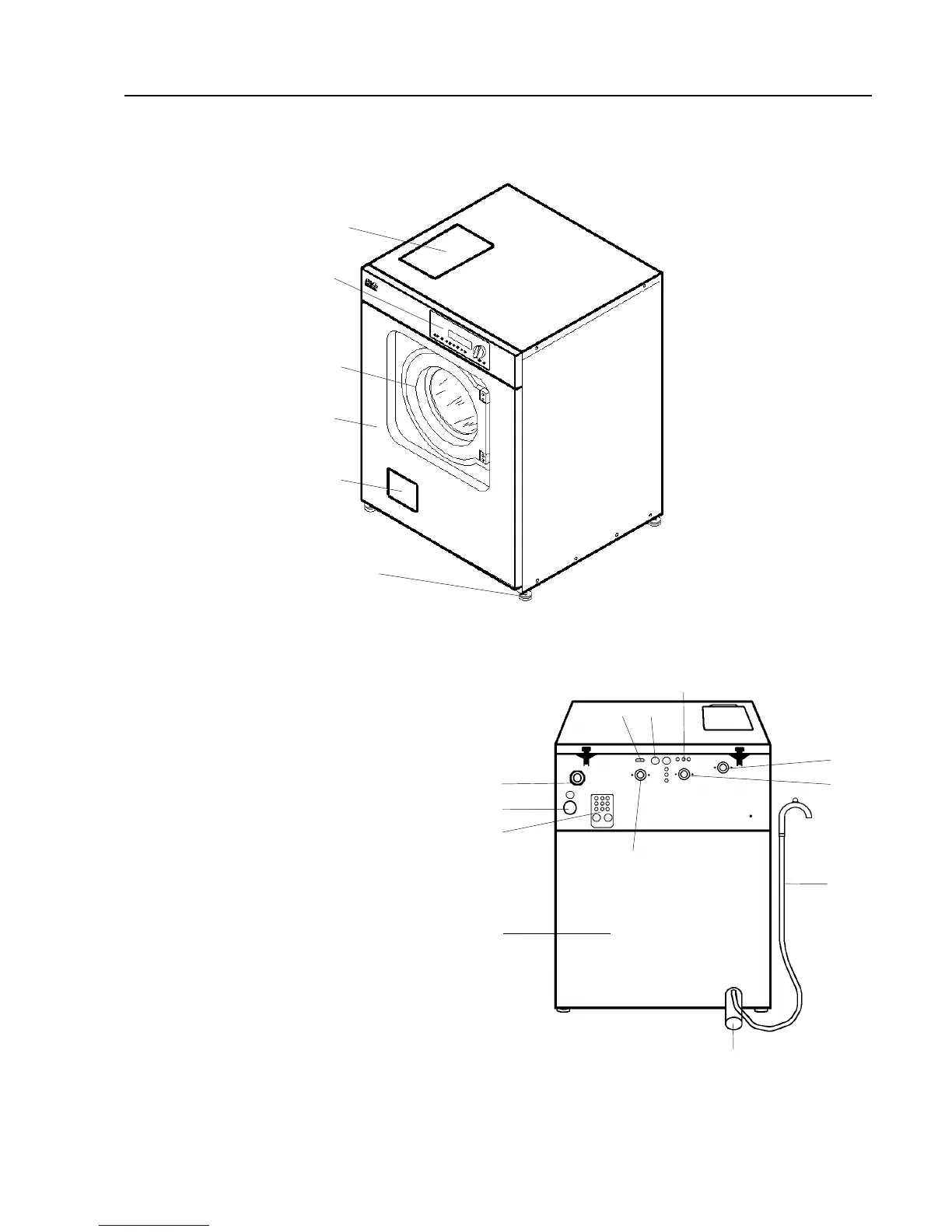

Guide to the machine
WS 5071 washer extractor with drain valve or drain pump option
1 Cold water connection
2 Hot water connection
4 Cold water connection for
liquid dispensing
5 Venting socket
6 Cable entry for power supply
8 Liquid dispenser box
10 Cable entry for
dispenser pumps
11 Cable entry for
3 dispenser pumps
12 Serial interface for printer
13 Drainage (for drain valve version)
14 Drainage hose (for drain pump version)
15 Back wall
7 Cable entry for extra equipment
Detergent dispenser box
Control panel
Drum door
Front wall panel
Flap for suds filter/
drainage system and
emergency door
release
Four adjustable
screw feet
k
ml
b
gc
f
i
e
o
p
n
7 M.-Nr. 05616270
