Philips Semiconductors Rev. 1.0 November 2002
13.56 MHz RFID Proximity Antennas mifare
®
(14443A)
7 PUBLIC
3.2 Data Transmission PCD Æ PICC
To transfer data between the PCD and the PICC a half-duplex communication structure is used. The PCD
always starts the communication (“reader talks first”). The data transmission from the PCD to the PICC uses
a 100% ASK modulation according to the ISO14443 Type A. Figure 3 shows a typical signal shape.

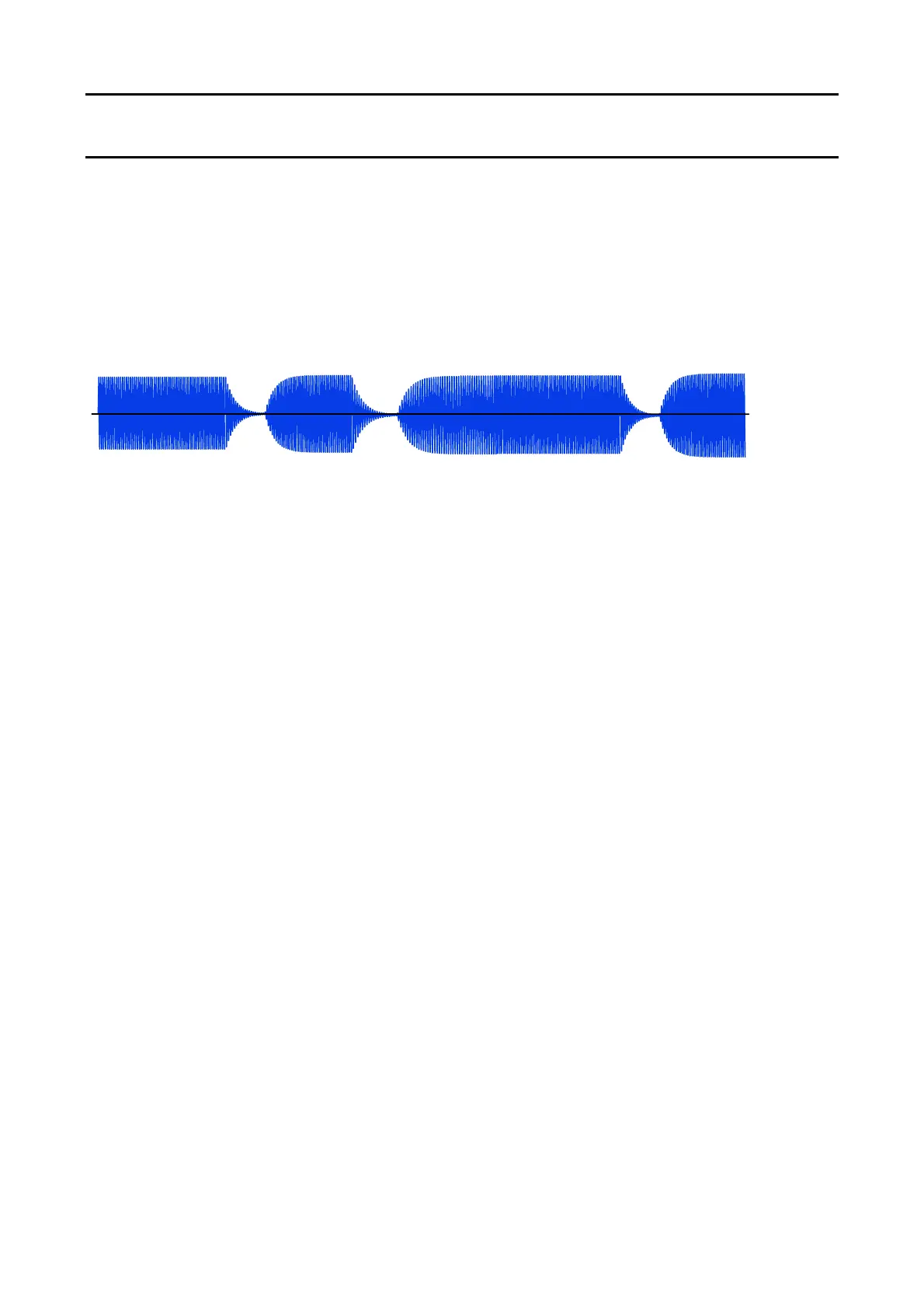

Figure 3: Data Transmission PCD
Æ
PICC, typical signal shape
Due to the quality factor Q of the antenna the transmitted signal is deformed to the shape shown in Figure 3.
This shape can be used to measure the tuning of the antenna. For details refer to the “MIFARE
®
and I Code,
Micore Directly Matched Antenna Design”.
As the PICC is passive, the energy for the PICC has to be provided during the communication between PCD
and PICC. Therefore, MIFARE
®
(ISO14443A) uses an optimised coding to provide a constant level of energy
independently from the data transmitted to the PICC. This is the modified Miller code, which is shown is
shown in Figure 4 in detail.
