ENCLOSURE KIT INSTALLATION OPTIONS
There are two available choices for Battery Enclosure Kit installations.

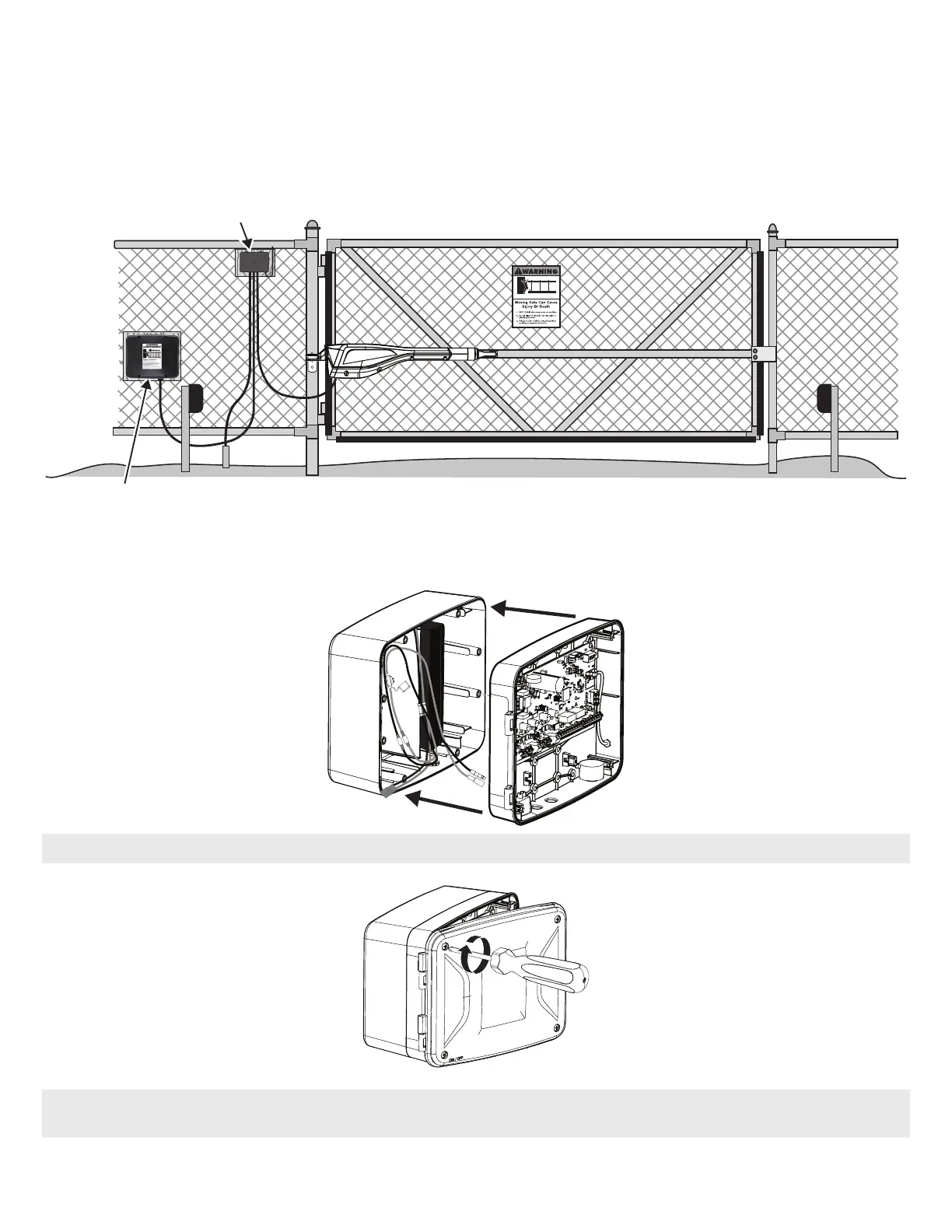

For MM271 and MM272 installations, the Battery Enclosure Kit will need to be installed separately from the Control Box (see
Figure 1). This method is NOT required for MM371W, MM372W and TS571W installations, but it may be used.
Separate Battery Enclosure Kit (required for MM271 and MM272)
Battery Enclosure Kit Combined with Control Box (available for MM371W, MM372W and TS571W)
This option allows MM371W, MM372W and TS571W owners to mount the Battery Enclosure Kit behind the Control Box and
cover.
See Mount the Battery Enclosure Kit on page 7.
Battery Box
Control Box
Figure 1
1. Once the Battery Enclosure Kit is mounted, the Control Box will mount onto the Battery Enclosure Kit.
2. The Control Box Cover is then attached to the to the Control Box. The provided Battery Enclosure Kit Cover may be
discarded.
