Feed the Control Box end of Battery Harness A through the Strain Relief tting as displayed above.
MM272 INSTALLATION PREPARATION
MM272 BATTERY INSTALLATION
This section covers battery installation for the MM272. However, this set of instructions for a separate Control Box installation
can also be used for MM371W, MM372W and TS571W installations. See MM371W, MM372W, TS571W Battery Enclosure Kit
Setup, page 17, for instructions on the preferred method for MM371W, MM372W and TS571W installations.

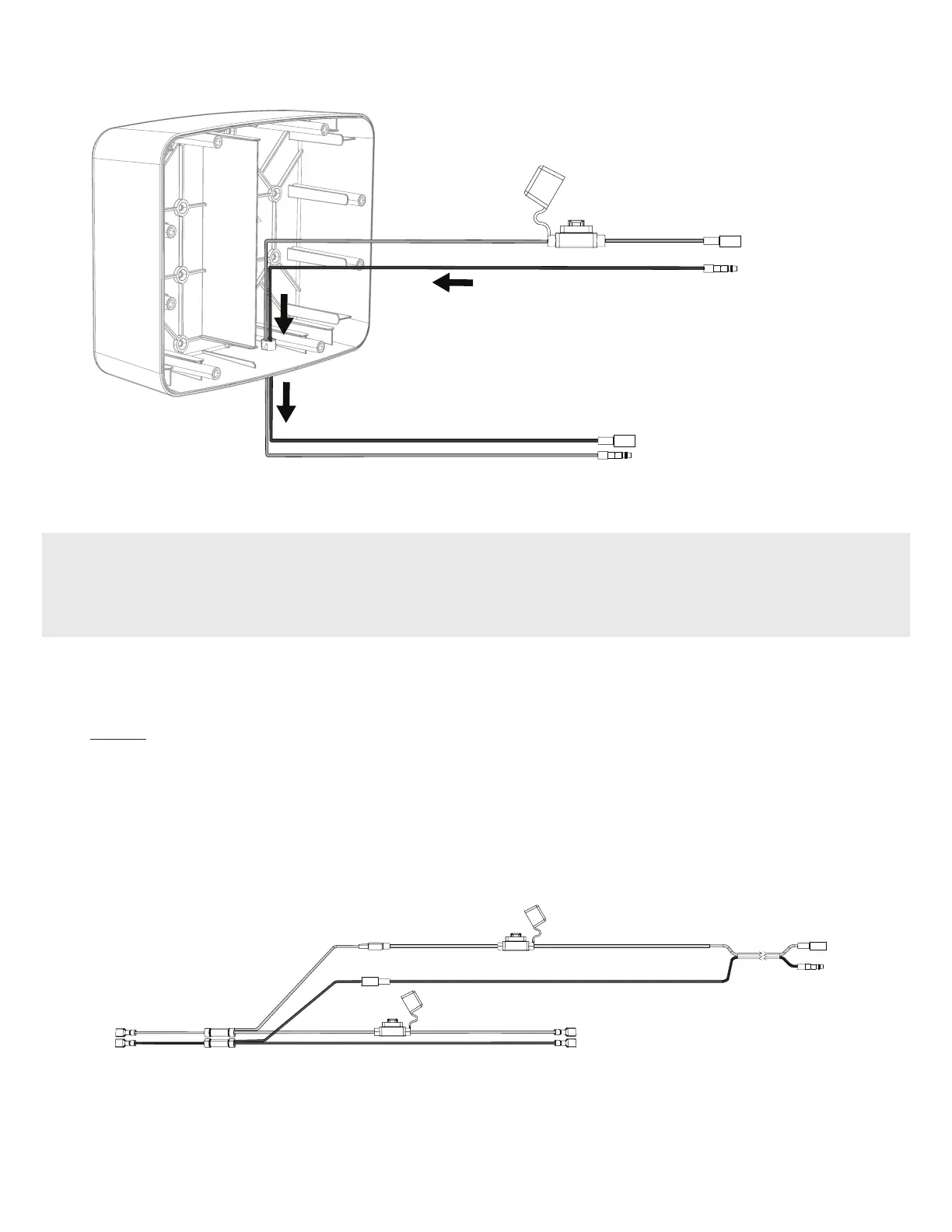

To complete construction of the required harness, connect Battery Harness A to Battery Harness B (refer to the diagrams on
this page).
NOTE: Either end of the newly constructed Battery Harness may be connected to the rst battery. The opposite battery
connection is available for a second battery.
Battery Harness A
Battery Harness B
Red +
Black –
Black –
Red +
Black –
Black –
Red +
Red +
Red +
Black –
Connect to
Control Box
Connect to
Battery 1
Connect to
Battery 2
To Next Page
