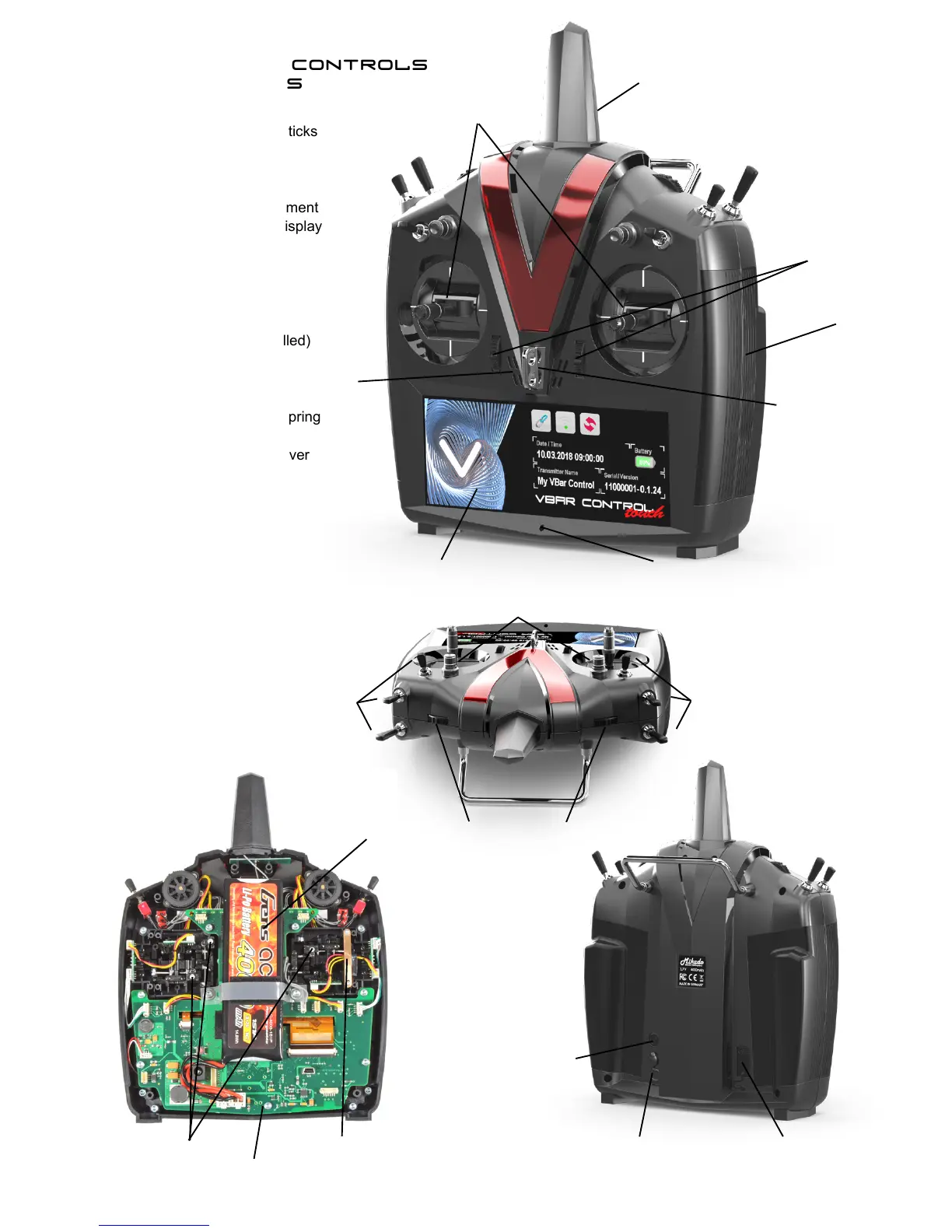

Transmitter Controls
and Features
■ Antenna
■ Gimbals with Adjustable Sticks
■ Trim Wheels 1+2
■ Rubber Grip Lining
■ Speaker
■ 2-point Neck-Strap Attachment
■ 5.8” Touchscreen Color Display
■ Ambient Light Sensor
■ Rotating knobs 1+2
■ Switches 1-6
■ Carrying handle
■ Trim Wheels 3+4
■ Transmitter Battery (installed)
■ Power Button
■ Stick Tensioners
■ Main Board
■ Collective Stick Brake & Spring
■ Charging Connector
with Protective Rubber Cover
■ USB Connector with
Protective Rubber Cover
USB Connector with
Protective Rubber
Cover
Charging Connector
with Protective Rubber
Cover
Power Button
Stick Tensioners
Main Board
Collective Stick
Brake & Spring
Transmitter Battery (installed)
Gimbals with
Adjustable Sticks
Trim Wheels 1+2
Antenna
Rubber Grip
Lining
5.8” Touchscreen Color Display
Ambient Light Sensor and LED
2-point Neck-Strap
Attachment
Speaker
Switches 1-3
Switches 4-6
Rotating Knobs 1+2
Carrying handle
Trim Wheels 3+4
