MikroTik cAP ac User Manual

1.
2.
3.
1.
2.
3.
4.
5.
6.
The device accepts power from the Ethernet port, so you must either use the included passive PoE injector or make sure your switch supports passive or
802.3af/at PoE output.
Ethernet port accepts 12-57 V DC (802.3af/at or passive PoE).
The power consumption under maximum load can reach 13 W.
Connecting to a POE Adapter:
Connect the Ethernet cable from the device to the POE port of the POE adapter.
Connect an Ethernet cable from your LAN to the LAN port of the POE adapter, please mind arrows for data and power flow.
Connect the power cord to the adapter, and then plug the power cord into a power outlet.
Mounting
It is possible to attach the device to a wall or ceiling, using the provided mounting bracket on the back of the unit:
Attach the mounting bracket to the wall or ceiling with provided three screws;
Use 5 mm drill bit if necessary with provided dowels;
Connect needed cables to the device;
If needed second mounting bracket can be used for additional support when working on thin ceilings or walls, provided screw length is 20 mm;
Attach the second mount to the other side of the ceiling and secure with screws through the first mount;

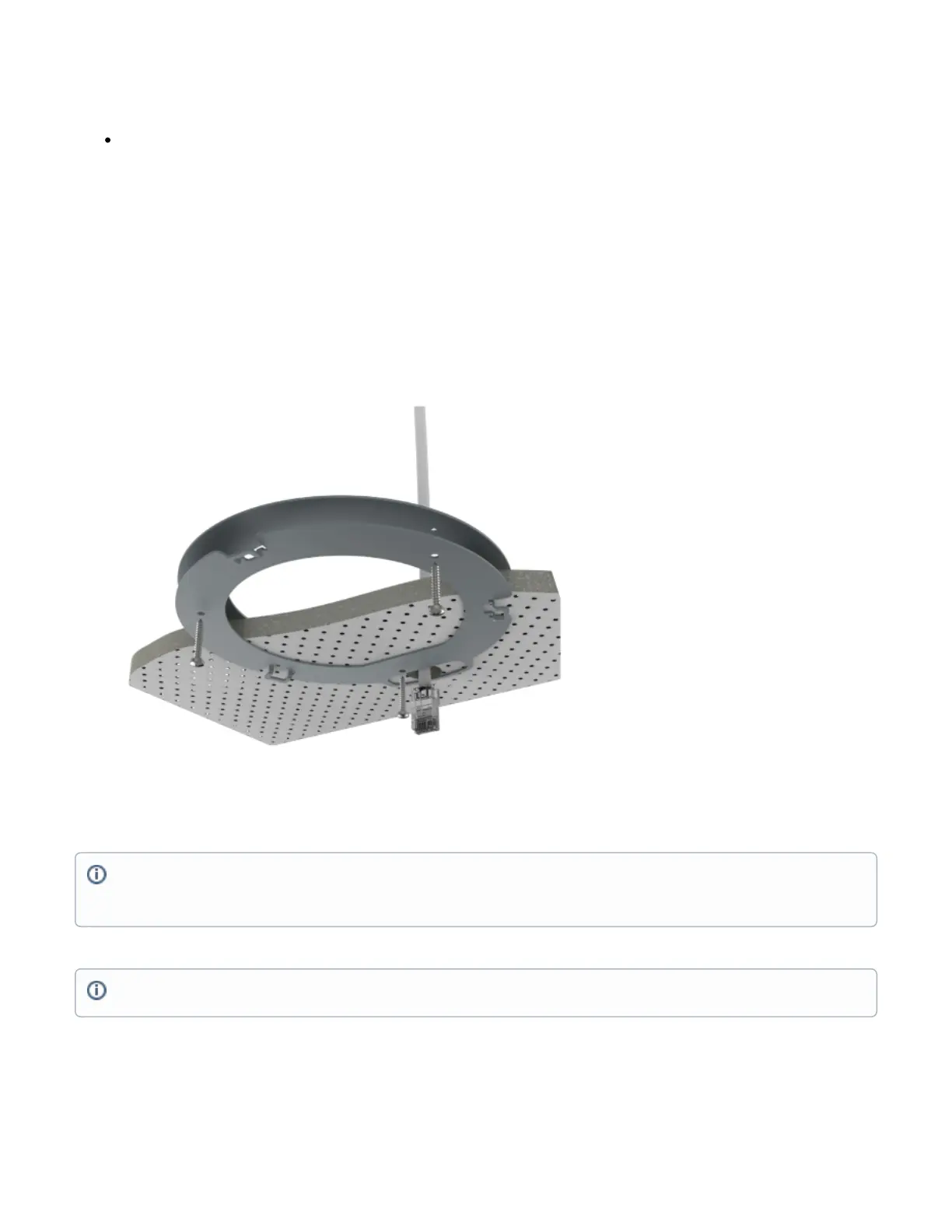

Attach the device to the mounting bracket and turn clockwise until the device secures in place;
Configuration
Mounting and configuration of this device should be done by a qualified person.
Warning! This equipment should be installed and operated with a minimum distance of 20 cm between the device and your body. Operation of
this equipment in the residential environment could cause radio interference.
Operating humidity can be from 5% to 95% non-condensing.

MikroTik cAP ac Specifications

General

Internal	No
Placement	Wall
Product type	-
Product color	White
Processor cores	4
Processor model	Qualcomm Atheros IPQ4018
Built-in processor	Yes
Processor frequency	716 MHz
Networking standards	IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	54 Mbit/s
Ethernet LAN (RJ-45) ports	2
AC input voltage	17 - 57 V
Power source type	AC
Power consumption (typical)	13 W
Package width	145 mm
Package height	30 mm
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Ethernet LAN interface type	Gigabit Ethernet
Antenna gain level (max)	2.5 dBi
Flash memory	16 MB
Internal memory	128 MB
Operating system installed	RouterOS
Operating temperature (T-T)	-40 - 50 °C
