MikroTik cAP ax User Manual

1.
2.
3.
4.
PoE-Out ports
Ether2, max out per port output (input < 30 V): 600 mA, max out per port output (input > 30 V): 400 mA. Over 300 mA current, please use a DC
jack for powering the device.
Number of DC inputs 2
Supported input voltage 18-57 V (DC jack) 18-57 (PoE-In)
Max power consumption (without attachments) 9 W
Max power consumption 28,2 W
Mounting

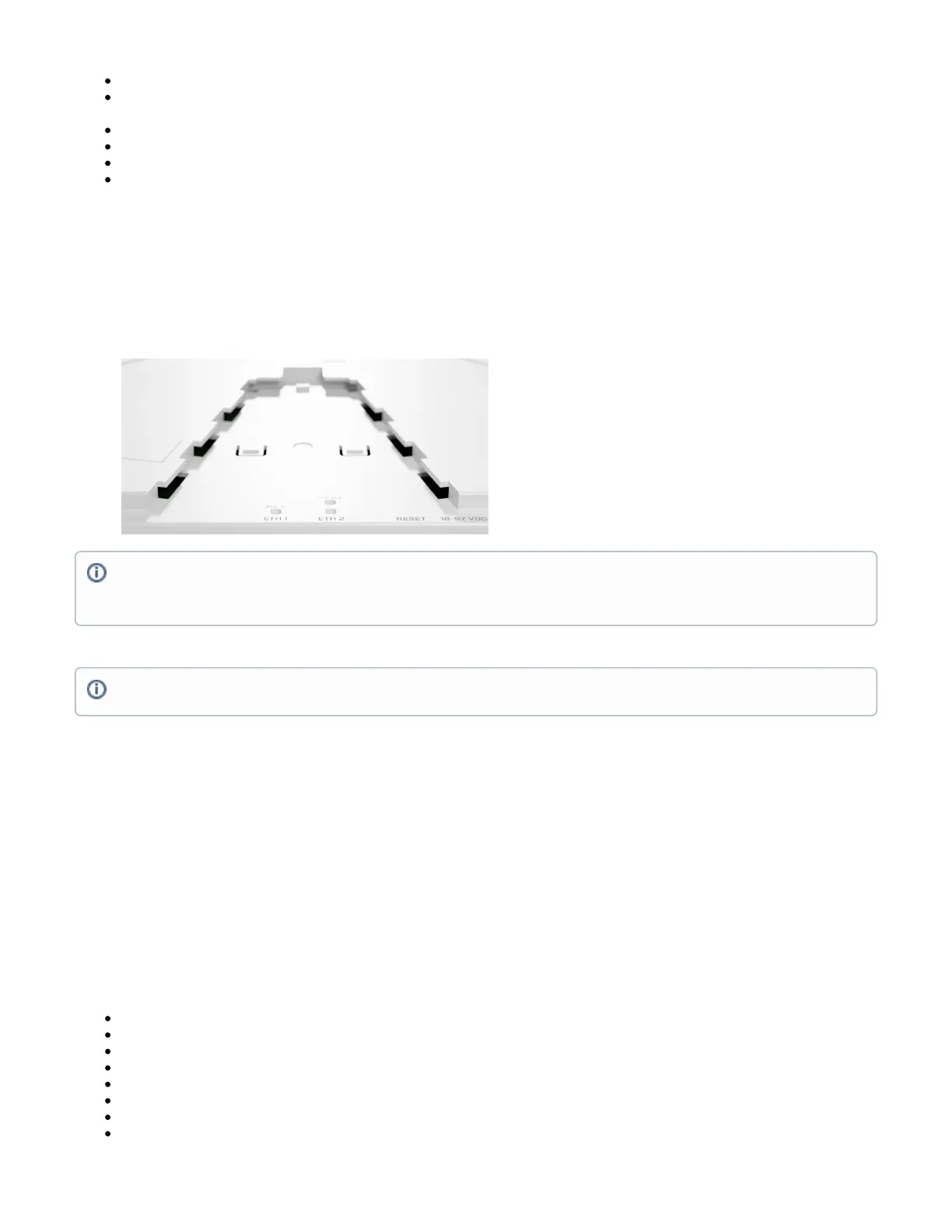

It is possible to attach the device to a wall or ceiling, using the provided mounting bracket on the back of the unit:
Attach the mounting bracket to the wall or ceiling with provided screws;
Use drill bit if necessary with provided dowels;
Connect needed cables to the device;
Attach the device to the mounting bracket by sliding.
Configuration
By default, the device is configured as a wireless access point, with the first ethernet port (Eth1) configured as a DHCP client, and the second interface
bridged together with the wireless interface. A DHCP server is configured on the bridge interface.
Once logged in, we recommend clicking the "Check for updates" button in the QuickSet menu, as updating your RouterOS software to the latest version
ensures the best performance and stability. For wireless models, please make sure you have selected the country where the device will be used, to
conform with local regulations.
RouterOS includes many configuration options in addition to what is described in this document. We suggest starting here to get yourself accustomed to
the possibilities: . In case IP connection is not available, the Winbox tool ( ) can be used to connect to the MAC address https://mt.lv/help https://mt.lv/winbox
of the device from the LAN side (all access is blocked from the Internet port by default).
For recovery purposes, it is possible to boot the device from the network, see a section .Reset button
Expansion slots and ports
Product code cAPGi-5HaxD2HaxD
CPU Quad core IPQ-6010 1.8 GHz
Size of RAM 1 GB
RAM type DDR3L
Storage 128 MB, NAND
Number of 1G Ethernet ports 2
Wireless interface model QCN-5022 (2.4 GHz), QCN-5052 (5 GHz)
Wireless 2.4 GHz 802.11b/g/n/ax dual-chain, 5 GHz 802.11a/n/ac/ax dual-chain
Mounting and configuration of this device should be done by a qualified person.
Warning! This equipment should be installed and operated with a minimum distance of 30 cm between the device and your body. Operation of
this equipment in the residential environment could cause radio interference.
Operating humidity can be from 5% to 95% non-condensing.

MikroTik cAP ax Specifications

General

2.4 GHz	Yes
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1774 Mbit/s
Maximum data transfer rate (5 GHz)	1200 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Output current	0.4 A
DC voltage range	18 - 57 V
Power consumption (max)	28.2 W
Power over Ethernet (PoE) type supported	Passive PoE
Placement	Ceiling
Certification	CE, FCC, IC, EAC, ROHS
Product color	White
International Protection (IP) code	IP20
Security algorithms	WPA3-EAP, WPA3-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Antenna type	Internal
Internal memory	128 MB
Processor model	IPQ-6010
Operating system installed	RouterOS
Number of products included	1 pc(s)
Operating temperature (T-T)	-40 - 70 °C

Weight and Dimensions

Width	228 mm
Height	48 mm
