MikroTik cAP ax User Manual

Antenna gain 5.5 dBi
Operating system RouterOS v7, License level 4
Switch chip model IPQ-6010
Dimensions 228 x 48 mm
Operating temperature -40°C to +70°C tested
Buttons and jumpers
Reset button
The reset button has three functions:
Hold this button during boot time until LED light starts flashing, release the button to reset RouterOS configuration (total 5 seconds).
Keep holding for 5 more seconds, LED turns solid, release now to turn on CAP mode. The device will now look for a CAPsMAN server (total 10
seconds).
Or Keep holding the button for 5 more seconds until LED turns off, then release it to make the RouterBOARD look for Netinstall servers (total 15
seconds).
Regardless of the above option used, the system will load the backup RouterBOOT loader if the button is pressed before power is applied to the device.
Useful for RouterBOOT debugging and recovery.
Mode button
The action of the mode buttons can be configured from RouterOS software to execute any user-supplied RouterOS script. You can also disable this button.
By default, the buttons will enable "dark mode", which disables LED lights. The mode button can be configured in the RouterOS menu /system routerboard
mode-button.

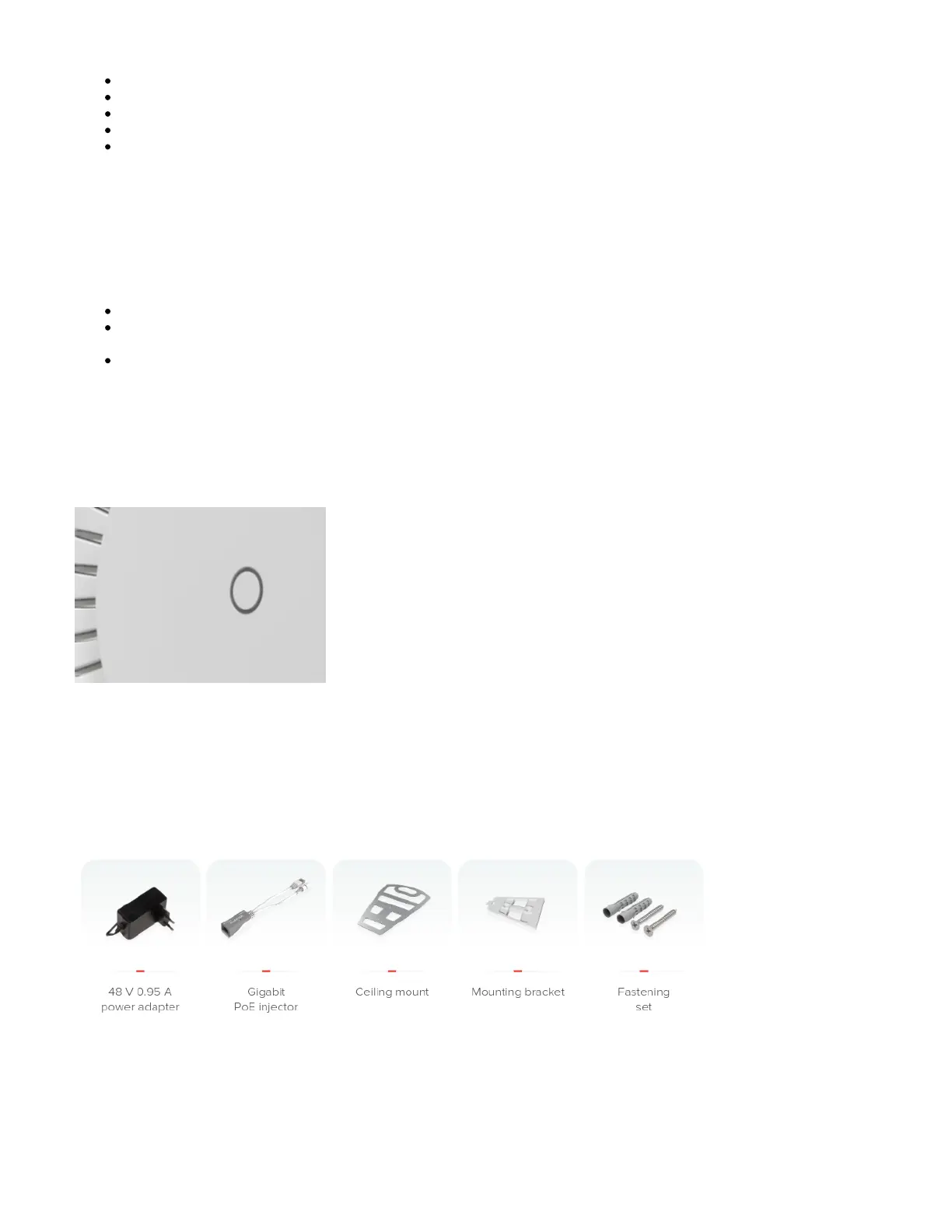

Accessories
The package includes the following accessories that come with the device:
Operating system support
The device supports RouterOS software version 7.8. The specific factory-installed version number is indicated in the RouterOS menu /system resource.
Other operating systems have not been tested.

MikroTik cAP ax Specifications

General

2.4 GHz	Yes
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1774 Mbit/s
Maximum data transfer rate (5 GHz)	1200 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Output current	0.4 A
DC voltage range	18 - 57 V
Power consumption (max)	28.2 W
Power over Ethernet (PoE) type supported	Passive PoE
Placement	Ceiling
Certification	CE, FCC, IC, EAC, ROHS
Product color	White
International Protection (IP) code	IP20
Security algorithms	WPA3-EAP, WPA3-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Antenna type	Internal
Internal memory	128 MB
Processor model	IPQ-6010
Operating system installed	RouterOS
Number of products included	1 pc(s)
Operating temperature (T-T)	-40 - 70 °C

Weight and Dimensions

Width	228 mm
Height	48 mm
