MikroTik MANTBox 52 15s Quick Start Guide

1.
2.
3.
1.
2.
3.
Direct-input power jack (5.5 mm outside and 2 mm inside, female, pin positive plug) accepts 12-57 V DC.
The power consumption under maximum load can reach 21 W.
Connecting to a PoE Adapter:
Connect the Ethernet cable from the device to the PoE+DATA port of the PoE adapter;
Connect an Ethernet cable from your local network (LAN) to the PoE adapter;
Connect the power cord to the adapter, and then plug the power cord into a power outlet.
Mounting

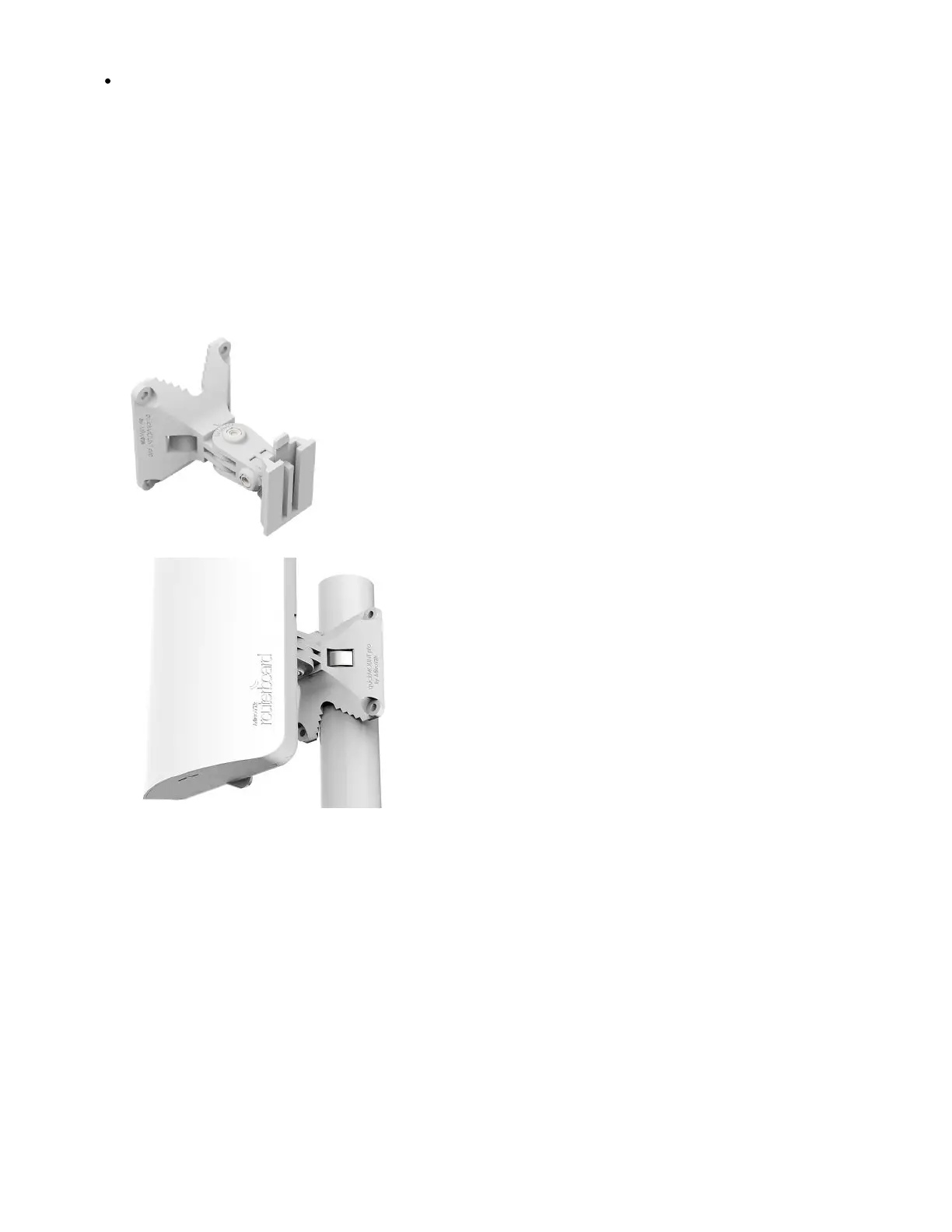

The mANTbox comes with a QuickMount adapter that can be attached to a wall using the included screws, or attached to a pole, using the included metal
mounting ring. The QuickMount allows the device to be adjusted horizontally and vertically.
Attach the quick mount to the back of the device.
Attach the device to the pole and secure it with a provided steel clamp. Clamping diameter 35 – 70 mm.
Please avoid connecting a loose Ethernet cable to the Ethernet port, secure the cable to a wall or the pole, so that the cable weight is not pulling
the port. It is recommended to secure the Ethernet cable less than 2m from the device. This is to ensure that the cable doesn't damage the port
by its weight, or doesn't fall out.
We recommend using Cat6 shielded cables.
Warning! This equipment should be installed and operated with a minimum distance of 25 cm between the device and your body. Operation of this
equipment in the residential environment could cause radio interference.
Configuration
We recommend clicking the "Check for updates" button and updating your RouterOS software to the latest version to ensure the best performance and
stability. RouterOS includes many configuration options in addition to what is described in this document. We suggest visiting the RouterOS documentation
page to get yourself accustomed to the possibilities: .https://mt.lv/help
In case IP connection is not available, the Winbox tool ( ) can be used to connect to the MAC address of the device from the LAN side https://mt.lv/winbox
(all access is blocked from the internet port by default).
First-time configuration ;https://mt.lv/configuration
The device upgrade ;https://mt.lv/upgrade

MikroTik MANTBox 52 15s Specifications

General

Frequency band	2.4/5 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g
Antenna gain level (max)	15 dBi
Mounting	Pole
Antenna type	Sector antenna
Polarization	Dual polarization
Antenna connector type	-
Power consumption (max)	21 W
Operating temperature (T-T)	-30 - 70 °C
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85177100

Weight and Dimensions

Depth	140 mm
Width	348 mm
Height	82 mm
