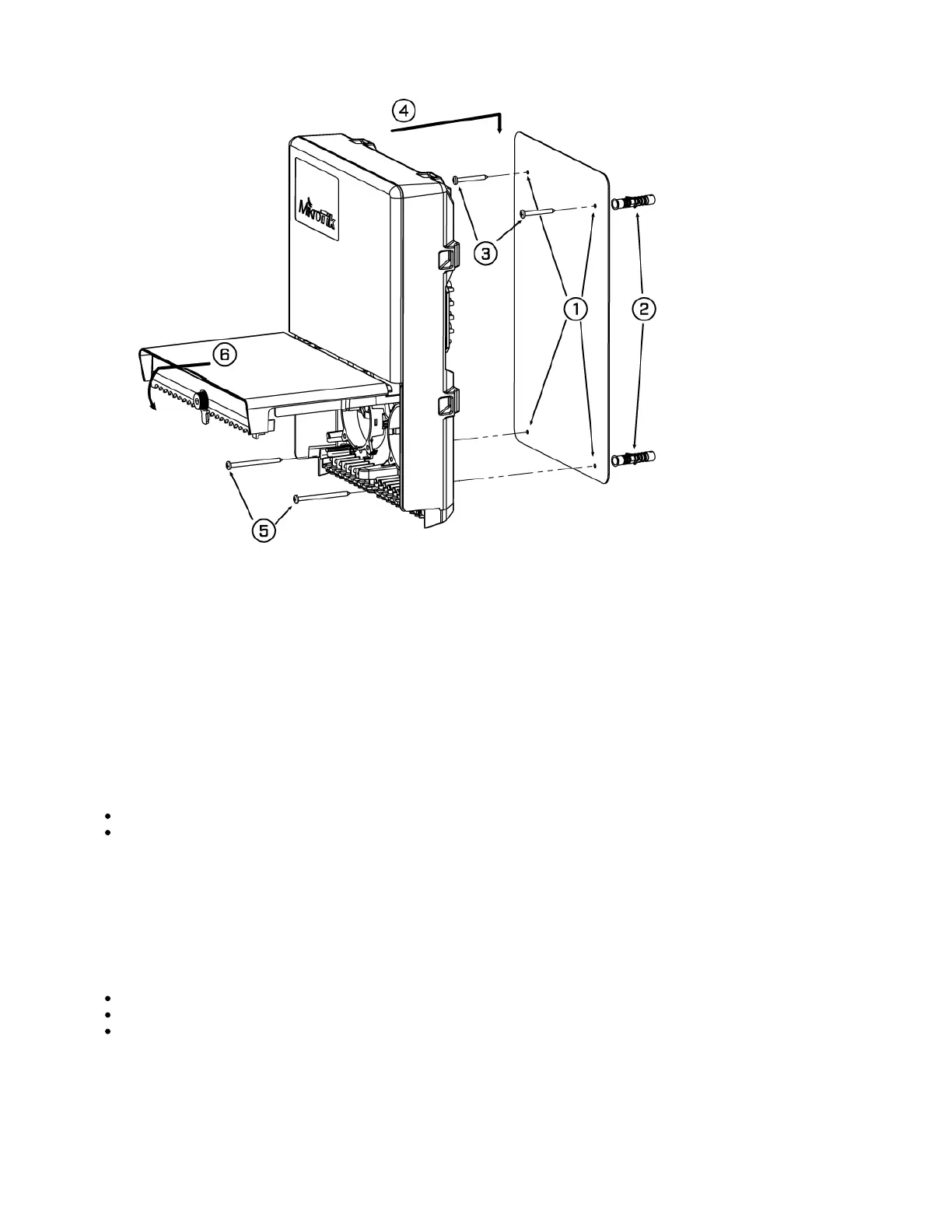

Use included a template to mark spots for drilling holes. Align accordingly, it will depend on how the device will be mounted finally.
Insert dowels if needed, depends on wall structure and material.
Insert screws and screw them by leaving approximately 1 cm out.
Attach the unit to the position.
Use screw holes under the bottom cover and tighten to secure in place. Extend your Ethernet cables through the openings and connect to
Ethernet ports.
Close bottom latch.
Carefully check the wall for electric cables before drilling mounting holes.
Buttons and jumpers
The RouterBOOT reset button has the following functions. Press the button and apply the power, then:
Release the button when the green LED starts flashing, to reset the SwOS configuration to defaults.
Release the button when the LED turns solid green to clear all configuration and bridge all interfaces.
Regardless of the above option used, the system will load the backup RouterBOOT loader if the button is pressed before power is applied to the device.
Useful for RouterBOOT debugging and recovery.
Accessories
The package includes the following accessories that come with the device:
Hose Clamp SUS304.
K-66 fastening set.
OED-drill-template, paper brochure.
Operating system support
The device supports SwOS software. Other operating systems have not been tested.
