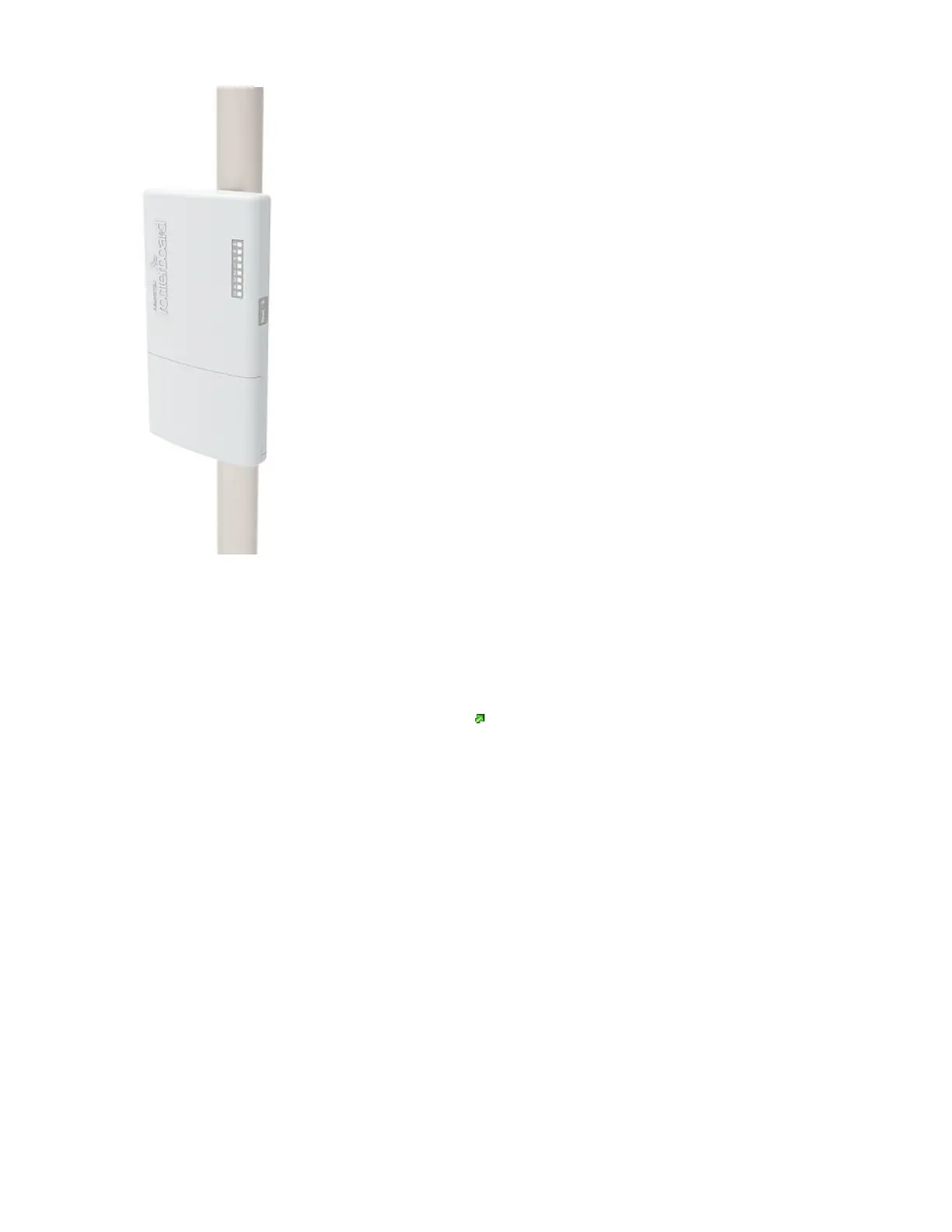

Please make sure to mount the device with the Ethernet ports facing down.
Booting process
We recommend clicking the "Check for updates" button and updating your RouterOS software to the latest version to ensure the best performance and
stability. RouterOS includes many configuration options in addition to what is described in this document. We suggest starting here to get yourself
accustomed to the possibilities: .https://mt.lv/help
In case an IP connection is not available, the Winbox tool ( ) can be used to connect to the MAC address of the device from the LAN https://mt.lv/winbox
side (all access is blocked from the internet port by default). For recovery purposes, it is possible to boot the device from the network, see section Buttons
and jumpers.
Extension Slots and Ports
CPU nominal frequency 800 MHz
Size of RAM 128 MB
Memory size 16 MB
10/100/1000 Ethernet ports 5
SFP 1
Switch chip model QCA8337
Dimensions 125 x 52 x 225 mm
Operating temperature -40°C .. +70°C tested
Power output
The device supports passive or standard 802.3at/af PoE input/output. Ethernet ports 2-5 can power other PoE-capable devices with the same voltage as
applied to the unit. Fewer power adapters and cables to worry about! It can power af/at mode B (4,5+)(7,8-) compatible devices if 48-57 V input voltage is
used. The maximum power output per port is 1 A, and 2 A total using input voltage 12-30 V. Using input voltage 31-57 V power limit per port is 450 mA.
Once Power Output is enabled in RouterOS, the Ethernet LED adds red color to it (green means Ethernet link is made, red means power but no link, red
and green both means there is link and power).
