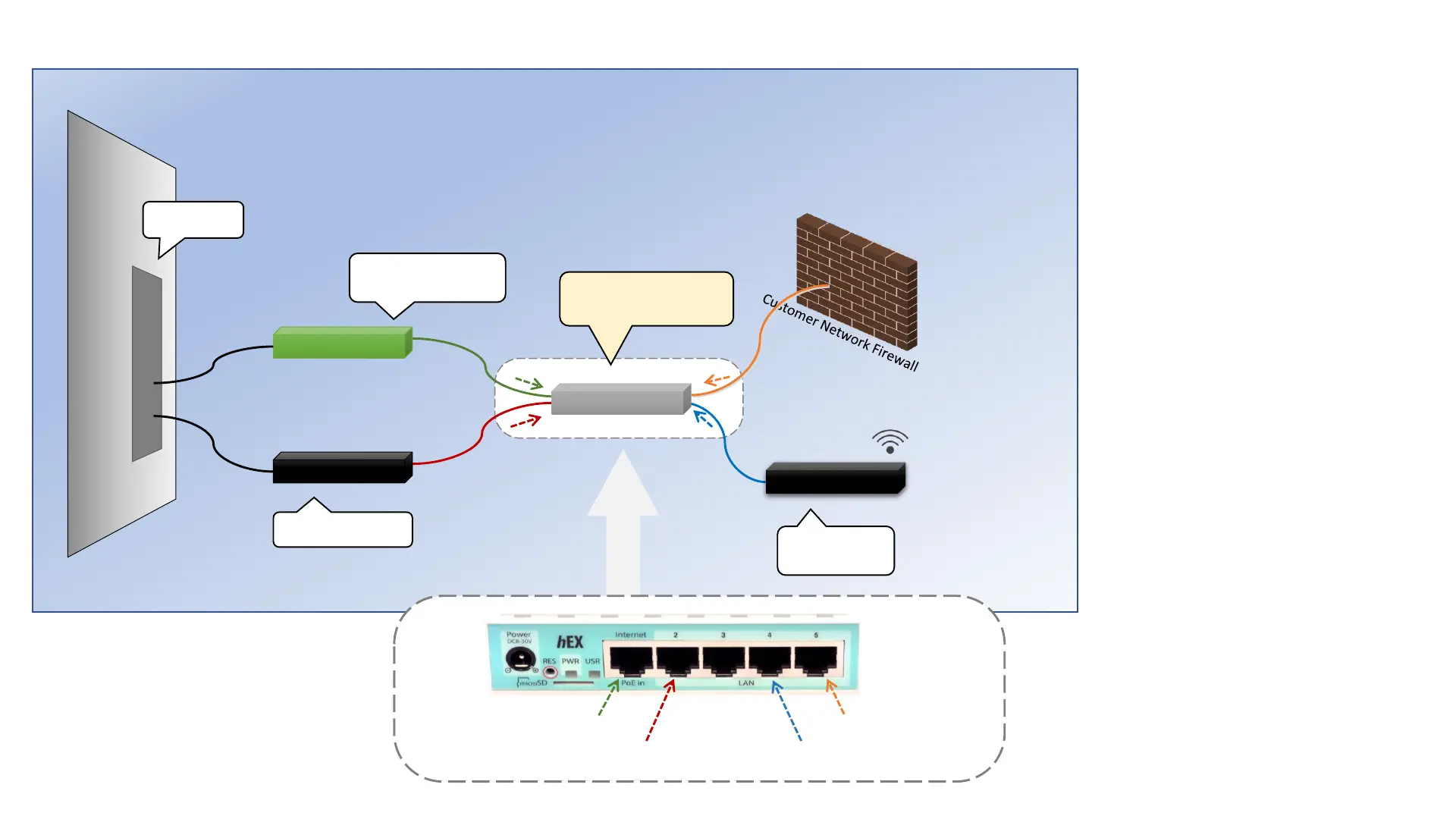

PureFiber Failover RouterBoard Port Diagram
Plug the Fiber ONT into port
ONE (Internet / PoE port) of
the Skyway RouterBoard.
Plug the ADSL or Cable
modem into port TWO of
the Skyway RouterBoard
Plug the Telus Actiontec WiFi
router into port FOUR of the
Skyway RouterBoard
Plug your network firewall
into port FIVE of the Skyway
RouterBoard
PureFiber ONT
ADSL (or Cable) Modem
Actiontec WiFi Router
Your network firewall
Fiber ONT
(Provided by Telus)
Skyway RouterBoard
Management Router
Actiontec
WiFi Router
Wall Jacks
DSL Modem
