1. Mounting the heater.
The heater should be monted in a well ventilated locker which should be dry and within 2 m etres of a suitable site for the exhaust
skin fitting. It should also give consideration to servicing and access for cleaning the glow plug.
MX40:

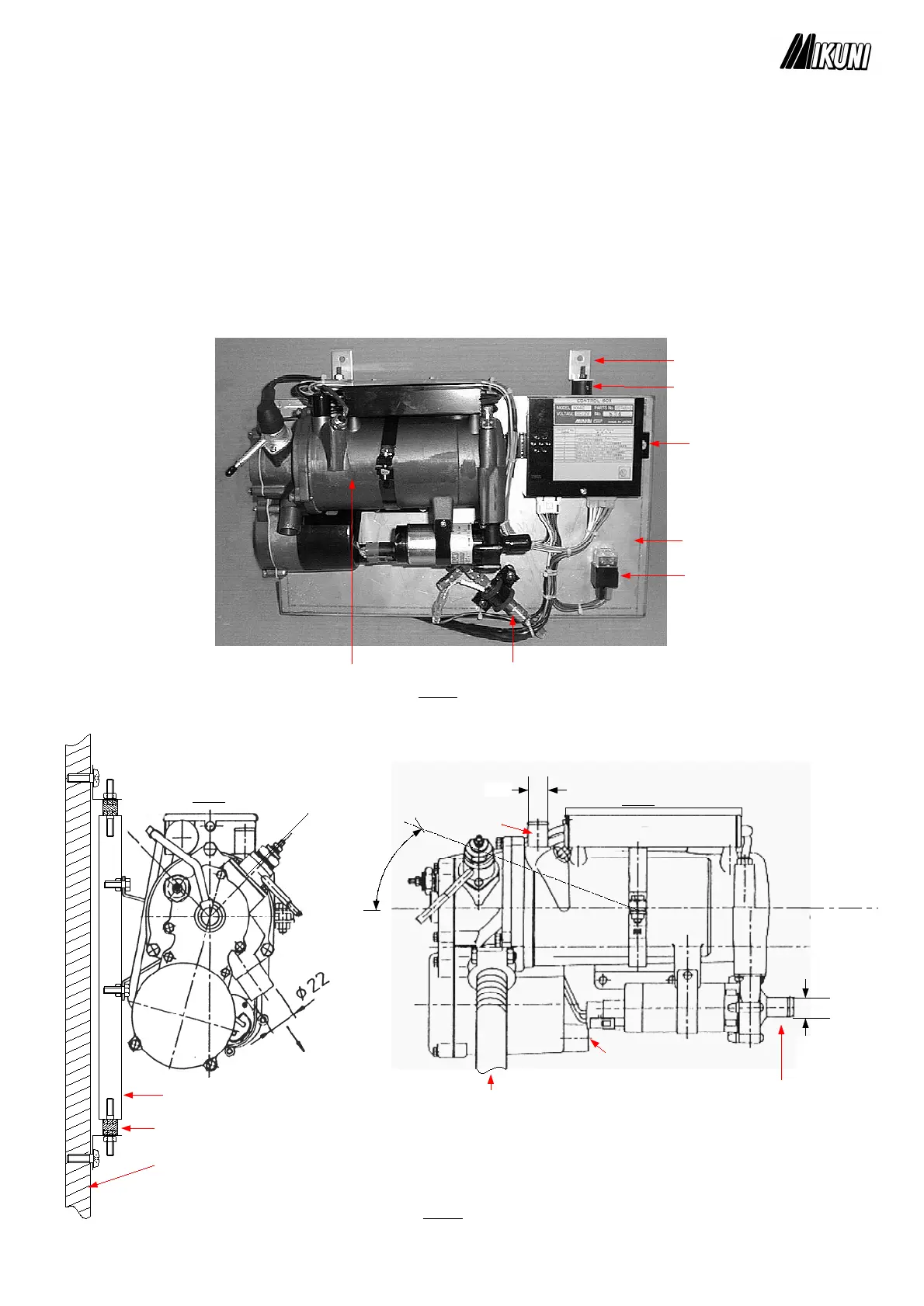

The MX40 is supplied mounted on a stainless steel 'plate' which incorporates the control box and fuel pump assy. The unit is pre-
wired and factory tested for ease of installation. The Anti-Vibration mounts and mounting brackets should be fixed to the mounting
plate as shown in Dia 2. The mounting plate should then be screwed to a vertical bulkhea d with the 4 x 3/4" No10 s/s self tapping
screws provided. Try and keep the horizontal axis as close to 0
o
as possible.
It is very important to mount the heater as shown in Dia 2. b elow for correct operation.
Note: The permissible inclination angles shown in Dia 2.
16mm
16mm
Combustion Air Inlet
Exhaust Pipe
Horizontal Axis
Water Inlet
Hot Water Outlet
Vertical Bulkhead
Mounting Plate
A.V. Mount
TOP
TOP
END VIEW FRONT VIEW
- 3 -
Dia 2.
Permissible longitudinal
inclination = 15
o
either
side of vertical
Mounting Plate
Fuse Holders
Control Box
Fuel Pump
Heater Body
Mounting Bracket
A.V. Mount
Dia 1.
20
o
Permissible Vertical
inclination.
To Next Page
