MX60:

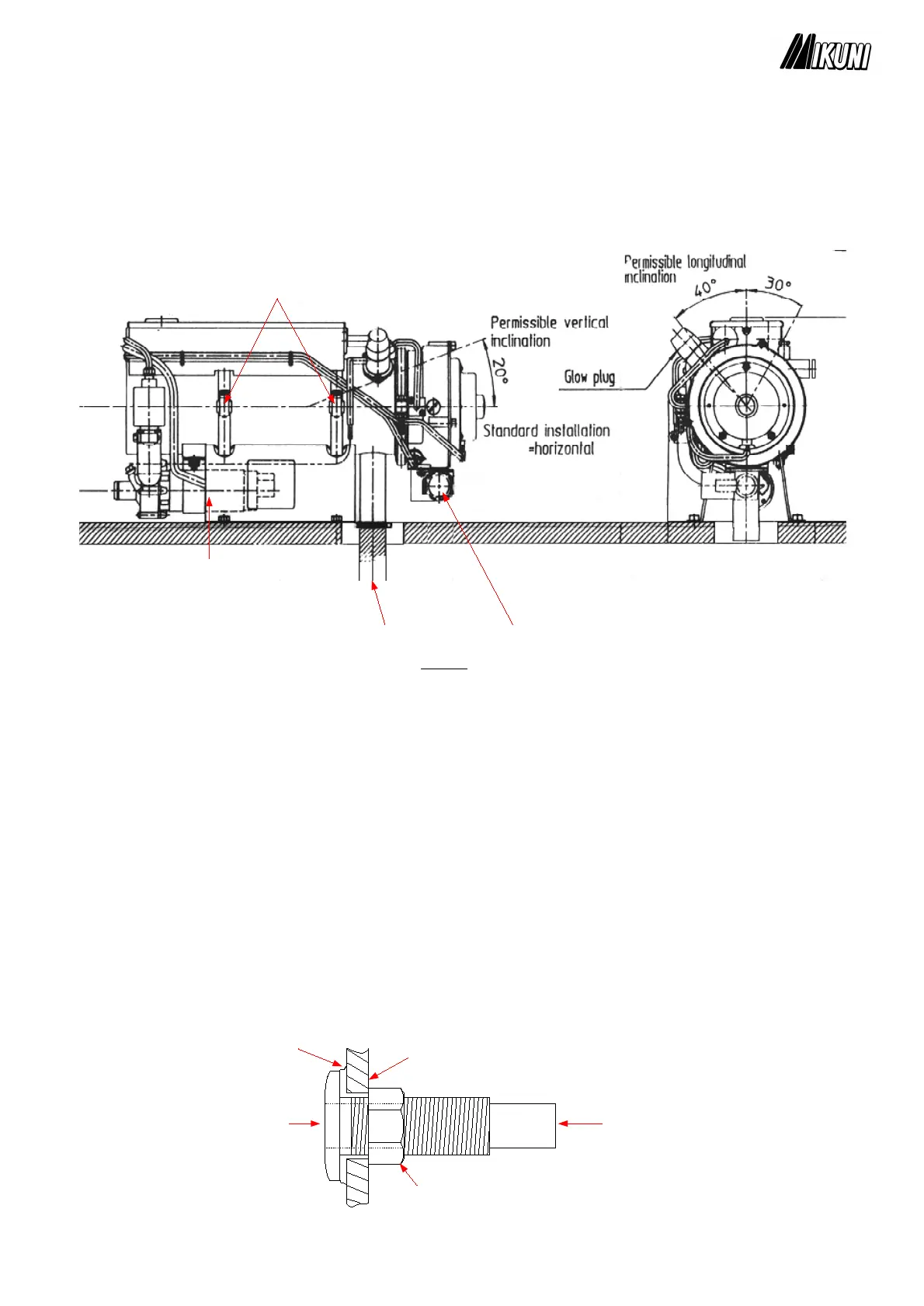

The MX60 is supplied on a mounting bracket which is best mounted on a horizontal surf ace as shown in Dia 3. If you want to mount
the heater on a vertical bulkhead it is possible to rotate the mounting bracket by r eleasing the 2 x hose clips marked 'A'.
The MX60 shown is Dia 3. is a 24 volt unit which has the water pump attached to the heat er body. The 12 volt MX60 has a seperate
water pump.
SIDE VIEW END VIEW
Exhaust pipe Combustion air inlet
Water pump
[fixed to heater on 24v model only].
Dia 3.
'A'.
If you mount the MX60 on a horizontal surface, mark the mounting screws and exhau st position with the template provided. Drill a
40mm clearance hole for the exhaust pipe and 4 x 7mm holes for the mounting bracket. Now fix heater in place with the 4 x
M6x25mm s/s set screws provided.
2. Exhaust system:
There are 2 types of exhaust fitting supplied with the MX40/MX60 heater units. The i nland waterways kits have a brass screw in
skin fitting whilst the 'offshore' kits have a polished stainless steel skin fitting. The exhaus t skin fitting needs to be fitted as far above
the water line as possible to prevent any ingress of water into the heater. An ideal place for the skin fitting is on the transom.
Brass Skin Fitting:
Once you have planned the siting, drill a 4mm pilot hole as guidance for the pilot drill o n the hole saw arbour. Now drill the correct
size hole: MX40=28mm MX60=35mm. When you have completed this apply silicon to the rear of the face and tighten the brass nut
to secure.
Silicon sealant
Transom
Securing Nut
Spigot for s/s exhaust
Exhaust Outlet
Brass Exhaust Terminal
- 4 -
