MIL'S MVX 2 - Dimensions for Pressure Reducing Valve Outlet

Particular maintenance instructions
AIRMIL'S G with SCREW compressors
Regulation by MILLENIUM control device

Page 9/20 08/2017 Manual N° 515910 version 12

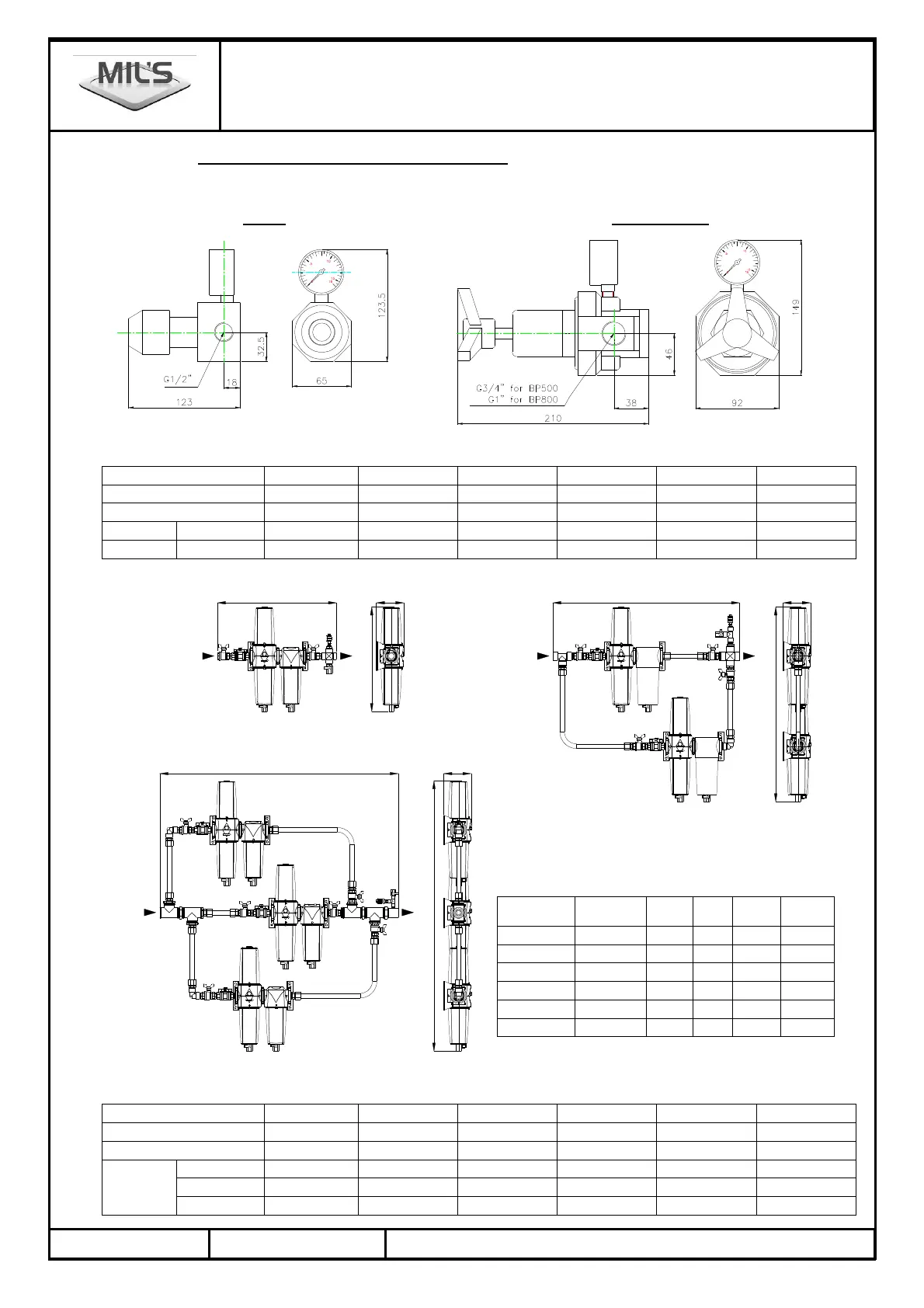

4.6. Dimensions for pressure reducing valve outlet
4.6.1. Pressure reducer alone
BP300 BP500 / BP800
 
4.6.2. Simple, parallel duplex and parallel triplex final filtration
CMP 53 S CMP 106 DP CMP 159 TP CMP 162 S CMP 324 DP CMP 486 TP
Flow rate at 9 bar (m³.h
-1
)
53 106 159 162 324 486
inlet / outlet diameter
1/2" 3/4" 3/4" 3/4" 1" 1"1/4
Composition
Filter CHA/MC 1 x CHA/MC48 2 x CHA/MC48 3 x CHA/MC48 1 x CHA/MC145 2 x CHA/MC145 3 x CHA/MC145
Filter PAR 1 x PAR72 2 x PAR72 3 x PAR72 1 x PAR217 2 x PAR217 3 x PAR217



R
O
R
9
R
9
O

R R
O
R
9
Simple version parallel duplex version
parallel triplex version


4.6.3. Simple, parallel duplex or parallel triplex release lines
DCMP 53 S DCMP 106 DP DCMP 159 TP DCMP 162 S DCMP 324 DP DCMP 486 TP
Flow rate at 9 bar (m³.h
-1
)
53 106 159 162 324 486
Inlet / outlet diameter
1/2" 3/4" 3/4" 3/4" 1" 1"1/4
Composition
Regulator 1 x BP300 2 x BP300 2 x BP300 1 x BP500 2 x BP500 2 x BP500
Filter CHA/MC 1 x CHA/MC48 2 x CHA/MC48 3 x CHA/MC48 1 x CHA/MC145 2 x CHA/MC145 3 x CHA/MC145
Filter PAR 1 x PAR72 2 x PAR72 3 x PAR72 1 x PAR217 2 x PAR217 3 x PAR217
A B C ØE
Weight
kg
CMP 53 S 492 447 110 1/2" 3
CMP 106 DP 778 752 110 3/4" 7
CMP 159 TP 864 1047 110 3/4" 11
CMP 162 S 577 506 135 3/4" 6.5
CMP 324 DP 904 941 135 1" 15
CMP 486 TP 1153 1306 135 1"1/4 22
.=
