Millenium MPS-500 USB Assembly Instructions

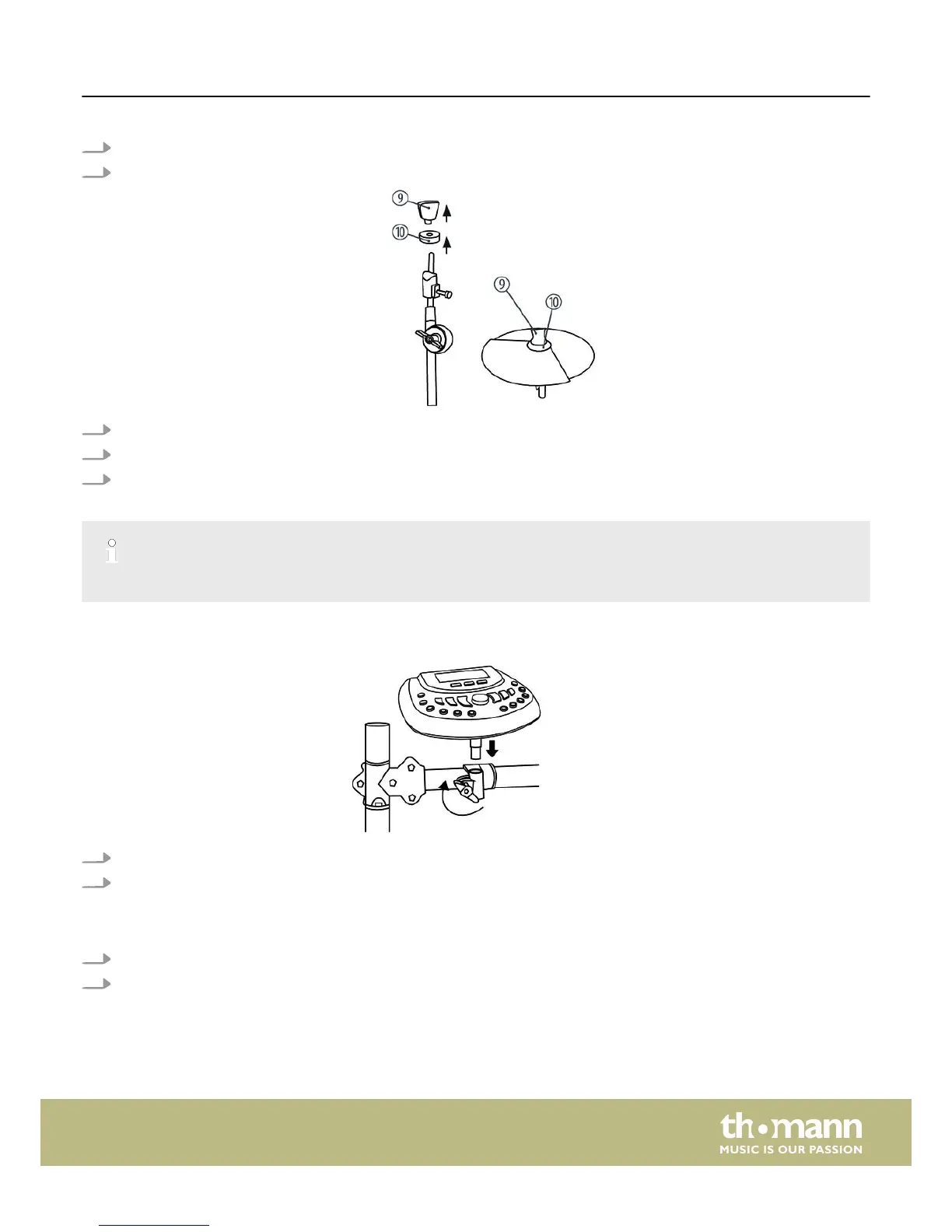

1. Put the three cymbal holders as shown into the designated terminals on the rack.
2. Tighten the screws of the terminals firmly and evenly.
3. Unscrew the wing nuts (9) from the cymbal holders and take the felt washers (10) off the holders.
4. Place the cymbals on their supports as illustrated.
5. Put the felt washers (10) on top of the cymbals, and secure the pads on their supports using the respective wing nuts (9).
Make sure that the connector block on the underside of the cymbals is not stuck to the cylinder bolt of the counter-holder.
Mounting the drum module on the rack
1. Put the drum module up to the stop into the empty terminal of the left side arm.
2. Align the module and tighten the wing nut of the terminal.
Mounting the bass pedal
1. Snap the two metal rods into the holes provided on the frame of the pedal.
2. Place the beater into the hole provided on the rotary head of the kick drum pedal and tighten the clamp with the drum key
firmly.
Assembly
MPS-500 USB
9
